Location Display With Idiotware Shield

In this project, I am going to demonstrate how to display location using the ESP8266 wifi module.

IntermediateFull instructions provided2 hours1,629
Location Display With Idiotware Shield

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
idIoTware Shield
idIoTware Shield
×1
ESP8266 ESP-01
Espressif ESP8266 ESP-01
×1
Generic Jumper (0.1")
Generic Jumper (0.1")
×1
USB-A to B Cable
USB-A to B Cable
×1
9V 1A Switching Wall Power Supply
9V 1A Switching Wall Power Supply
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

idiotware-shield

Code

location_Display

Arduino
/*
              Location Display
   In this example we are using ESP8266 wifi module and OLED display
 to display location using your IP address.

*/



#include "U8glib.h"
#include <ELClient.h>
#include <ELClientRest.h>
char buff[32];
String location = "";
U8GLIB_SSD1306_128X64 u8g(U8G_I2C_OPT_NONE|U8G_I2C_OPT_DEV_0);
// Initialize a connection to esp-link using the normal hardware serial port both for
// SLIP and for debug messages.
ELClient esp(&Serial, &Serial);

// Initialize a REST client on the connection to esp-link
ELClientRest rest(&esp);
int x=0;
boolean wifiConnected = false;

// Callback made from esp-link to notify of wifi status changes
// Here we print something out and set a global flag
void wifiCb(void *response)
    {
      ELClientResponse *res = (ELClientResponse*)response;
      if (res->argc() == 1)
         {
           uint8_t status;
           res->popArg(&status, 1);

           if(status == STATION_GOT_IP)
             {
               Serial.println("WIFI CONNECTED");  //Wifi gets connected at this place
               wifiConnected = true;
             }
           else
             {
                u8g.firstPage();
              do { u8g.setFont(u8g_font_timB10);
                   u8g.drawStr(1,13,"WIFI DISCONNECTED!!");
                 } while( u8g.nextPage() );
               Serial.print("WIFI NOT READY: ");//Wifi not connected,check connection
               Serial.println(status);
               wifiConnected = false;


             }
         }
    }

void setup()
    {
      Serial.begin(9600);   // the baud rate here needs to match the esp-link config
      Serial.println("EL-Client starting!");

      u8g.setColorIndex(1);
      // Sync-up with esp-link, this is required at the start of any sketch and initializes the
      // callbacks to the wifi status change callback. The callback gets called with the initial
      // status right after Sync() below completes.
      esp.wifiCb.attach(wifiCb); // wifi status change callback, optional (delete if not desired)
      bool ok;
      do
       {
         ok = esp.Sync();      // sync up with esp-link, blocks for up to 2 seconds
         if (!ok) Serial.println("EL-Client sync failed!");
       } while(!ok);
      Serial.println("EL-Client synced!");

      // Get immediate wifi status info for demo purposes. This is not normally used because the
      // wifi status callback registered above gets called immediately.
      esp.GetWifiStatus();
      ELClientPacket *packet;
      if((packet=esp.WaitReturn()) != NULL)
        {
          Serial.print("Wifi status: ");
          Serial.println(packet->value);
        }

      // Set up the REST client to talk to idiotware.herokuapp.com, this doesn't connect to that server,
      // it just sets-up stuff on the esp-link side
      int err = rest.begin("idiotware.herokuapp.com");
      if(err != 0)
        {
          Serial.print("REST begin failed: ");
          Serial.println(err);
          while(1) ;
        }
      Serial.println("EL-REST ready");

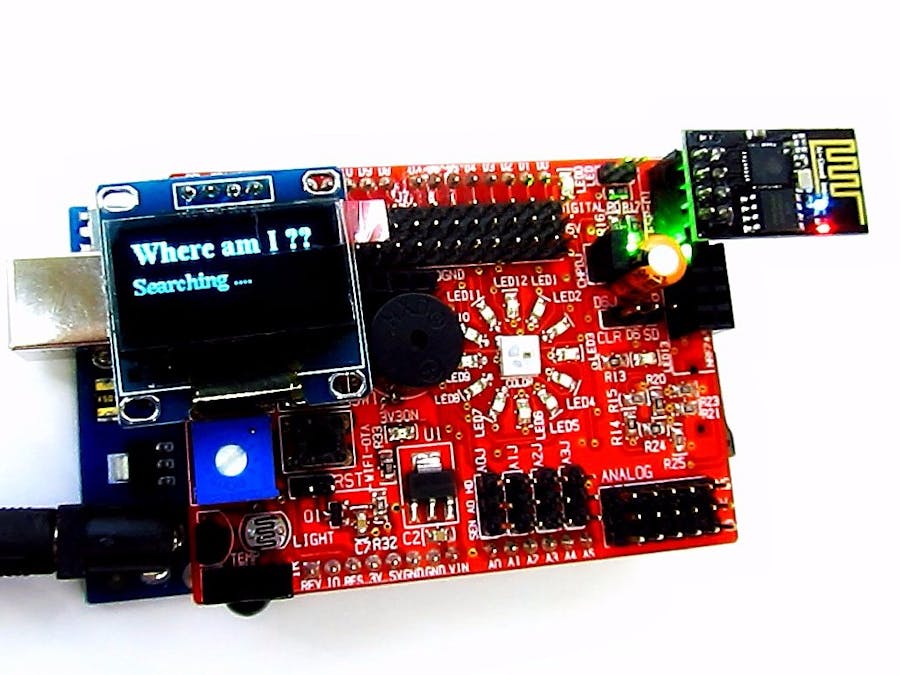

      u8g.firstPage();
              do { u8g.setFont(u8g_font_timB14);
                   u8g.drawStr(1,20,"Where am I ??");
                   u8g.setFont(u8g_font_timB10);
                   u8g.drawStr(1,40,"Searching");
                   u8g.drawStr(65,40,"....");

                 } while( u8g.nextPage() );
     // delay(2000);

      get_Location();

    }

void loop()
    {

    }


void get_Location()
    {
      sprintf(buff, "/getCityCountryByIP");
           // process any callbacks coming from esp_link
      esp.Process();


      // if we're connected make an HTTP request
      if(wifiConnected)
        {
          // Request /utc/now from the previously set-up server
          rest.get((const char*)buff);

          char response[20];
          uint16_t code = rest.waitResponse(response, 20);
          if(code == HTTP_STATUS_OK)     //check for response for HTTP request
            {
              Serial.println("ARDUINO: GET successful:");
              location = response;
              int commaPositon = location.indexOf(',');
              String city= "";
              city=location.substring(0, commaPositon);  //copy city from recived location to variable city
              String countryCode = "";
              countryCode=location.substring(commaPositon+2);//copy country code from recived location to variable countryCode

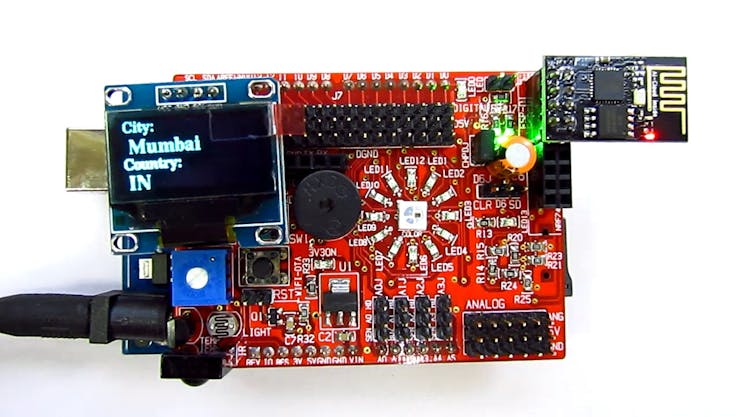

              u8g.firstPage();
              do { u8g.setFont(u8g_font_timB10);
                   u8g.drawStr(1,10,"City:");
                   u8g.setFont(u8g_font_timB14);
                   u8g.setPrintPos(5, 30);
                   u8g.print(city);
                   u8g.setFont(u8g_font_timB10);
                   u8g.drawStr(1,45,"Country:");
                   u8g.setFont(u8g_font_timB14);
                   u8g.setPrintPos(5, 64);
                   u8g.print(countryCode);
                 } while( u8g.nextPage() );
            }
          else
            {
              Serial.print("ARDUINO: GET failed: ");
              Serial.println(code);
            }
          delay(5000);
        }

    }
