Kuman TFT 3.5 RetroPie 2018

UPDATED SOME LINKS AND STEPS(PICTURES MIGHT BE OUTDATED)

Like Manuel said

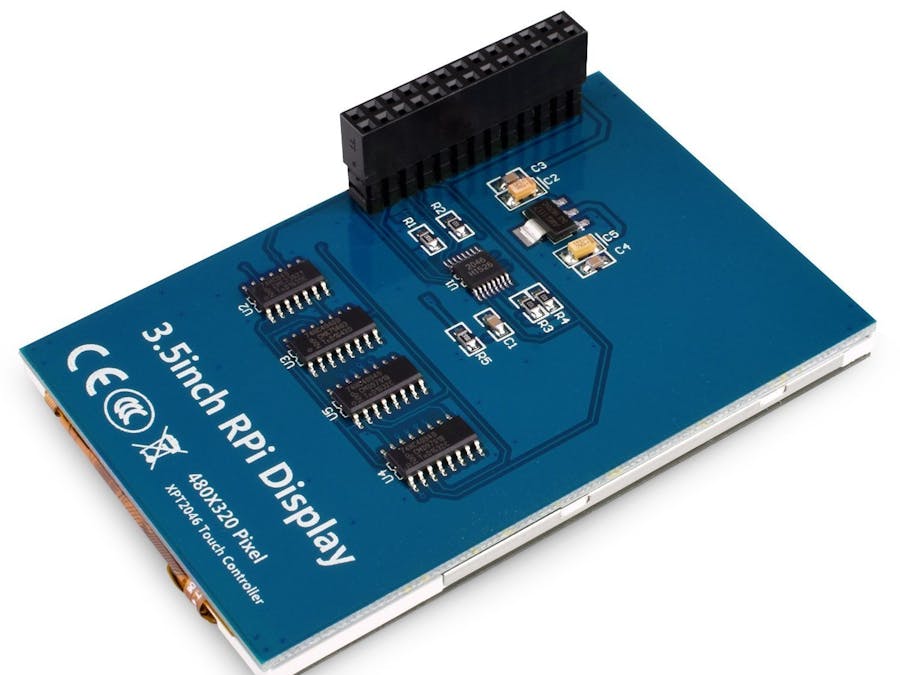

Understanding that many people have problems configuring their Kuman TFT display on the Raspberry Pi together with RetroPie, I have decided to make this step-by-step of how to install the Kuman TFT 3.5" display which you can connect directly to the GPIO ports of the Raspberry Pi and run your applications. A lot of people have been buying this Kuman display from Amazon and other online markets for its economical price but it is not an easy display to install for certain applications, compared to other displays that come with integrated HDMI ports that will surely be a lot easier to manipulate and start working. If you want to see original post, click here.

Connect to the Raspberry Pi via SSH or directly with keyboard and HDMI monitor

There are a lot of places to find out how to do this. I assume that you already have connected so I will continue from here. First, you should be seeing something like this screen:

• Make sure you have space available.
• If you have your RetroPie in a USB device remember to expand filesystem.
• Make sure you are connected to Internet.

First Step: Download all things needed

curl https://raw.githubusercontent.com/adafruit/Raspberry-Pi-Installer-Scripts/master/pitft-fbcp.sh

And

git clone https://github.com/goodtft/LCD-show.git

Second Step: Make executable

cd LCD-show
 sudo chmod +x LCD35-show
 sudo chmod +x LCD-hdmi

The "sudo chmod +x LCD-hdmi" Is in case you have to go back to HDMI defaults

Third Step: Execute

sudo bash pitft-fbcp.sh

Select 4

----- 1 ----- 90

----- n ----- select no to console settings

Select Y for HDMI mirror

DO NOT REBOOT!!!!!!!! N

Execute driver

cd LCD-show
sudo ./LCD35-show

Fourth Step: Fix screen lag

sudo nano /boot/config.txt

The previous command will open the RetroPie configuration file where in the end you have to look for something like SPEED and FPS and change the values to something like:

dtoverlay=tft35a,speed=62000000,fps=40
#dtoverlay=ads7846,cs=1,penirq=17,penirq_pull=2,speed=25000000,fps=20,keep_vref$
gpu_mem_256=128
gpu_mem_512=256
gpu_mem_1024=256
overscan_scale=1

To close, press ctrl+x.

Then select yes and press enter twice.

sudo reboot

Wait for reboot and you will be done!!!

If you need to go back to HDMI screen settings:

cd LCD-show
sudo ./LCD-hdmi

After this command, it will reboot and you should see again in HDMI screen only.
