School cafeteria's trash can upgrade project Lv.1

Trashcan project.

BeginnerWork in progress667
School cafeteria's trash can upgrade project Lv.1

Things used in this project

Hardware components

Arduino Nano R3
Arduino Nano R3
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Code

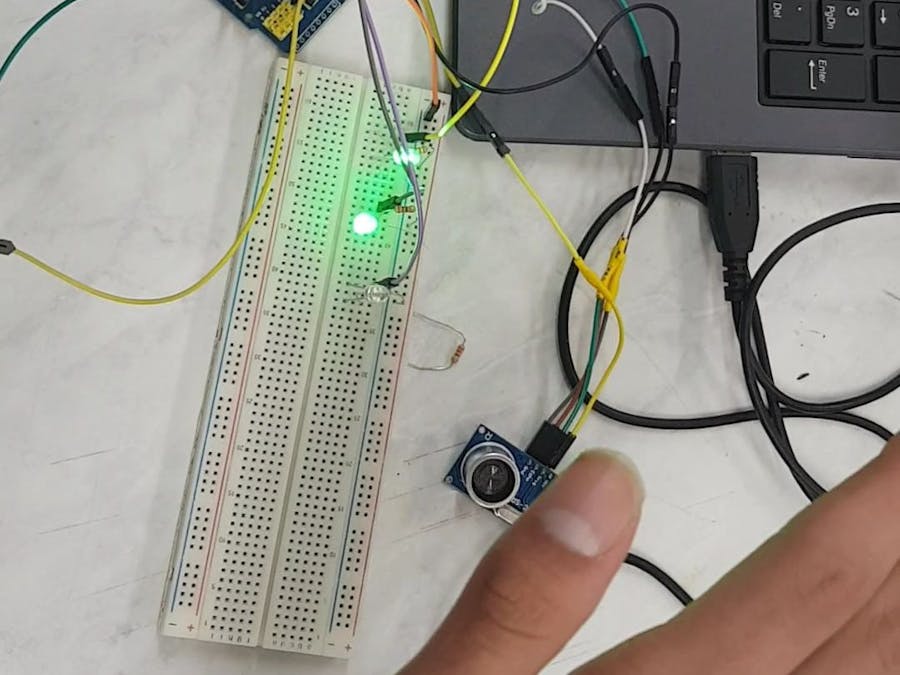

Use Ultrasonic sensors

C#
int trigPin = 9;







int echoPin = 8;







int led = 7;



int led2 = 6;



int led3 = 5;



int led4 = 4;



long distance;







long duration;















void setup() {







Serial.begin(9600);







pinMode(trigPin, OUTPUT);







pinMode(echoPin, INPUT);



pinMode (led,OUTPUT);



pinMode (led2,OUTPUT);



pinMode (led3,OUTPUT);



pinMode (led4,OUTPUT);











}



void loop() {







  ultra();



  // put your main code here, to run repeatedly:







Serial.println(distance);















if (distance<=5){



 digitalWrite(led,HIGH);



  digitalWrite(led2,HIGH);



  digitalWrite(led3,HIGH);



  digitalWrite(led4,HIGH);

delay(100);

}







 if (distance<=12){



 digitalWrite(led,HIGH);



  digitalWrite(led2,HIGH);



  digitalWrite(led3,HIGH);



  digitalWrite(led4,LOW);

delay(10);

}



if (distance<=21){



 digitalWrite(led,HIGH);



  digitalWrite(led2,HIGH);



  digitalWrite(led3,LOW);



  digitalWrite(led4,LOW);

delay(10);

}



if (distance<=30){



 digitalWrite(led,HIGH);



  digitalWrite(led2,LOW);



  digitalWrite(led3,LOW);



  digitalWrite(led4,LOW);



delay(10);

}



if (distance<=35){
 digitalWrite(led,LOW);
  digitalWrite(led2,LOW);
  digitalWrite(led3,LOW);
  digitalWrite(led4,LOW);

delay(100);

}



else {digitalWrite(led,LOW);
 digitalWrite(led2,LOW);
  digitalWrite(led3,LOW);
   digitalWrite(led4,LOW);
}
}







void ultra(){
// Clears the trigPin
digitalWrite(trigPin, LOW);
delayMicroseconds(2);
// Sets the trigPin on HIGH state for 10 micro seconds
digitalWrite(trigPin, HIGH);
delayMicroseconds(10);
digitalWrite(trigPin, LOW);
// Reads the echoPin, returns the sound wave travel time in microseconds
duration = pulseIn(echoPin, HIGH);
// Calculating the distance
distance= duration*0.034/2;
}
