Control Things connected to Intel Galileo Gen 2 via AWS IoT

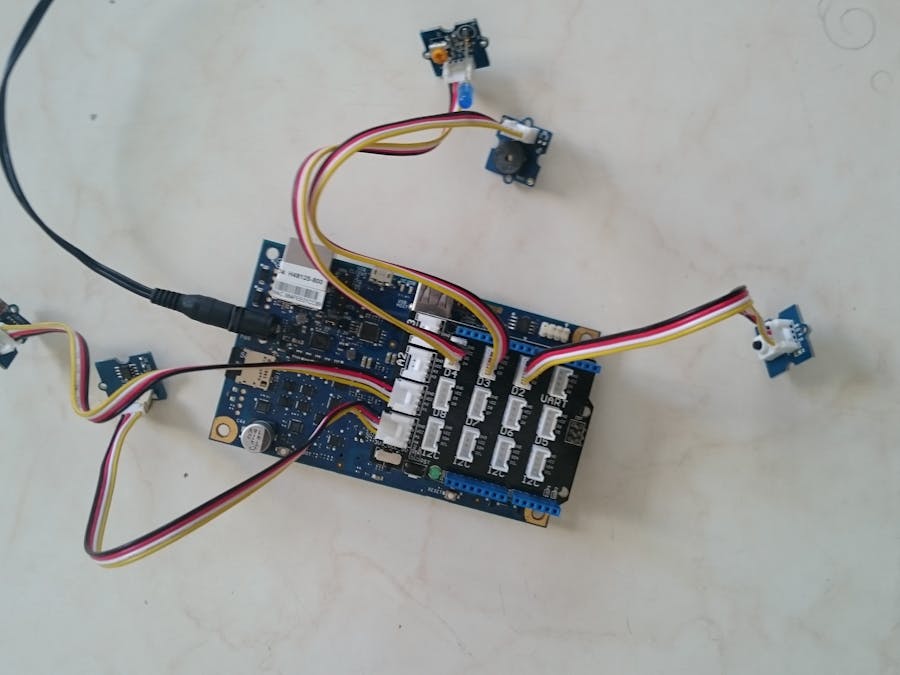

The projects demos controlling various things (components) connected to Intel Galileo by simply posting MQTT messages from AWS IoT console.

IntermediateProtip4,281
Control Things connected to Intel Galileo Gen 2 via AWS IoT

Things used in this project

Hardware components

Seeed Studio Grove starter kit plus – Intel IoT Edition for Intel Galileo Gen 2 and Edison
×1
Grove starter kit plus for Intel Edison
Seeed Studio Grove starter kit plus for Intel Edison
×1

Software apps and online services

AWS IoT
Amazon Web Services AWS IoT

Story

Read more

Schematics

Schematics

The schematics explains the connection without the Grove shield.

Code

connectToAWS.js

JavaScript
Node JS file to register the device to the AWS IoT Thing
var awsIot = require('aws-iot-device-sdk');

var myThingName = 'intel_galileo';

var thingShadows = awsIot.thingShadow({
   keyPath: './cert/6cf88b301c-private.pem.key',   // path of private key - change the name accourding to your key name
  certPath: './cert/6cf88b301c-certificate.pem.crt', // path of certificate - change the name accourding to your cert name
    caPath: './cert/rootCA.pem',  // path of root file
  clientId: myThingName,
    region: 'us-west-2'  // your region
});

mythingstate = {
  "state": {
    "reported": {
      "LocalIP": "unknown"
    }
  }
}

var networkInterfaces = require( 'os' ).networkInterfaces( );
mythingstate["state"]["reported"]["LocalIP"] = networkInterfaces['enp0s20f6'][0]['address'];


// json data for dynamoDB
var msg = "{\"key\":\"value\"}";

thingShadows.on('connect', function() {
  console.log("Connected...");
  console.log("Registering...");
  thingShadows.register( myThingName );

  // An update right away causes a timeout error, so we wait about 2 seconds
  setTimeout( function() {
    console.log("Updating my IP address...");
    clientTokenIP = thingShadows.update(myThingName, mythingstate);
    console.log("Update:" + clientTokenIP);
  }, 2500 );


  // Code below just logs messages for info/debugging
  thingShadows.on('status',
    function(thingName, stat, clientToken, stateObject) {
       console.log('received '+stat+' on '+thingName+': '+
                   JSON.stringify(stateObject));
    });

  thingShadows.on('update',
      function(thingName, stateObject) {
         console.log('received update '+' on '+thingName+': '+
                     JSON.stringify(stateObject));
      });

  thingShadows.on('delta',
      function(thingName, stateObject) {
         console.log('received delta '+' on '+thingName+': '+
                     JSON.stringify(stateObject));
      });

  thingShadows.on('timeout',
      function(thingName, clientToken) {
         console.log('received timeout for '+ clientToken)
      });

  thingShadows
    .on('close', function() {
      console.log('close');
    });
  thingShadows
    .on('reconnect', function() {
      console.log('reconnect');
    });
  thingShadows
    .on('offline', function() {
      console.log('offline');
    });
  thingShadows
    .on('error', function(error) {
      console.log('error', error);
    });


});

controlThings.py

Python
Python file to control the things connected to the Intel Galileo Board via AWS IoT MQTT
import paho.mqtt.client as mqtt #make sure you have installed mqtt client library for python
import ssl
import json
import time
import thread

#defining necessary pins
led = 4
buzzer = 3
button = 2

#Importing Intel Galileo Official UPM Library
import pyupm_grove as grove

# Create the temperature sensor object using AIO pin 0
temp = grove.GroveTemp(0)

# Create the light sensor object using AIO pin 0
light = grove.GroveLight(1)

# make sure python wiring x86 library is installed.
# Import the GPIOEdison class from the wiringx86 module.
from wiringx86 import GPIOGalileoGen2 as GPIO
gpio = GPIO()

gpio.pinMode(led, gpio.OUTPUT)
gpio.pinMode(buzzer , gpio.PWM)
gpio.pinMode(button, gpio.INPUT)

#defining topics
servoTopic  = "things/servo"
ledTopic    = "things/led"
buttonTopic = "things/button"
buzzerTopic = "things/buzzer"
tempTopic   = "things/temp"
potTopic    = "things/pot"
lightTopic    = "things/light"


def on_connect(client, userdata, flags, rc):
    print("Connected with result code "+str(rc))
    client.subscribe(servoTopic)
    client.subscribe(ledTopic)
    client.subscribe(buzzerTopic)
    client.subscribe("topic/test")
    print("Subscribed to Necessary Topics")

def on_message(client, userdata, msg):
    print "Message Topic :" + str(msg.topic)
    print "Message :" + str(msg.payload)
    if str(msg.topic) == ledTopic:
	blinkLED(str(msg.payload))
    elif str(msg.topic) == buzzerTopic:
	soundBuzzer(str(msg.payload))


def blinkLED(msg):
    jsonData = json.loads(msg)
    print jsonData
    for x in range(0,(jsonData['loopFor'])):
        gpio.digitalWrite(led, gpio.HIGH)
        time.sleep(jsonData['Period'])
        gpio.digitalWrite(led, gpio.LOW)
        time.sleep(jsonData['Period'])
    print "Blink LED Done"

def soundBuzzer(msg):
    jsonData = json.loads(msg)
    print jsonData
    gpio.analogWrite(buzzer, jsonData['PWM'])
    time.sleep(jsonData['Period'])
    gpio.analogWrite(buzzer, 0)
    print "Sound Buzzer Done"


client = mqtt.Client()
client.on_connect = on_connect
client.on_message = on_message
client.tls_set(ca_certs='./cert/rootCA.pem', certfile='./cert/6cf88b301c-certificate.pem.crt', keyfile='./cert/6cf88b301c-private.pem.key', tls_version=ssl.PROTOCOL_SSLv23)
client.tls_insecure_set(True)
client.connect("A1K6TUOC3TPQ8H.iot.us-west-2.amazonaws.com", 8883, 60) #Taken from REST API endpoint



#Publishing Analog Values to AWS
def publishTemp(Dummy):
	while (1):
		celsius = temp.value()
		fahrenheit = celsius * 9.0/5.0 + 32.0;
		tempJsonObject = json.dumps("{'Temp in Celsius':" + str(celsius)  + "}")
		client.publish(tempTopic, payload=tempJsonObject , qos=0, retain=False)
		print "%d degrees Celsius, or %d degrees Fahrenheit.. Published to AWS" % (celsius, fahrenheit)
		#Wait for Five second
		time.sleep(5)

def publishLight(Dummy):
	while (1):
		print "Raw Light Value: " + str(light.raw_value() )
		lightJsonObject = json.dumps("{'Raw Light Value':" + str(light.raw_value() )  + "}")
		client.publish(lightTopic, payload=lightJsonObject , qos=0, retain=False)
		#Wait for Five second
		time.sleep(5)

def buttonPress(Dummy):
	while(1):
		#print "In Loop"
		if gpio.digitalRead(button) == 1:
			print "Button Pressed"
			client.publish(buttonTopic, payload="Button Pressed" , qos=0, retain=False)


thread.start_new_thread(publishTemp,("publishTempThread",))
thread.start_new_thread(publishLight,("publishLightThread",))
thread.start_new_thread(buttonPress,("publishbuttonThread",))


client.loop_forever() #MQTT's will never end
