WormGear Mechanism Test

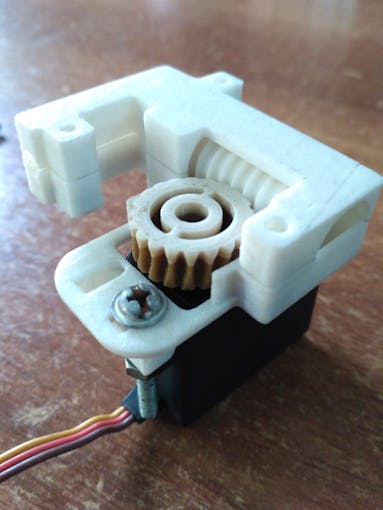

Design and testing of WormGear Mechanism Fitted over servo motor.

EasyFull instructions provided4 hours1,386
WormGear Mechanism Test

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Servo Motor Towerpro SG-5010
×1
M3 Allen Head Bolt
×3
M4 Nut and Bolt(>10mm length)
×4

Software apps and online services

Arduino IDE
Arduino IDE
Fusion 360
Autodesk Fusion 360

Hand tools and fabrication machines

3D Printer (generic)
3D Printer (generic)
Magnetic ScrewDriver

Story

Read more

Custom parts and enclosures

Upper Section

Lower Section

circular gear

linear gear

Spacer

Schematics

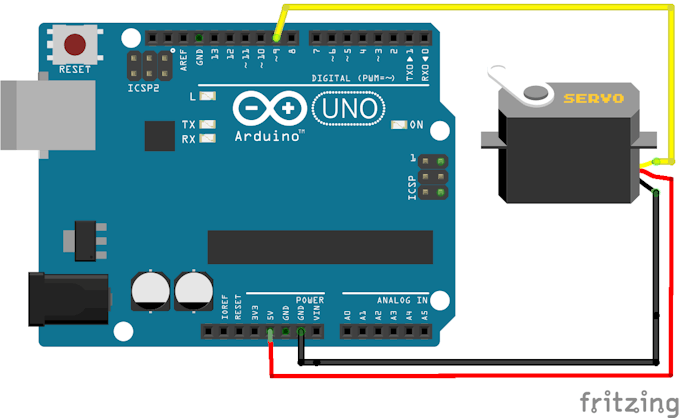

Arduino and Servo Connection

Arduino servo bb b3surip0gf

Code

Test code

Arduino
#include <Servo.h>

Servo myservo;  // create servo object to control a servo
                // twelve servo objects can be created on most boards

int pos = 60,angle=25;    // variable to store the servo position

void setup()
{
  myservo.attach(9);  // attaches the servo on pin 9 to the servo object
}

void loop()
{

    //translate angular motion of servo to, forward and backward linear motion with wormgear
    myservo.write(pos+angle);
    delay(10000);

    myservo.write(pos-angle);
    delay(10000);

}
