R2D2 - Weather Assistant

R2D2 will connect to the particle.io IoT cloud and display the outside temperature so I can dress my kids weather appropriate.

EasyShowcase (no instructions)915
R2D2 - Weather Assistant

Things used in this project

Hardware components

Photon
Particle Photon
×2
PIR Motion Sensor (generic)
PIR Motion Sensor (generic)
×1
Buzzer
Buzzer
×1
SERIAL OLED SCREEN,0.96"
×1
Resistor 1k ohm
Resistor 1k ohm
×3
5 mm LED: Red
5 mm LED: Red
×2
Waterproof Plastic Sealed Electric Junction Box Case 158mmx90mmx60mm
×1
PG9 White Plastic Waterproof Cable Glands Joints
×1
Digital Temperature Sensor - DS18B20
×1

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

Photon 1 - Outside

This Photon reads the outside temperature and sends it to the particle.io cloud.
Photon1 wire diagram

Photon 2 - R2D2 Controller

This Photon monitors motion and when triggered displays the temperature.

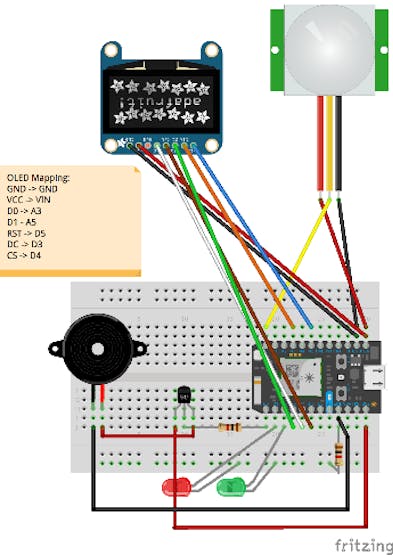

Photon2 wire diagram
