Smart Temperature Sensor

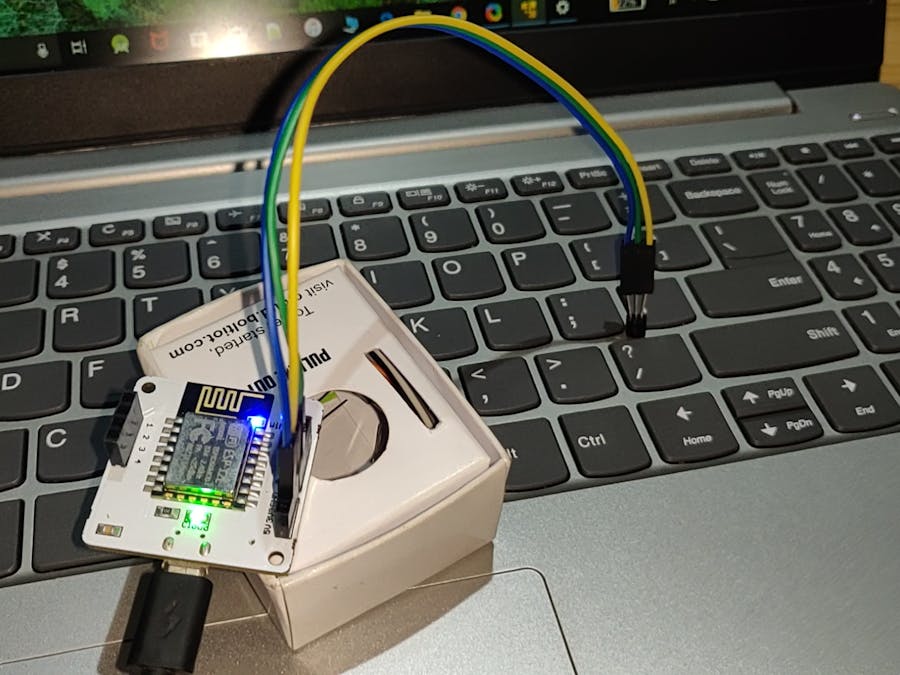

Connect a temperature sensor (LM35) to the Bolt IoT platform.

IntermediateProtip5 hours504
Smart Temperature Sensor

Things used in this project

Hardware components

Bolt WiFi Module
Bolt IoT Bolt WiFi Module
×1
Linear Regulator with Adjustable Output
Linear Regulator with Adjustable Output
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

SMS Messaging API
Twilio SMS Messaging API
Ubuntu
Ubuntu

Story

Read more

Code

ANOMALY DETECTION

Python
ANAOMALY DETECTION IN PYTHON LOGIN AND SIGNUP USING TWILLO
import conf, json, time, math, statistics
from boltiot import Sms, Bolt
def compute_bounds(history_data,frame_size,factor):
    if len(history_data)<frame_size :
        return None

    if len(history_data)>frame_size :
        del history_data[0:len(history_data)-frame_size]
    Mn=statistics.mean(history_data)
    Variance=0
    for data in history_data :
        Variance += math.pow((data-Mn),2)
    Zn = factor * math.sqrt(Variance / frame_size)
    High_bound = history_data[frame_size-1]+Zn
    Low_Bound = history_data[frame_size-1]-Zn
    return [High_bound,Low_Bound]

mybolt = Bolt(conf.API_KEY, conf.DEVICE_ID)
sms = Sms(conf.SSID, conf.AUTH_TOKEN, conf.TO_NUMBER, conf.FROM_NUMBER)
history_data=[]

while True:
    response = mybolt.analogRead('A0')
    data = json.loads(response)
    if data['success'] != '1':
        print("There was an error while retriving the data.")
        print("This is the error:"+data['value'])
        time.sleep(10)
        continue

    print ("This is the value "+data['value'])
    sensor_value=0
    try:
        sensor_value = int(data['value'])
    except Exception as e:
        print("There was an error while parsing the response: ",e)
        continue

    bound = compute_bounds(history_data,conf.FRAME_SIZE,conf.MUL_FACTOR)
    if not bound:
        required_data_count=conf.FRAME_SIZE-len(history_data)
        print("Not enough data to compute Z-score. Need ",required_data_count," more data points")
        history_data.append(int(data['value']))
        time.sleep(10)
        continue

    try:
        if sensor_value > bound[0] :
            print ("The light level increased suddenly. Sending an SMS.")
            response = sms.send_sms("Someone turned on the lights")
            print("This is the response ",response)
        elif sensor_value < bound[1]:
            print ("The light level decreased suddenly. Sending an SMS.")
            response = sms.send_sms("Someone turned off the lights")
            print("This is the response ",response)
        history_data.append(sensor_value)
    except Exception as e:
        print ("Error",e)
    time.sleep(10)

CONFIGURATION

Python
CONFIGURATION
SSID = 'You can find SSID in your Twilio Dashboard'
AUTH_TOKEN = 'You can find  on your Twilio Dashboard'
FROM_NUMBER = 'This is the no. generated by Twilio. You can find this on your Twilio Dashboard'
TO_NUMBER = 'This is your number. Make sure you are adding +91 in beginning'
API_KEY = 'This is your Bolt Cloud account API key'
DEVICE_ID = 'This is the ID of your Bolt device'
FRAME_SIZE = 10
MUL_FACTOR = 6
