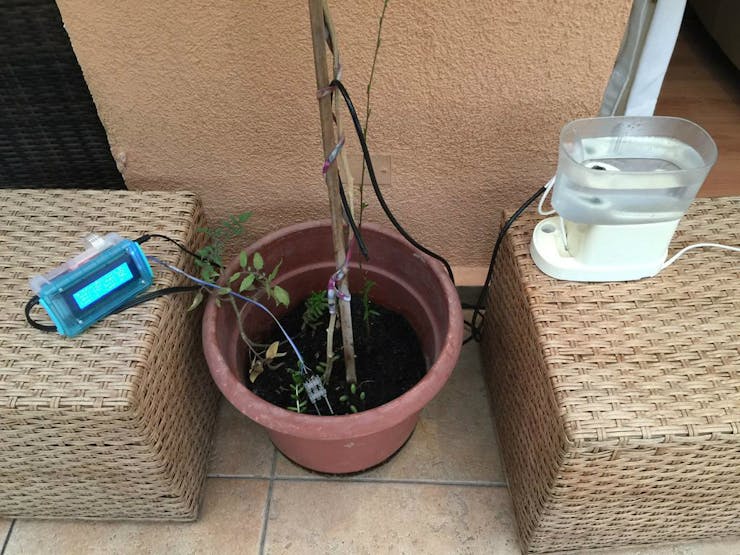

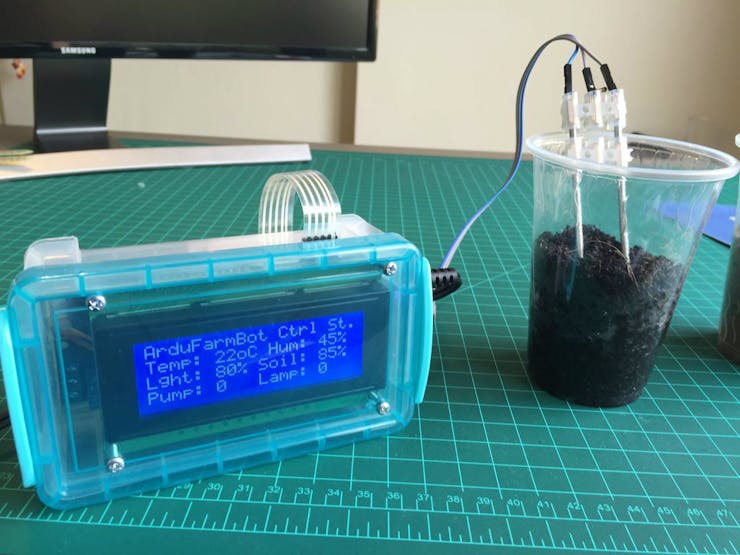

ArduFarmBot: Controlling a Tomato Home Farm using Arduino...

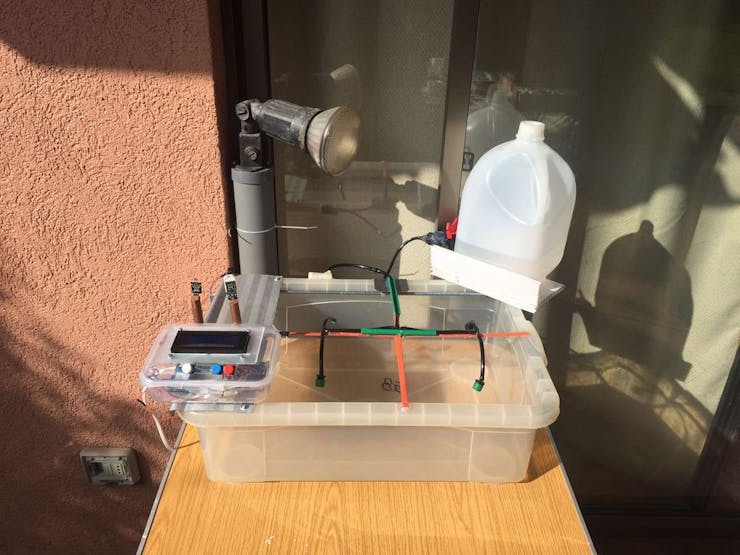

Let's control a plantation, using real data as temperature, relative air humidity, luminosity and soil moisture.

IntermediateFull instructions provided10 hours7,871
ArduFarmBot: Controlling a Tomato Home Farm using Arduino...

Things used in this project

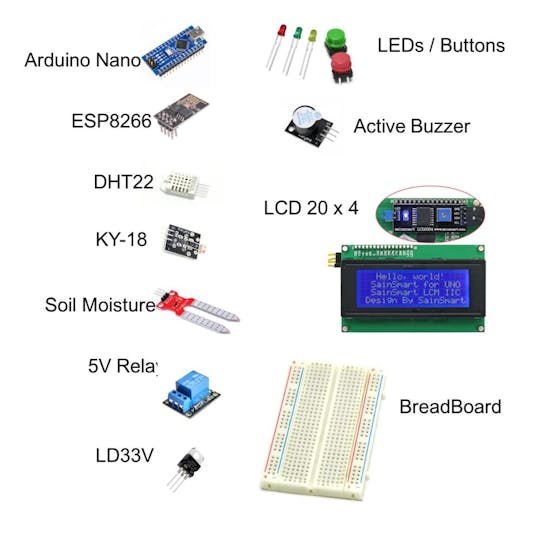

Hardware components

Arduino Nano R3
Arduino Nano R3
×1
ESP8266 ESP-01
Espressif ESP8266 ESP-01
×1
DHT22 Temperature Sensor
DHT22 Temperature Sensor
×1
ky18 - LDR Sensor
×1
Hydrometer
×2
Relay (generic)
×2
lcd 4X20
×1
Pushbutton switch 12mm
SparkFun Pushbutton switch 12mm
×3
LED (generic)
LED (generic)
×3

Software apps and online services

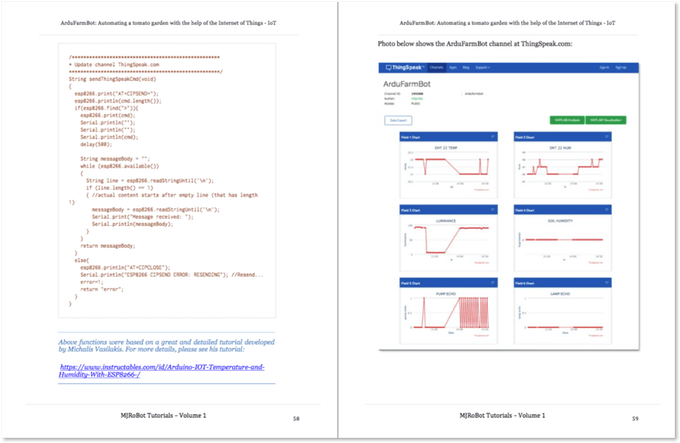

ThingSpeak API
ThingSpeak API

Story

Read more

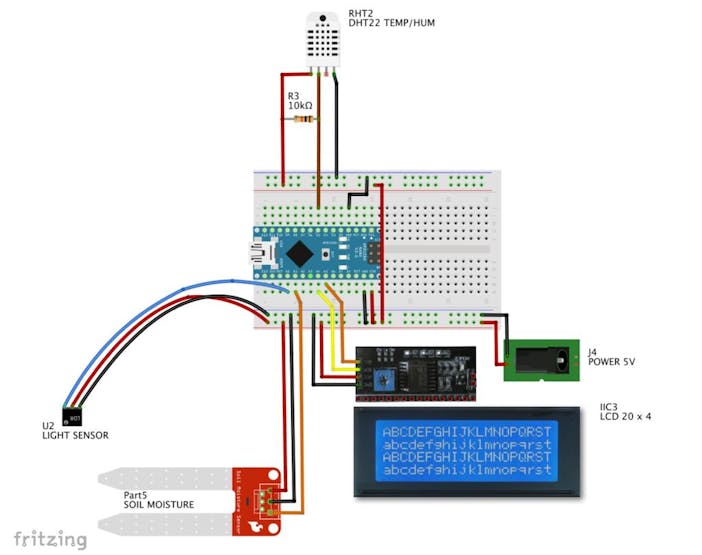

Schematics

ArduFarmBot

Code

Code snippet #1

Plain text

/****************************************************************

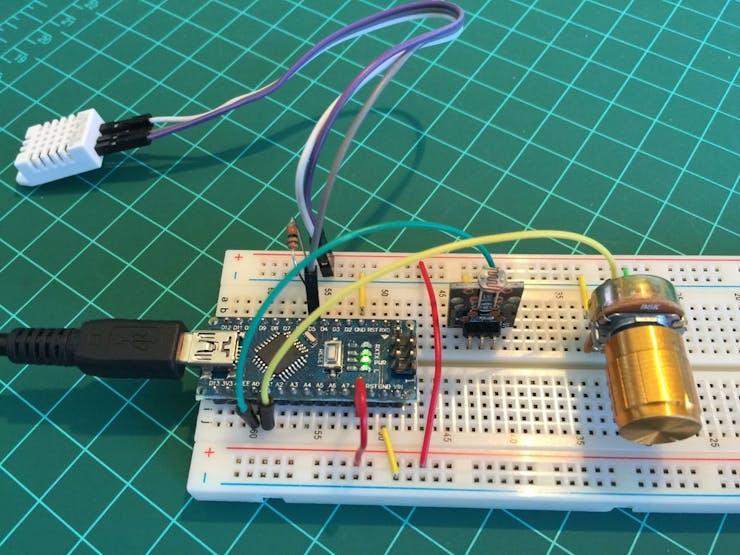

 * DHT Sensor - Setup and Test
 * Based on the original code written by ladyada, public domain
 * MJRoBot 21Aug16
 ****************************************************************/
// Include DHT Library
#include <DHT.h>

// Sensor defiitions
#define DHTPIN 5        // DHT data pin connected to Arduino pin 5
#define DHTTYPE DHT22   // DHT 22 (if your sensor is the DHT 11, only change this line by: #define DHTTYPE DHT11)

// Variables to be used by Sensor
float tempDHT; // on the final program we will use int insteady of float. No need for high precision measurements
float humDHT;
float hic; // only used here for testing purposes

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup()
{
  Serial.begin(9600);
  Serial.println("DHT 22 Setup & Test");
  dht.begin();
}

void loop()
{
  // Wait a few seconds between measurements.
  delay(2000);

  //Read temperature and humidity values from DHT sensor:
  tempDHT = dht.readTemperature();
  humDHT = dht.readHumidity();

  // Check if any reads failed and exit early (to try again).
  if (isnan(humDHT) || isnan(tempDHT))
  {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Compute heat index in Celsius (isFahreheit = false)
  float hic = dht.computeHeatIndex(tempDHT, humDHT, false);

  // Show measurements at Serial monitor:
  Serial.print("   Temp DHT ==> ");
  Serial.print(tempDHT);
  Serial.print("oC  Hum DHT ==> ");
  Serial.print(humDHT);
  Serial.print("%  Heat index: ");
  Serial.print(hic);
  Serial.println(" oC ");
}

Code snippet #2

Plain text
int getLumen(int anaPin)
{
  int anaValue = 0;
  for(int i = 0; i < 10; i++) // read sensor 10X ang get the average
  {
    anaValue += analogRead(anaPin);
    delay(50);
  }

  anaValue = anaValue/10; //Light under 300; Dark over 800
  anaValue = map(anaValue, 1023, 0, 0, 100); //LDRDark:0  ==> light 100%

  return anaValue;
}

Code snippet #3

Plain text
/****************************************************

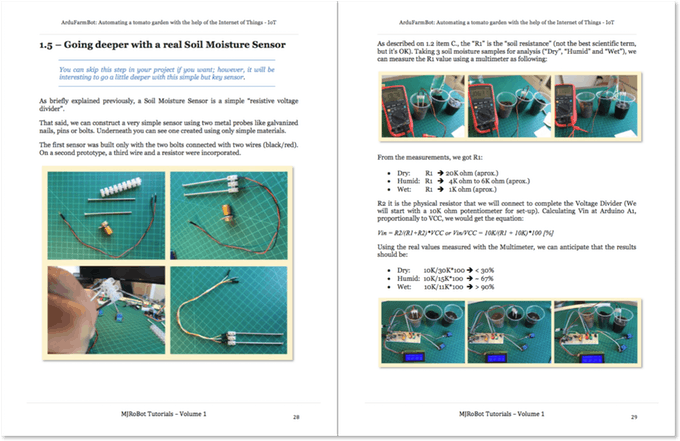

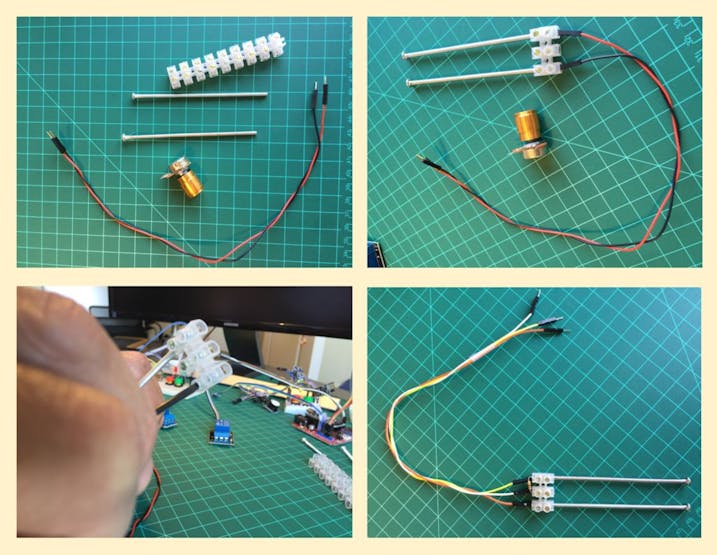

Soil Moisture Sensor Test
****************************************************/
#define SOIL_MOIST_PIN 1 // used for Soil Moisture Sensor Input
#define SMS_VCC 7
#define SMS_GND 6

int soilMoist; // analogical value obtained from sensor

void setup ()
{
  Serial.begin(9600);
  pinMode(SMS_VCC,OUTPUT);
  pinMode(SMS_GND,OUTPUT);

}

void loop (void)
{
  soilMoist = getSoilMoisture();
  Serial.print("Soil Moisture: ")
  Serial.print(soilMoist)
  Serial.println(" %")
}

/***************************************************
* Capture soil Moisture data
****************************************************/
int getSoilMoisture()
{
  int anaValue;

  digitalWrite(SMS_VCC,LOW);   // drive a current through the divider in one direction
  digitalWrite(SMS_GND,HIGH);
  delay(1000);   // wait a moment for capacitance effects to settle
  anaValue=analogRead(SOIL_MOIST_PIN);

  digitalWrite(SMS_VCC,HIGH);   // reverse the current
  digitalWrite(SMS_GND,LOW);
  delay(1000);   // give as much time in 'reverse' as in 'forward'
  digitalWrite(SMS_VCC,LOW);   // stop the current

  anaValue = map(anaValue, 1023, 0, 0, 100);
  return anaValue;
}

Code snippet #4

Plain text
void readSensors(void)
{
  tempDHT = dht.readTemperature();   //Read temperature and humidity values from DHT sensor:
  humDHT = dht.readHumidity();
  lumen = getLumen(LDR_PIN);
  soilMoist = getSoilMoist();
}

Code snippet #5

Plain text

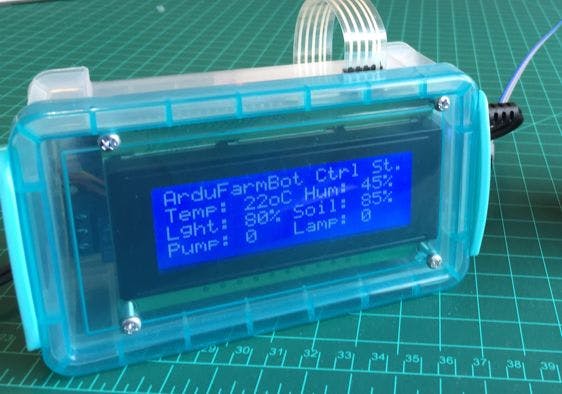

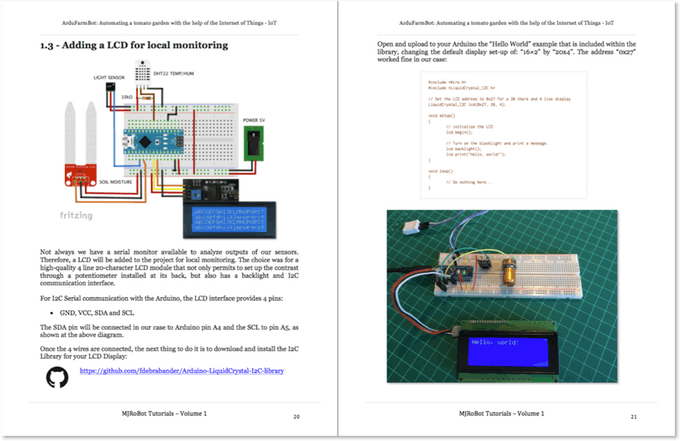

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Set the LCD address to 0x27 for a 20 chars and 4 line display
LiquidCrystal_I2C lcd(0x27, 20, 4);

void setup()
{
	// initialize the LCD
	lcd.begin();

	// Turn on the blacklight and print a message.
	lcd.backlight();
	lcd.print("Hello, world!");
}

void loop()
{
	// Do nothing here...
}

Code snippet #6

Plain text
/****************************************************************
* Read local commands (Pump and Lamp buttons are normally "HIGH"):
****************************************************************/
void readLocalCmd()
{
  int digiValue = debounce(PUMP_ON);
  if (!digiValue)
  {
    pumpStatus = !pumpStatus;
    showDataLCD();
    aplyCmd();
  }

  digiValue = debounce(LAMP_ON);
  if (!digiValue)
  {
    lampStatus = !lampStatus;
    showDataLCD();
    aplyCmd();
  }
}

Code snippet #7

Plain text
/***************************************************

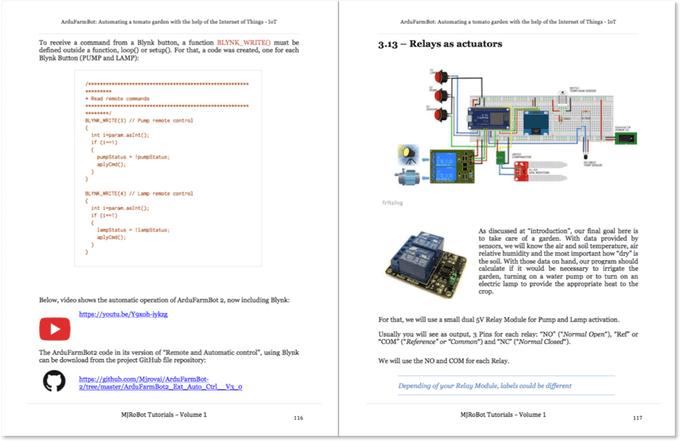

* Receive Commands and act on actuators
****************************************************/

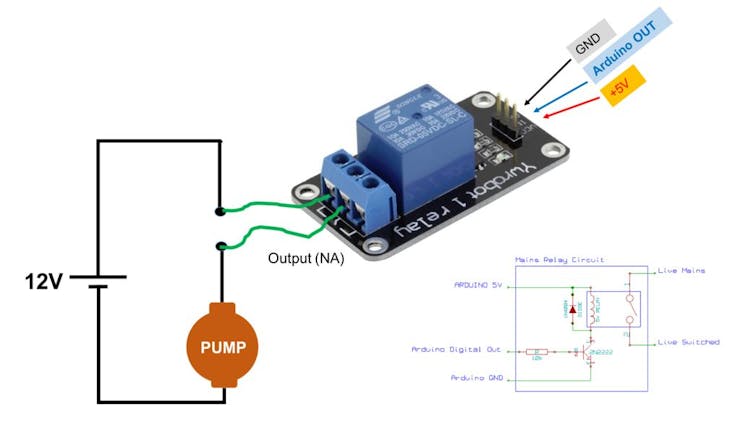

void aplyCmd()
{
    if (pumpStatus == 1) digitalWrite(PUMP_PIN, HIGH);
    if (pumpStatus == 0) digitalWrite(PUMP_PIN, LOW);

    if (lampStatus == 1) digitalWrite(LAMP_PIN, HIGH);
    if (lampStatus == 0) digitalWrite(LAMP_PIN, LOW);
}

Code snippet #8

Plain text
/****************************************************************
* Read local commands (Pump and Lamp buttons are normally "HIGH"):
****************************************************************/
void readLocalCmd()
{
  int digiValue = debounce(PUMP_ON);
  if (!digiValue)
  {
    pumpStatus = !pumpStatus;
    showDataLCD();
    aplyCmd();
  }

  digiValue = debounce(LAMP_ON);
  if (!digiValue)
  {
    lampStatus = !lampStatus;
    showDataLCD();
    aplyCmd();
  }

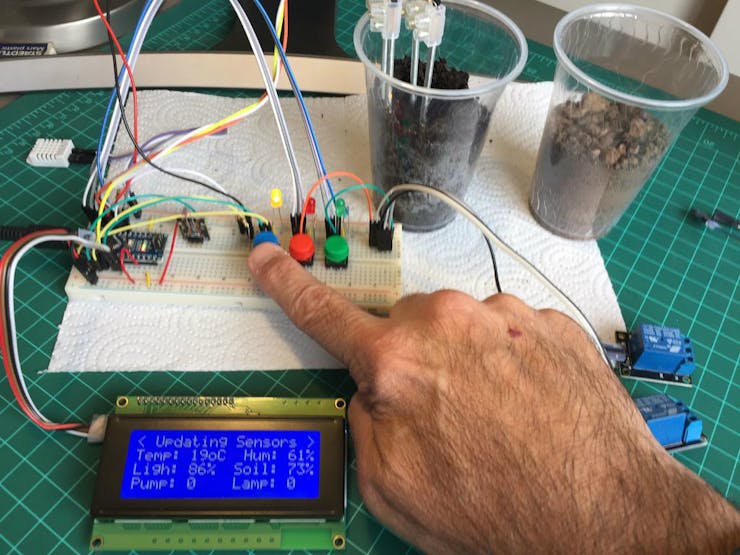

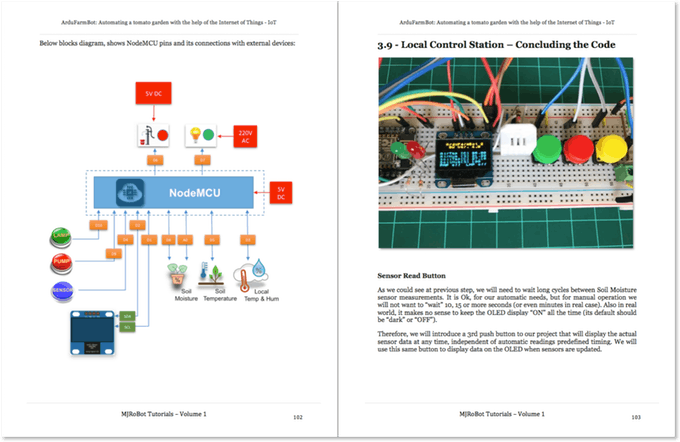

  digiValue = debounce(SENSORS_READ);
  if (!digiValue)
  {
    digitalWrite(YELLOW_LED, HIGH);
    lcd.setCursor (0,0);
    lcd.print("< Updating Sensors >");
    readSensors();
    digitalWrite(YELLOW_LED, LOW);
  }
}

Code snippet #9

Plain text
/***************************************************
* Capture soil Moisture data
****************************************************/
int getSoilMoist()
{
  int i = 0;
  int anaValue1 = 0;
  int anaValue2 = 0;
  for(i = 0; i < numSamplesSMS; i++) // // "numSamplesSMS" defines number of samples of each reading cycle
  {
    digitalWrite(SMS_VCC,LOW);   // drive a current through the divider in one direction
    digitalWrite(SMS_GND,HIGH);
    delay(500);   // wait a moment for capacitance effects to settle
    anaValue1 += analogRead(SOIL_MOIST_1_PIN);
    delay(500);   // wait a moment for ADC settle-up
    anaValue2 += analogRead(SOIL_MOIST_2_PIN);

    digitalWrite(SMS_VCC,HIGH);   // reverse the current
    digitalWrite(SMS_GND,LOW);
    delay(1000);   // give as much time in 'reverse' as in 'forward'
    digitalWrite(SMS_VCC,LOW);   // stop the current
    //delay (3000);
  }

  anaValue1 = anaValue1/(i);
  anaValue2 = anaValue2/(i);
  if (numSM == 2) anaValue1 = (anaValue1+anaValue2)/2; // "numSM" variable, defines number of moisture sensors that are connected

  anaValue1 = map(anaValue1, 1015, 3, 0, 100); //1015:0 (en el air) ==> 003:100% (poniendo un "short circuit)
  Serial.println(anaValue1);
  return anaValue1;
}

Code snippet #10

Plain text
void loop()
{
  // Start timer for measurements
  elapsedTime = millis()-startTiming;

  readLocalCmd(); //Read local button status
  showDataLCD();

  if (elapsedTime > (sampleTimingSeconds*1000))
  {
    readSensors();
    autoControlPlantation();
    startTiming = millis();
  }
}

Code snippet #11

Plain text
//--------------------------------- PUMP ------//
  if (soilMoist < DRY_SOIL && lumen > DARK_LIGHT)
  {
    if (soilMoistAlert == HIGH)
    {
      soilMoistAlert = LOW;
      turnPumpOn();
    }
    else soilMoistAlert = HIGH;
  }
  else soilMoistAlert = LOW;

Code snippet #12

Plain text
/***************************************************
* TurnPumOn
****************************************************/
void turnPumpOn()
{
  digitalWrite(PUMP_PIN, HIGH);
  pumpStatus = 1;
  showDataLCD();
  delay (timePumpOn*1000);
  digitalWrite(PUMP_PIN, LOW);
  pumpStatus = 0;
  showDataLCD();
}

Code snippet #14

Plain text
/***************************************************
* Automatically Control the Plantation based on sensors reading
****************************************************/
void autoControlPlantation()
{
//--------------------------------- PUMP ------//
  if (soilMoist < DRY_SOIL && lumen > DARK_LIGHT)
  {
    if (soilMoistAlert == HIGH)
    {
      soilMoistAlert = LOW;
      turnPumpOn();
    }
    else soilMoistAlert = HIGH;
  }
  else soilMoistAlert = LOW;

//--------------------------------- HEAT ------//
  if (tempDHT < COLD_TEMP && soilMoist < WET_SOIL)
  {
    if (tempLowAlert == HIGH)
    {
      tempLowAlert = LOW;
      digitalWrite(LAMP_PIN, HIGH);
      lampStatus = 1;
    }
    else tempLowAlert = HIGH;
  }
  else
  {
    tempLowAlert = LOW;
    digitalWrite(LAMP_PIN, LOW);
    lampStatus = 0;
  }
}

Github

https://github.com/adafruit/DHT-sensor-library

Github

https://github.com/fdebrabander/Arduino-LiquidCrystal-I2C-library

GitHub ArduFarmBot
