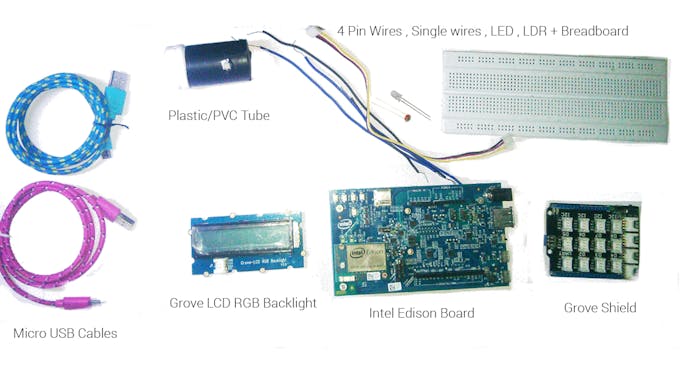

Things used in this project

Hardware components:
Intel.web.720.405
Intel Edison
×1
Grove 20starter 20kit 20plus 20  20intel c2 ae 20iot2 01
SeeedStudio Grove starter kit plus for Intel Edison
×1
12002 04
Breadboard (generic)
×1
Adafruit industries ada161 image 75px
Photo resistor
×1
09590 01
LED (generic)
×1
Mfr 25frf52 10k sml
Resistor 10k ohm
×1
Adafruit industries ada592 image 75px
USB-A to Micro-USB Cable
×1
Software apps and online services:
Simpleicon cognito
Amazon Web Services AWS Cognito
Ha 2up iot
Amazon Web Services AWS IoT
Ide web
Arduino IDE

Custom parts and enclosures

SUMO Finger Holder

Code

Sumo Arduino SketchArduino
/*
 * Smart Pulse Monitor
 * Author : Geeve George
 */


#include <Wire.h>

const int analogInPin = A0;


int sensorValue = 0;

int count=0;
unsigned long time1=0;
unsigned long time2;


#include "rgb_lcd.h"

rgb_lcd lcd;

const int colorR = 255;
const int colorG = 0;
const int colorB = 0;

void setup() {

  Serial.begin(9600);

  lcd.begin(16, 2);

    lcd.setRGB(colorR, colorG, colorB);
}

void loop() {




  if(count==0)
  {time1=millis();
  }
  time2=millis();
  sensorValue = analogRead(analogInPin);






  if(time2>=time1+10000)
  { counter();
  }


  if(sensorValue <500){

    lcd.clear();

    Serial.println("Insert finger");
    lcd.setCursor(0,0);
    lcd.print("Insert Finger");


    return;
 }





  if(sensorValue >500){

    lcd.clear();
  digitalWrite(Led, HIGH);
    increment();

  Serial.println(sensorValue);
 Serial.println(count);
 Serial.println(time2);
 lcd.setCursor(0,0);
 lcd.print("Counting");

  }


 delay(200);

  }

void increment()
{
  count++;

}

    void counter()
{
  lcd.clear();
  count=count*6;
  Serial.print("Heart beat: ");
  Serial.print(count);
  lcd.setCursor(0,0);
  lcd.print("Heart beat:");
  lcd.setCursor(0,1);
  lcd.print(count);
  lcd.print(" BPM");


  time1=0;
  time2=0;
  count=0;

 delay(5000);




}
Processing SketchArduino
/*
 * Smart Pulse Monitor
 * Author : Geeve George
 */



import processing.serial.*;
    Serial myPort;
    int xPos = 1;
    float oldHeartrateHeight = 0;

    void setup () {
    // set the window size:
    size(1000, 200);
    frameRate(30);

    // List available serial ports.
    println(Serial.list());

    // Setup which serial port to use.
    // This line might change for different computers.
    myPort = new Serial(this, "COM16", 115200);

    // set inital background:
    background(0);
    }

    void draw () {
    }

    void serialEvent (Serial myPort) {
    // read the string from the serial port.
    String inString = myPort.readStringUntil('\n');

    if (inString != null) {
    // trim off any whitespace:
    inString = trim(inString);
    // convert to an int
    println(inString);
    int currentHeartrate = int(inString);

    // draw the Heartrate BPM Graph.
    float heartrateHeight = map(currentHeartrate, 0, 1023, 0, height);
    stroke(0,255,0);
    line(xPos - 1, height - oldHeartrateHeight, xPos, height - heartrateHeight);
    oldHeartrateHeight = heartrateHeight;
    // at the edge of the screen, go back to the beginning:
    if (xPos >= width) {
    xPos = 0;
    background(0);
    } else {
    // increment the horizontal position:
    xPos++;
    }
    }
    }
AWS Lambda FunctionJavaScript
var https = require('https');

var CONFIG = {

  partner_token:          'API_TOKEN',
  token:                  'USER_TOKEN',
  user_id:    "user_id",
  serial_id:   "serial_id",

},
DATA = {};

function logData(event, context) {
  var clickType = event.clickType;
  switch(clickType.toLowerCase()) {

    }
    }
    }

  var data = {

    user_name:            CONFIG.user_name;
    sl_no:           CONFIG.dl_no;
    ,
    datalog: {},
    order_comment:                  'The data was sucesfully stored'
  };


  data = JSON.stringify(data);

  var headers = {
    'Content-Type':   'application/json',
    'Content-Length': Buffer.byteLength(data)
  };


  var req = https.request(options, function(res) {
    console.log(res.statusCode);
    if (res.statusCode == 200 || res.statusCode == 201) {
      context.succeed(event);
    } else if (context) {
      context.fail(event);
    }

    res.on('data', function (chunk) {
      console.log("" + chunk);
    });
  });

  req.write(data);
  req.end();
}

exports.handler = logData;

Credits

10649764 791289860950693 9058981313352172186 n
Geeve George

I work on arduino, intel edison and android development for making technology for specially abled people.
