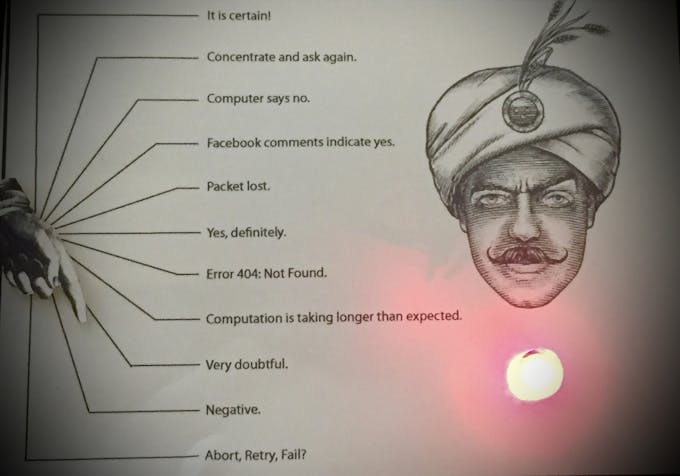

Things used in this project

Hardware components:

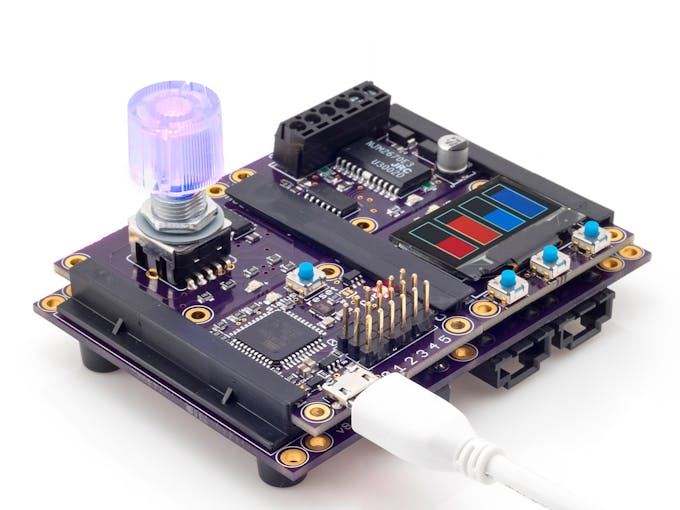

Thebase 97044185 8470 483f 8e2d 764c8d13dad0 grande
Modulo Base
×1
Thecontroller e8d08231 4c27 40d1 a660 46968bc162aa grande
Modulo Controller
×1
Theknob b7c2a1a3 69ea 4ce2 b565 7909a31f1f81 grande
Modulo Knob (for Modulo)
×1

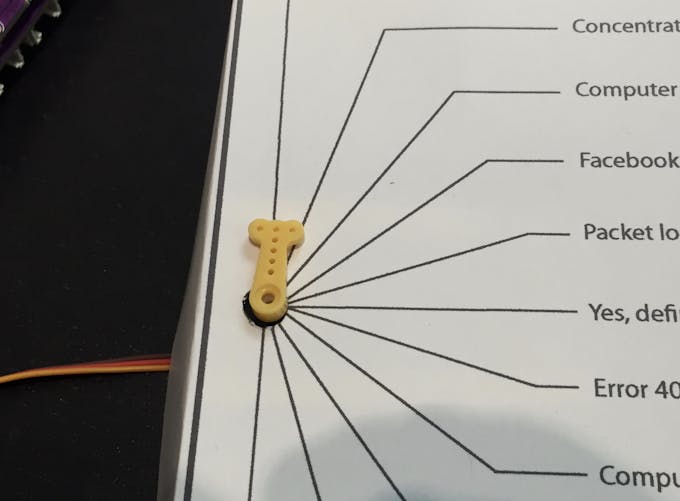

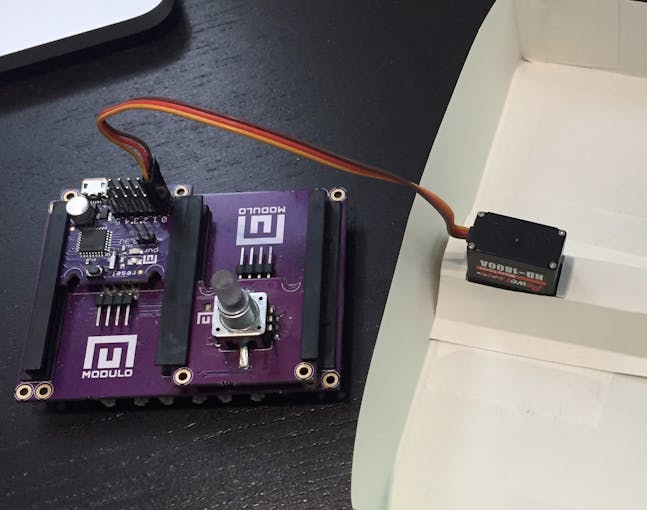

Micro Servo Motor HD-1800A
×1
Heavy Printer Paper
×1
Clear Tape
×1
Software apps and online services:
Ide web
Arduino IDE
Hand tools and fabrication machines:
Scissors or Craft Knife

Schematics

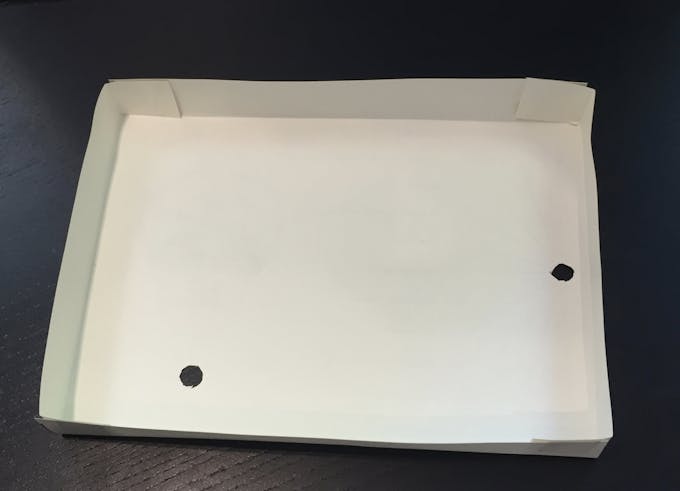

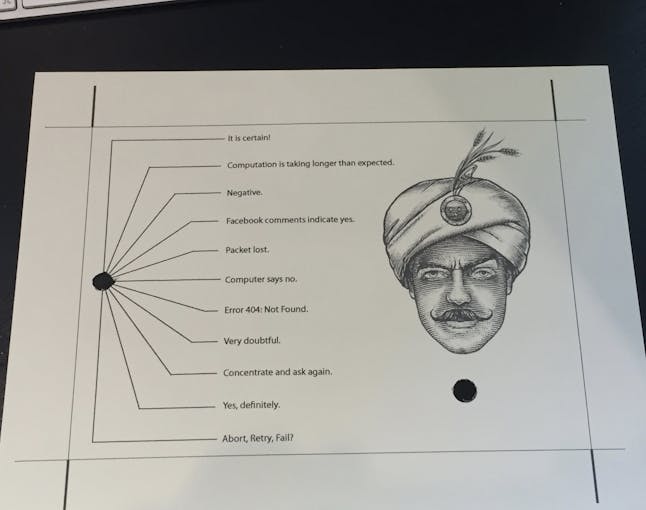

Zoltar.ai
Zoltar.ai

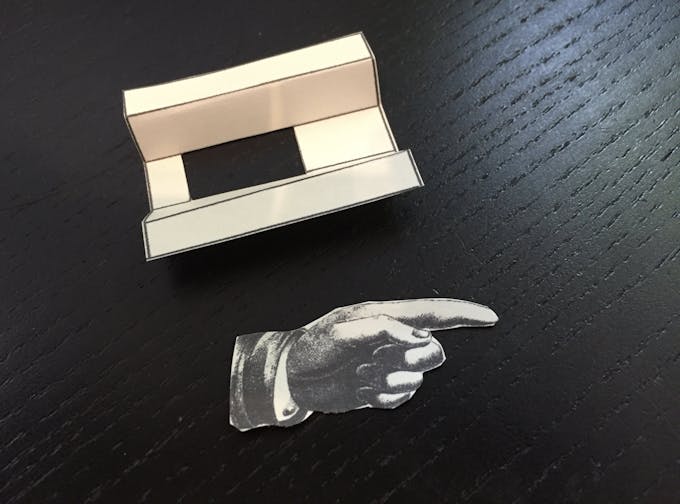

ZoltarAccessories.pdf
ZoltarAccessories.ai
ZoltarAccessories.ai
Zoltar.pdf

Code

Zoltar.inoArduino
Run this sketch with the Arduino app.
#include "Modulo.h"
#include "Wire.h"
#include "Servo.h"

KnobModulo knob;
Servo servo;

int currentPos = 0;
int servoAngle = 0;
void onPositionChanged(KnobModulo &k) {
    servoAngle -= 18*(knob.getPosition()-currentPos);
    currentPos = knob.getPosition();

    if (servoAngle < 0) {
        servoAngle = 0;
    }
    if (servoAngle > 180) {
        servoAngle = 180;
    }

    knob.setHSV(servoAngle/180.0, 1, 1);
    Serial.println(servoAngle);
    servo.write(servoAngle);
}

void onButtonPress(KnobModulo &k) {
    // First get the current time in milliseconds.
    long startTime = millis();

    // Continually do this until 3 seconds (3000ms) past the start time
    while (millis() < startTime + 3000) {
        // Figure out the servo angle, which ranges between 0 and 180
        // in a sinusoidal pattern based on the current time.
        servo.write(90*(1 + sin(millis()/400.0)));

        // Set the hue of the knob based on the current time too.
        knob.setHSV((millis() % 500)/500.0, 1, 1);
    }
}


void setup() {
    servo.attach(0);
    knob.setPositionChangeCallback(onPositionChanged);
    knob.setButtonPressCallback(onButtonPress);
}

void loop() {
    Modulo.loop();

    knob.setHSV(0, 1, sin(millis()/1000.0));
}
