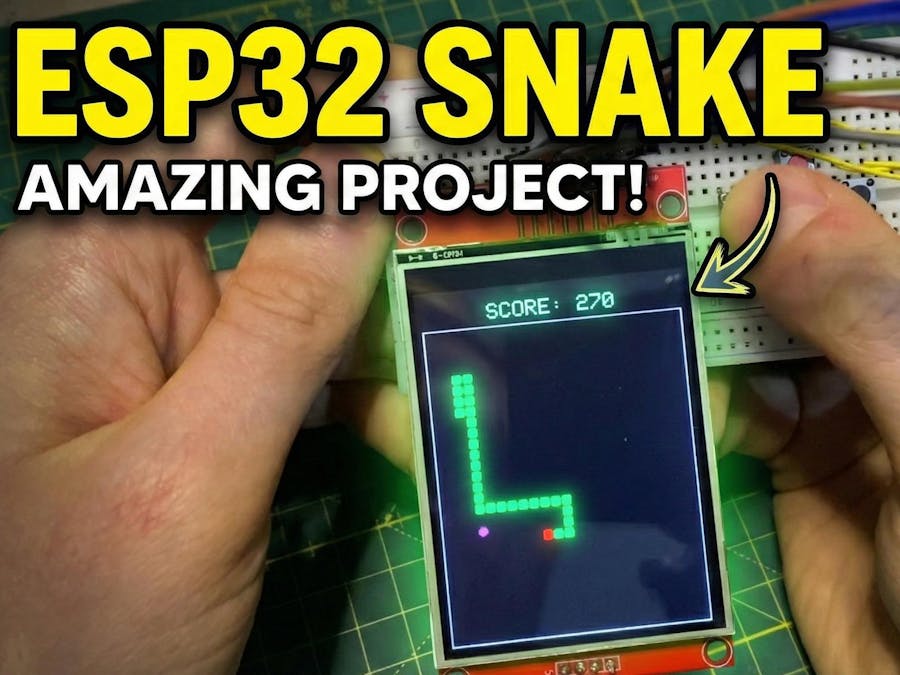

I made Snake Game w Esp32

🐍 ESP32 Snake Game (Handheld Console Prototype)

Welcome to the ESP32 Snake Game project! This is a fully open-source, Arduino-based implementation of the classic Snake game.

This project serves as the first prototype for a larger goal: building a complete DIY portable mini-game console from scratch. Currently designed for a breadboard, it uses an ESP32-S3 and an ILI9341 TFT Display.

✨ Features

• Classic Gameplay: Retro snake mechanics.
• High Performance: Powered by the ESP32-S3.
• Sound Effects: Passive buzzer feedback for collecting gems and game over.
• Progressive Difficulty: Snake speed increases every 100 points.
• Easy Build: No soldering required (Breadboard friendly).
• Internal Pull-ups: Buttons use INPUT_PULLUP to minimize wiring.

🛠️ Hardware Required

• Microcontroller: ESP32-S3 Development Board
• Display: 2.8" or 2.4" TFT LCD (ILI9341 Driver)
• Controls: 4x Tactile Push Buttons
• Audio: 1x Passive Buzzer
• Misc: Breadboard & Jumper Wires

🔌 Wiring & Pinout

This project uses the VSPI (or specific hardware SPI) pins for the display.

🖥️ Display (ILI9341)

Vcc to 3.3vGND to GNDCS to GPIO 4RESET to GIPO 9DC to GPIO 15MOSI to GPIO 11SCK to GPIO 12LED to 3.3vMISO to GPIO 13TOUCH N/A

🎮 Controls (Buttons)

Buttons connect between the GPIO pin and GND. No external resistors needed.

UP to GPIO 16DOWN to GPIO 17LEFT to GPIO 18RIGHT to GPIO 8

🔊 Audio (Buzzer)

Positive to GPIO14Negative to GND
