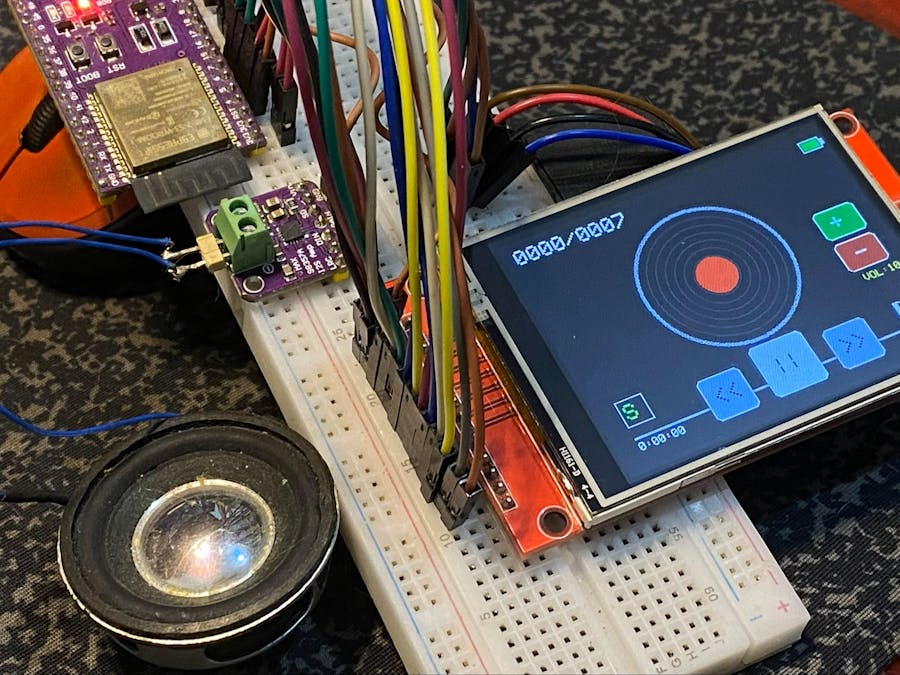

Hello Everyone. Today I will share with you new Esp32 project. MP3 Player. Songs are playing directly from Sd Card. I used built-in Sd slot on tft Display. In this project I used:
Esp32S3 Dev board 16R8ILI9341 Touch displayMax98357A Audio Amplifier3 watt SpeakerSd Card
Touch panel and Display share same SPI pins and "HSPI". Sd card is use "VSPI". Also has different spi pin configuration. All you need to know information inside the tutorial.
Tutorial Video :
ILI9341 Tutorial :
Have an Enjoy :)
