Spirit Detector: An Interactive Light-Based Spirit Counter

This is a cursed project that forces people to converse with you at an anime convention, but in return, you "steal their soul".

Things used in this project

Hardware components

SparkFun ESP32 Thing

MSP2401

a 2.4" No Touch TFT Module (SKU MSP2401) found on aliexpress. Cost like 2.97 USD at the time

onsemi QRD1114

Cost 1.33 USD on digikey. Found in a box of parts dating back to 2008.

Resistor 10k ohm

Through Hole Resistor, 470 ohm

18650 Battery

A single cell 18560 that I found in a drawer salvaged from a chainsaw battery

Nintendo Power Glove

A Nintendo Power Glove. Pretty useless 30+ years ago, still useless today. Useful for attention grabbing if anything, but can be replaced with pretty much anything

Battery Holder, 18650 x 1

a battery holder for the 18650 battery

prefboard

some spare prefboard found lying around

Software apps and online services

Microsoft VS Code

PlatformIO Core

Story

Introduction

For years I wanted to make some sort of prop for a local anime convention that takes place in October-November. The problem is that year after year, I barely have an idea...if any, and even if I did, it was impossible to get something built by the time the convention comes around. This year (2025) was the same, but unlike years past, this con is taking place on Halloween and as this is the age of AI and so I did like what most people would do in the age of AI and get ChatGPT to generate an idea for me that is feasible in two weeks.

After like an hour of sifting through ideas and adding in parts I have lying around, I decided to go with this "soul stealer" or "spirit detector" project which is designed to steal con-goers souls (implying they had one to begin with) and if I steal enough souls (meaning get close enough to people), then a gif plays on a TFT display which is a bit friendlier than stealing men's souls and making them my slave.

Bill of Materials

Hardware Component

A Nintendo Power Glove
Sparkfun ESP32 Thing (~31 USD)
QRD1114 x2
10k Resistor x2
470 Resistor x2
pref boards
A 2.4" TFT Display Module (2.97 USD)

Project Requirements

Must be build able within two weeks
Must use low power (ESP32, Arduino, small MCU, etc.)
Should last an entire convention day
Should draw attention or interaction
Use a ESP32
Use a TFT module as a display
Uses a rechargeable battery
Uses the button to display a random gif
Uses a sensor to "catch souls" or "interact with people" then play a random gif

So...What is This Exactly

This is a project where a ESP32, some QRD114 sensors a 18650 battery and a TFT display is glued to a Nintendo Power Glove. If enough reflective light goes back to the sensor, then a counter is increment, then a gif plays on the TFT display if it is incremented ten times.

Why a QRD1114 sensor? Simply put, it was the only thing lying around and it kinda works. Don't expect much for something that was constructed in two weeks.

Disclaimer: The QRD1114 sensor is actually kinda bad at detecting or even stealing souls. Nor do I have any empirical evidence that this sensor can steal souls other than what that Shinigami in front of the convention center said. In fact, I don't think he's actually a Shinigami but some guy cosplaying as one. The QRD1114 is a usable light sensor though.

High Level Diagrams

Overall Operation

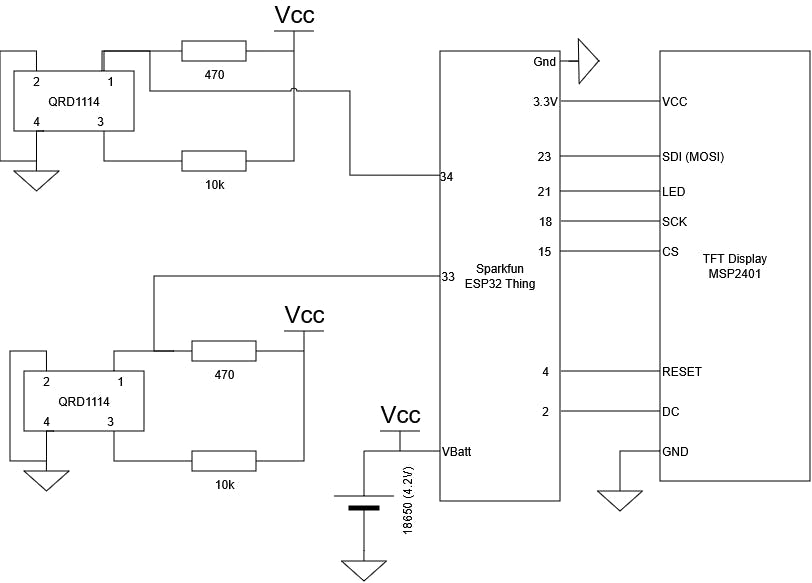

Schematic

The Code

A vast majority of the code was vibe coded via ChatGPT (which makes this project as souless as as I have no tolerance for arbitrary visual effects) and I ended up modifying and refactoring the code as needed. The project was built on VS Code with platform io plugin and uses the arduino framework.

Note that all the source files, User_Setup.h and partitions (see partition section) is provided. However, the gif files and so the playRandomGif function provided in the code needs to be updated with your own gif

The project itself uses the following external libraries

TFT_eSPI
AnimatedGif

The project layout is as follows:

Scaling down gif files

Gif files are big, and will not fit a small 2.4" TFT display. So each gif needs to be downsized. I ended up using ezgif to scale down the gif

https://ezgif.com/resize

to downsize the gif file to 240x320

Resizing the ESP32 Partition

Even after down scaling the gif, these gif are still pretty big and I ended up only fitting two or three gif to the ESP32 Thing before running out of memory. However, the program itself is not very big and since there are a lot space in different areas of the ESP32 that are never going to be used for this project such as Over The Air updates, I ended up re-partitioning the ESP32 to get additional space for more gif by shrinking down app0 and otadata partition and increasing spiffs partition. This is done by creating another separate partition csv file.

However, doing this offset calculation is problematic, and I ended up getting ChatGPT to do the work for me. See the partition.csv and the platformio.ini in the attchements for how this was modified

Uploading the Gif Files and Updating the PlayRandomGif function

In main.cpp, I have a playRandomGif() function which randomly plays a gif file. However, this is dependent on the name of the gif and how many gif are in the data folder. Furthermore, some of these gif need to be played multiple time due to the short frame rate of certain gifs (making them useless unless played multiple times) .

To upload the gif, I put them into the data folder in VS Code. Platformio will upload the resized gif to ESP32 upon flashing

Assembly

The only soldering down was soldering headers onto a pref board and soldering the resistors to the QRD1114 onto some pref boards. The entirely of the wiring is mostly just jumper wires and the likes. The shoddiness and jankiness of the entire project is what gives the attraction appeal

Result

Overall result is that this glove got some attention from people and I 'harvested' like a couple dozen souls or so. But turns out I have another issue which is that I never ended up storing the souls into EEPROM, so anything that was harvested quickly escaped. Which doesn't really mean much in the end as con-goers' souls are worth as much as cookie crumbs. But the glove itself is a decent conversation starter, but not as much as my Ninomae Ina'nis Takod hoodie that I was wearing. A vendor did end up giving me these convention badge ribbon.

So I got something else other than souls out of this project...I guess.

Code

#include <TFT_eSPI.h>
#include <SPI.h>
#include <AnimatedGIF.h>
#include <SPIFFS.h>
#include "GIFDraw.h"

#define QRD1114_1 34
#define QRD1114_2 33
#define Button_PIN 0

AnimatedGIF gif;
TFT_eSPI tft = TFT_eSPI();
// Use a dedicated SPIClass instance for SD operations so we can control transactions
SPIClass sdSPI(VSPI);
File gifFile;
// Mutex used to serialize access to SPI/TFT/SD to avoid concurrency races
SemaphoreHandle_t spiMutex = NULL;

unsigned long lastUpdate = 0;
int mode = 0; // 0 = idle, 1 = detecting, 2 = alert
unsigned long modeStart = 0;
unsigned long soulsCollected = 0;
const int sampleCount = 10;
int sensor1Samples[sampleCount];
int sensor2Samples[sampleCount];
unsigned long lastSoulTime = 0;
int sampleIndex = 0;
const unsigned long soulCooldown = 1000; // 3 seconds between soul detections

//For Button 0 press
void IRAM_ATTR handleButtonPress();  // interrupt handler
volatile bool buttonPressed = false;
volatile bool alreadyPlayed = false;

// Bar positions and dimensions
const int barCount = 4;
const int barWidth = 50;
const int barSpacing = 10;
const int barBaseY = 220;
const int barMaxHeight = 120;
int barHeights[barCount] = {0, 0, 0, 0};


// --------------------- VISUAL EFFECTS ---------------------

void drawIdleScreen() {
  tft.fillScreen(TFT_BLACK);
  tft.setTextColor(TFT_DARKGREY, TFT_BLACK);
  tft.setTextDatum(MC_DATUM);
  tft.drawString("Scanning for", tft.width() / 2, tft.height() / 2 - 20);
  tft.drawString("Cursed Spirits...", tft.width() / 2, tft.height() / 2 + 10);
  Serial.println("[Idle] Scanning...");
}

void drawDetection() {
  Serial.println("[Detection] Energy fluctuation detected!");
  tft.fillScreen(TFT_BLACK);

  for (int r = 10; r < 100; r += 10) {
    uint16_t color = tft.color565(0, random(50, 255), random(50, 255)); // eerie blue-green glow
    tft.drawCircle(tft.width() / 2, tft.height() / 2, r, color);
    delay(40);
  }
}

void drawAlert() {
  Serial.println("[Alert] CURSED SPIRIT DETECTED!");
  for (int i = 0; i < 3; i++) {
    tft.fillScreen(TFT_RED);
    delay(150);
    tft.fillScreen(TFT_BLACK);
    delay(150);
  }

  tft.setTextColor(TFT_RED, TFT_BLACK);
  tft.setTextDatum(MC_DATUM);
  tft.drawString("CURSED SPIRIT", tft.width() / 2, tft.height() / 2 - 20);
  tft.drawString("DETECTED!", tft.width() / 2, tft.height() / 2 + 10);
}

void flicker() {
  int x = random(tft.width());
  int y = random(tft.height());
  uint16_t color = (random(10) > 7) ? TFT_DARKGREY : TFT_BLACK;
  tft.drawPixel(x, y, color);
}

// Callback functions for the AnimatedGIF library (SPIFFS)
void *fileOpen(const char *filename, int32_t *pFileSize)
{
  // Acquire SPI/TFT/SD mutex while performing filesystem operations
  if (spiMutex) xSemaphoreTake(spiMutex, portMAX_DELAY);
  gifFile = SPIFFS.open(filename, FILE_READ);
  if (gifFile) {
    *pFileSize = gifFile.size();
  } else {
    Serial.println("Failed to open GIF file from SPIFFS!");
    *pFileSize = 0;
  }
  if (spiMutex) xSemaphoreGive(spiMutex);
  return &gifFile;
}

void fileClose(void *pHandle)
{
  if (spiMutex) xSemaphoreTake(spiMutex, portMAX_DELAY);
  gifFile.close();
  if (spiMutex) xSemaphoreGive(spiMutex);
}

int32_t fileRead(GIFFILE *pFile, uint8_t *pBuf, int32_t iLen)
{
  int32_t iBytesRead = iLen;
  if ((pFile->iSize - pFile->iPos) < iLen)
    iBytesRead = pFile->iSize - pFile->iPos;
  if (iBytesRead <= 0)
    return 0;

  if (spiMutex) xSemaphoreTake(spiMutex, portMAX_DELAY);
  gifFile.seek(pFile->iPos);
  int32_t bytesRead = gifFile.read(pBuf, iBytesRead);
  pFile->iPos += bytesRead;
  if (spiMutex) xSemaphoreGive(spiMutex);
  return bytesRead;
}

int32_t fileSeek(GIFFILE *pFile, int32_t iPosition)
{
  if (iPosition < 0)
    iPosition = 0;
  else if (iPosition >= pFile->iSize)
    iPosition = pFile->iSize - 1;
  pFile->iPos = iPosition;
  if (spiMutex) xSemaphoreTake(spiMutex, portMAX_DELAY);
  gifFile.seek(pFile->iPos);
  if (spiMutex) xSemaphoreGive(spiMutex);
  return iPosition;
}

void playGif(String test){
  String currentGifPath = test;
  File exisitngGif = SPIFFS.open(currentGifPath.c_str(),FILE_READ);
  Serial.printf("Attempting to open the gif");
  gif.begin(BIG_ENDIAN_PIXELS);
  bool gifOPened= gif.open(currentGifPath.c_str(), fileOpen, fileClose, fileRead, fileSeek, GIFDraw);
  if(gifOPened){
  Serial.printf("gif opened");
    tft.startWrite();
    while (gif.playFrame(true, NULL))
    {
      delay(1);
    }
    gif.close();
    tft.endWrite();
  }
  else{
    Serial.printf("Failed to open GIF for playback: %s\n", currentGifPath.c_str());
    delay(1000);
  }
}

void playRandomGif(){
  int randNum = random(0,7);

  switch(randNum){
    case 0:
      playGif("/korone.gif");
    break;

    case 1:
      tft.fillScreen(TFT_WHITE);
      playGif("/subaduck.gif");
      playGif("/subaduck.gif");
    break;

    case 2:
      playGif("/takohacker.gif");
      playGif("/takohacker.gif");
      playGif("/takohacker.gif");
    break;

    case 3:
      playGif("/fubukiburgershake.gif");
      playGif("/fubukiburgershake.gif");
      playGif("/fubukiburgershake.gif");
      playGif("/fubukiburgershake.gif");
      playGif("/fubukiburgershake.gif");
    break;

    case 4:
      playGif("/takoyawn.gif");
    break;

    case 5:
      playGif("/spin2win.gif");
      playGif("/spin2win.gif");
    break;
    case 6:
      playGif("/subaduckfactory.gif");
      playGif("/subaduckfactory.gif");
      playGif("/subaduckfactory.gif");
      playGif("/subaduckfactory.gif");
    break;

    default:
    Serial.println("default case");
    break;
  }
  tft.fillScreen(TFT_BLACK);
}


void drawSoulScreen() {

  tft.fillScreen(TFT_BLACK);
  tft.setTextColor(TFT_RED, TFT_BLACK);
  tft.setTextSize(2);

  // Draw the "Souls Collected" count
  tft.setCursor(40, 12);
  tft.print("x ");
  tft.print(soulsCollected);

  // Optional fancy effect
  tft.drawRect(5, 5, 100, 30, TFT_DARKGREY);
}


void collectSouls() {
  // Shift in new readings
  sensor1Samples[sampleIndex] = analogRead(QRD1114_1);
  sensor2Samples[sampleIndex] = analogRead(QRD1114_2);
  sampleIndex = (sampleIndex +1)%sampleCount;

  // Compute smoothed averages
  int avg1 = 0, avg2 = 0;
  for (int i = 0; i < sampleCount; i++) {
    avg1 += sensor1Samples[i];
    avg2 += sensor2Samples[i];
  }
  avg1 /= sampleCount;
  avg2 /= sampleCount;

  // Debug output
  Serial.print("Sensor1: "); Serial.print(avg1);
  Serial.print("  Sensor2: "); Serial.println(avg2);

  // Randomized threshold (to simulate "unstable cursed energy")
  int baseThreshold = 3000;
  // int randomOffset = random(-100, 100);
  // int threshold = baseThreshold + randomOffset;
  int threshold = baseThreshold;

  // Check for dark (low reflectivity)
  bool sensor1Dark = avg1 < threshold;
  bool sensor2Dark = avg2 < threshold;

  // Soul detection logic
  if (sensor1Dark && sensor2Dark) {
    unsigned long now = millis();
    if (now - lastSoulTime > soulCooldown) {
      soulsCollected++;
      alreadyPlayed=false;
      lastSoulTime = now;
      Serial.print("Soul detected! Total: ");
      Serial.println(soulsCollected);
    }
  }

  if(soulsCollected > 0 && soulsCollected%10==0 && !alreadyPlayed){
    playRandomGif();
    alreadyPlayed=true;
  }
}

void IRAM_ATTR handleButtonPress() {
  // Debounce (basic, ~50 ms lockout)
  static unsigned long lastInterrupt = 0;
  unsigned long now = millis();
  if (now - lastInterrupt > 50) {
    buttonPressed = true;
    lastInterrupt = now;
  }
}

void drawSoulCounter() {
  tft.fillRect(0, 0, tft.width(), 30, TFT_BLACK);
  tft.setCursor(10, 5);
  tft.print("souls harvested:");
  tft.print(soulsCollected);
}

void drawBars() {
  int startX = 20;

  for (int i = 0; i < barCount; i++) {
    // erase old bar
    tft.fillRect(startX + i * (barWidth + barSpacing),
                 barBaseY - barMaxHeight, barWidth, barMaxHeight, TFT_BLACK);

    // draw new bar
    int barHeight = barHeights[i];
    int barY = barBaseY - barHeight;

    uint16_t color = TFT_GREEN;
    if (barHeight > barMaxHeight * 0.7)
      color = TFT_RED;
    else if (barHeight > barMaxHeight * 0.4)
      color = TFT_YELLOW;

    tft.fillRect(startX + i * (barWidth + barSpacing),
                 barY, barWidth, barHeight, color);
  }
}

void updateBars() {
  int val1 = analogRead(QRD1114_1);
  int val2 = analogRead(QRD1114_2);

  // Normalize to 0–100
  int n1 = map(val1, 0, 4095, 0, 100);
  int n2 = map(val2, 0, 4095, 0, 100);

  // Create 4 pseudo-randomized values based on the sensors
  int pseudo[4];
  pseudo[0] = n1 + random(-10, 10);
  pseudo[1] = n2 + random(-10, 10);
  pseudo[2] = (n1 + n2) / 2 + random(-15, 15);
  pseudo[3] = (n1 / 2 + n2) / 2 + random(-20, 20);

  for (int i = 0; i < 4; i++) {
    pseudo[i] = constrain(pseudo[i], 0, 100);
    barHeights[i] = map(pseudo[i], 0, 100, 0, barMaxHeight);
  }

  drawBars();
}

void setup() {
  Serial.begin(115200);
  delay(1000);
  tft.init();
  tft.setRotation(1);
  tft.fillScreen(TFT_BLACK);
  tft.setTextSize(4);
  soulsCollected=0;

  pinMode(QRD1114_1,INPUT);
  pinMode(QRD1114_2,INPUT);
  pinMode(Button_PIN,INPUT_PULLUP);
  attachInterrupt(digitalPinToInterrupt(Button_PIN),handleButtonPress,FALLING);

  Serial.println("Soul Harvestor initialized.");

  // Initialize SPIFFS
  Serial.println("Initialize SPIFFS...");
  if (!SPIFFS.begin(true)) {
    Serial.println("SPIFFS initialization failed!");
    tft.fillScreen(TFT_RED);
    tft.setCursor(10, 30);
    tft.print("SPIFFS FAILED");
    return;
  }
  Serial.println("SPIFFS initialized successfully.");

}


void loop() {
  if(buttonPressed){
    buttonPressed=false;
    playRandomGif();
  }
  collectSouls();
  updateBars();
  drawSoulCounter();
  delay(600);
}

; PlatformIO Project Configuration File
;
;   Build options: build flags, source filter
;   Upload options: custom upload port, speed and extra flags
;   Library options: dependencies, extra library storages
;   Advanced options: extra scripting
;
; Please visit documentation for the other options and examples
; https://docs.platformio.org/page/projectconf.html

[env:esp32thing]
platform = espressif32
board = esp32thing
framework = arduino
lib_deps = bodmer/TFT_eSPI @^2.5.43
        bitbank2/AnimatedGIF
monitor_speed = 115200
upload_port = COM3
board_build.partitions = partitions.csv

//Coyp and paste this file to the build/libdeps/esp32thing/TFT_eSPI/TFT_eSPI.h in case you did a clean build
#define ST7789_DRIVER

#define TFT_WIDTH  240
#define TFT_HEIGHT 320

#define TFT_RGB_ORDER TFT_BGR
#define TFT_INVERSION_OFF

#define TFT_BL 21
#define TFT_MOSI  23
#define TFT_SCLK  18
#define TFT_CS    15  // or -1 if tied to GND
#define TFT_DC    2
#define TFT_RST   4

#define LOAD_GLCD
#define LOAD_FONT2
#define LOAD_FONT4
#define LOAD_FONT6
#define LOAD_FONT7
#define LOAD_FONT8
#define LOAD_GFXFF

// #define TAB_COLOUR -1

#include <TFT_eSPI.h>
#include <AnimatedGIF.h>
#include<stdint.h>

// External display instance (must match your main file)
extern TFT_eSPI tft;

// Define screen parameters
#define DISPLAY_WIDTH  tft.width()
#define DISPLAY_HEIGHT tft.height()
#define BUFFER_SIZE    256

#ifdef USE_DMA
  uint16_t usTemp[2][BUFFER_SIZE];
#else
  uint16_t usTemp[1][BUFFER_SIZE];
#endif
static bool dmaBuf = 0;

// -----------------------------------------------------------------------------
// GIFDraw: called by AnimatedGIF for every line of pixels
// -----------------------------------------------------------------------------
void GIFDraw(GIFDRAW *pDraw)
{
  uint8_t *s;
  uint16_t *d, *usPalette;
  int x, y, iWidth, iCount;

  // Bounds check
  iWidth = pDraw->iWidth;
  if (iWidth + pDraw->iX > DISPLAY_WIDTH)
    iWidth = DISPLAY_WIDTH - pDraw->iX;

  usPalette = pDraw->pPalette;
  y = pDraw->iY + pDraw->y; // current output line

  if (y >= DISPLAY_HEIGHT || pDraw->iX >= DISPLAY_WIDTH || iWidth < 1)
    return;

  s = pDraw->pPixels;

  // Disposal method 2 = restore to background
  if (pDraw->ucDisposalMethod == 2)
  {
    for (x = 0; x < iWidth; x++)
    {
      if (s[x] == pDraw->ucTransparent)
        s[x] = pDraw->ucBackground;
    }
    pDraw->ucHasTransparency = 0;
  }

  // Handle transparency
  if (pDraw->ucHasTransparency)
  {
    uint8_t *pEnd, c, ucTransparent = pDraw->ucTransparent;
    pEnd = s + iWidth;
    x = 0;
    iCount = 0;
    while (x < iWidth)
    {
      c = ucTransparent - 1;
      d = &usTemp[0][0];
      while (c != ucTransparent && s < pEnd && iCount < BUFFER_SIZE)
      {
        c = *s++;
        if (c == ucTransparent)
        {
          s--;
        }
        else
        {
          *d++ = usPalette[c];
          iCount++;
        }
      }
      if (iCount)
      {
        tft.setAddrWindow(pDraw->iX + x, y, iCount, 1);
        tft.pushPixels(usTemp[0], iCount);
        x += iCount;
        iCount = 0;
      }

      // Skip transparent run
      c = ucTransparent;
      while (c == ucTransparent && s < pEnd)
      {
        c = *s++;
        if (c == ucTransparent)
          x++;
        else
          s--;
      }
    }
  }
  else
  {
    s = pDraw->pPixels;
    if (iWidth <= BUFFER_SIZE)
      for (iCount = 0; iCount < iWidth; iCount++)
        usTemp[dmaBuf][iCount] = usPalette[*s++];
    else
      for (iCount = 0; iCount < BUFFER_SIZE; iCount++)
        usTemp[dmaBuf][iCount] = usPalette[*s++];

#ifdef USE_DMA
    tft.dmaWait();
    tft.setAddrWindow(pDraw->iX, y, iWidth, 1);
    tft.pushPixelsDMA(&usTemp[dmaBuf][0], iCount);
    dmaBuf = !dmaBuf;
#else
    tft.setAddrWindow(pDraw->iX, y, iWidth, 1);
    tft.pushPixels(&usTemp[0][0], iCount);
#endif

    iWidth -= iCount;
    while (iWidth > 0)
    {
      if (iWidth <= BUFFER_SIZE)
        for (iCount = 0; iCount < iWidth; iCount++)
          usTemp[dmaBuf][iCount] = usPalette[*s++];
      else
        for (iCount = 0; iCount < BUFFER_SIZE; iCount++)
          usTemp[dmaBuf][iCount] = usPalette[*s++];

#ifdef USE_DMA
      tft.dmaWait();
      tft.pushPixelsDMA(&usTemp[dmaBuf][0], iCount);
      dmaBuf = !dmaBuf;
#else
      tft.pushPixels(&usTemp[0][0], iCount);
#endif
      iWidth -= iCount;
    }
  }
}

Credits

animemecha

3 projects • 1 follower

Spirit Detector: An Interactive Light-Based Spirit Counter

Things used in this project

Hardware components

Software apps and online services

Story

Introduction

Bill of Materials

Project Requirements

So...What is This Exactly

High Level Diagrams

The Code

Scaling down gif files

Resizing the ESP32 Partition

Uploading the Gif Files and Updating the PlayRandomGif function

Assembly

Result

Schematics


Code

main.cpp

platformio.ini

User_setup.h

partitions.csv

GIFDraw.h

GIFDraw.cpp

Credits

animemecha

Comments

Embed the widget on your own site

Spirit Detector: An Interactive Light-Based Spirit Counter

Spirit Detector: An Interactive Light-Based Spirit Counter

Things used in this project

Hardware components

Software apps and online services

Story

Introduction

Bill of Materials

Project Requirements

So...What is This Exactly

High Level Diagrams

The Code

Scaling down gif files

Resizing the ESP32 Partition

Uploading the Gif Files and Updating the PlayRandomGif function

Assembly

Result

Schematics


Code

main.cpp

platformio.ini

User_setup.h

partitions.csv

GIFDraw.h

GIFDraw.cpp

Credits

animemecha

Comments
