Lazy Ferrari

Want to pass something over to a friend without getting up? Lazy Ferrari is there to help you!

IntermediateWork in progress4 hours720
Lazy Ferrari

Things used in this project

Story

Read more

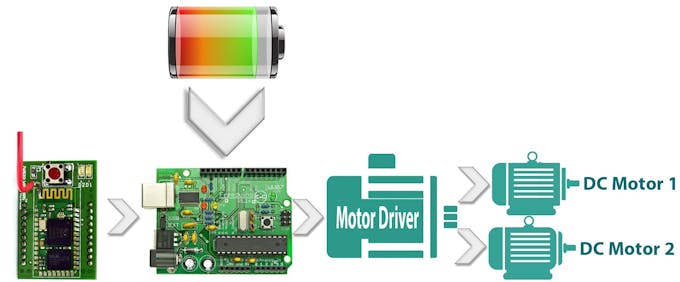

Schematics

L293D INTERFACING

CONNECTING MOTOR TO PARTICLE
L293dparticle jb7oiuoxqg

Code

MOTOR CONTROL

C Header File
code using l293d and also link of using with seeed motor shield
#include "SeeedMotorShield.h"
#include "application.h"

/*----Ardunio to Shield Pinout Controls-----

Are using a Seeed motor shield to drive 2 DC motors
Seeed motor shield uses Arduino pins 8->13
Pin 9 sets the enable and speed of shield outputs 1 & 2
Pin 10 sets the enable and speed of shield outputs 3 & 4
Pin 8 from Uno controls the state of shield output 1
Pin 11 from Uno controls the state of shield output 2
Pin 12 from Uno controls the state of shield output 3
Pin 13 from Uno controls the state of shiled output 4

*/

void SeeedMotorShield::begin() {

    leftmotorForward = D0; // pin 8 --- left motor (+)
    leftmotorspeed = D1; // pin 9 --- left motor speed signal
    rightmotorspeed = D2; // pin 10 --- right motor speed signal
    leftmotorBackward = D3; // pin 11 --- left motor (-)
    rightmotorForward = D4; // pin 12 --- right motor (+)
    rightmotorBackward = D5; // pin 13 --- right motor (-)

    pinMode(leftmotorForward, OUTPUT);
    pinMode(leftmotorBackward, OUTPUT);
    pinMode(leftmotorspeed, OUTPUT);
    pinMode(rightmotorForward, OUTPUT);
    pinMode(rightmotorBackward, OUTPUT);
    pinMode(rightmotorspeed, OUTPUT);
}

void SeeedMotorShield::goForward(int motor, int speed){
    if(motor == 0){
        analogWrite(leftmotorspeed,speed);
        digitalWrite(leftmotorForward,LOW);
        digitalWrite(leftmotorBackward,HIGH);
    }
    else if (motor == 1) {
        analogWrite(rightmotorspeed,speed);
        digitalWrite(rightmotorForward,LOW);
        digitalWrite(rightmotorBackward,HIGH);
    }
}

void SeeedMotorShield::turnLeft(int speed){
    goBackward(MOTORB, speed);
    goForward(MOTORA, speed);
}

void SeeedMotorShield::turnRight(int speed){
    goBackward(MOTORA, speed);
    goForward(MOTORB, speed);
}

void SeeedMotorShield::goBackward(int motor, int speed) {
    if(motor == 0){
        analogWrite(leftmotorspeed,speed);
        digitalWrite(leftmotorBackward,LOW);
        digitalWrite(leftmotorForward,HIGH);
    }
    else if (motor == 1) {
        analogWrite(rightmotorspeed,speed);
        digitalWrite(rightmotorBackward,LOW);
        digitalWrite(rightmotorForward,HIGH);
    }
}

void SeeedMotorShield::Stop(int motor) {
    if(motor == 0){
        digitalWrite(leftmotorspeed,LOW);
    }
    else if (motor == 1) {
        digitalWrite(rightmotorspeed,LOW);
    }

}
