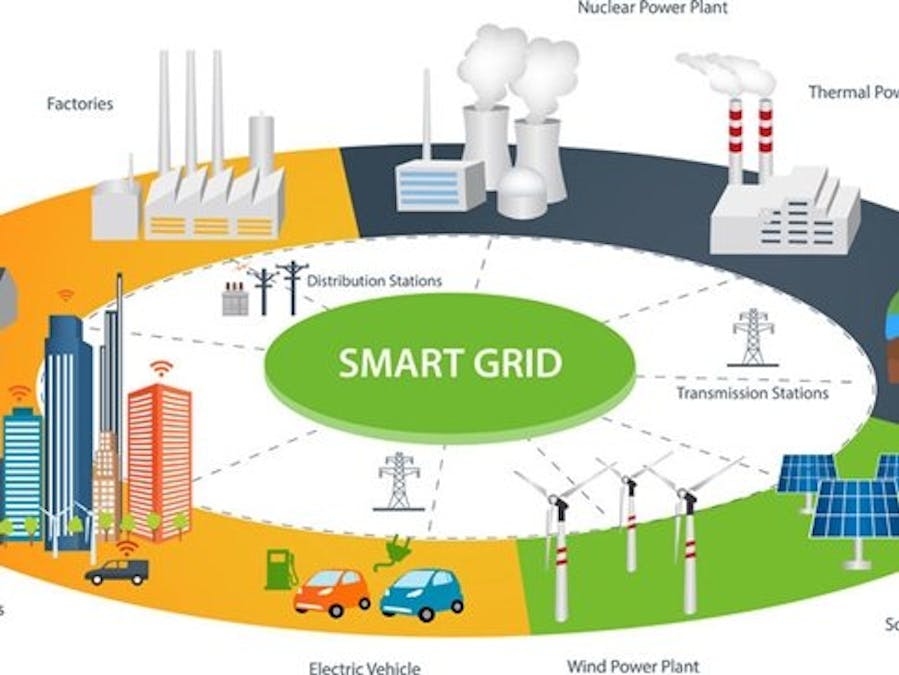

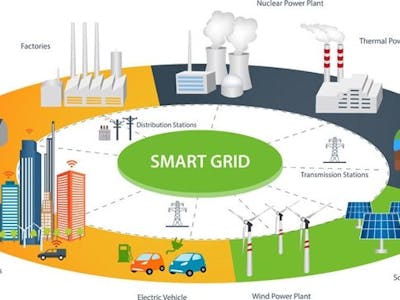

SMART GRID POWER SYSTEM 2.0
The purpose of this project is to make the power-grid system more efficient and power savings and environment conservation as fever losses occur.
Includes 4 techniques:-
1.Load Distribution
2.Appliance Ranking
3.Detection of position of Transmission Losses
4.Theft Detection + Moving sensors
we explained the above techniques in the following video:-
#include <ESP8266WebServer.h>
#include <WiFiClientSecure.h>
#include <WiFiClient.h>
#include <ESP8266WiFi.h>
#include <ThingSpeak.h>
#include <Wire.h>
#include <Adafruit_ADS1015.h>
Adafruit_ADS1015 ads; /* Use thi for the 12-bit version */
double offsetI;
double filteredI;
double sqI,sumI;
int16_t sampleI;
double Irms;
char ssid[] = "ssid";
char pass[] = "pass";
WiFiClient client;
unsigned long myChannelNumber = 7****; //Your Channel Number (Without Brackets)
const char* myWriteAPIKey = "*********"; //Your Write API Key
unsigned long ChannelNumber = ******; //Your Channel Number (Without Brackets)
const char* WriteAPIKey = "***********"; //Your Write API Key
double calcIrms(unsigned int Number_of_Samples)
{
/* Be sure to update this value based on the IC and the gain settings! */
double multiplier =0.05F; /* ADS1115 @ +/- 4.096V gain (16-bit results) */
for (unsigned int n = 0; n < Number_of_Samples; n++)
{
sampleI = ads.readADC_Differential_0_1();
//Serial.println(sampleI);
// delay(100);
// Digital low pass filter extracts the 2.5 V or 1.65 V dc offset,
// then subtract this - signal is now centered on 0 counts.
offsetI = (offsetI + (sampleI-offsetI)/1024);
filteredI = sampleI - offsetI;
//filteredI = sampleI * multiplier;
// Root-mean-square method current
// 1) square current values
sqI = filteredI * filteredI;
// 2) sum
sumI += sqI;
}
Irms = sqrt(sumI / Number_of_Samples)*multiplier;
//Reset accumulators
sumI = 0;
//--------------------------------------------------------------------------------------
return Irms;
}
const int sub=D3;
const int dom=D4 ;
const int street=D5 ;
const int motor1=D6 ;
const int motor2=D7 ;
void setup() {
Serial.begin(115200);
ads.setGain(GAIN_TWO); // 1x gain +/- 4.096V 1 bit = 2mV 0.125mV
ads.begin();
// Connect to WiFi network
Serial.println();
Serial.print("Connecting to ");
Serial.println(ssid);
WiFi.begin(ssid,pass);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected");
Serial.print("connected: ");
Serial.println(WiFi.localIP());
ThingSpeak.begin(client);
// Setup GPIO
// relay pin is set as output
pinMode(sub,INPUT);
pinMode(dom,INPUT);
pinMode(street,INPUT);
pinMode(motor1,INPUT);
pinMode(motor2,INPUT);
}
double p1=10;
double p2=10;
double p3=10;
double p4=8;
double p5=50;
// loop() runs continuously, it's our infinite loop.
void loop(){
double current = calcIrms(1024);
delay(500);
double power =(250*current); // w
double p=p1-p2 ;
double ps_dom=p2-p3 ;
ThingSpeak.setField( 1, (long)p);
ThingSpeak.setField( 3, (long)ps_dom);
ThingSpeak.writeFields(ChannelNumber,WriteAPIKey); //Update in ThingSpeaK
delay(5000);
if(digitalRead(sub) == LOW){
ThingSpeak.setField( 1, (long)power);
ThingSpeak.setField( 2, (long)p2);
ThingSpeak.setField( 3, (long)p3);
ThingSpeak.setField( 6, (long)p4);
ThingSpeak.setField( 7, (long)p5);
ThingSpeak.writeFields(myChannelNumber, myWriteAPIKey);
Serial.println("make it any");
delay(5000); // ThingSpeak will only accept updates every 15 seconds.
p1=power ;
}
else if(digitalRead(dom) == LOW){
ThingSpeak.setField( 1, (long)p1);
ThingSpeak.setField( 2, (long)power);
ThingSpeak.setField( 3, (long)p3);
ThingSpeak.setField( 6, (long)p4);
ThingSpeak.setField( 7, (long)p5);
ThingSpeak.writeFields(myChannelNumber, myWriteAPIKey);
Serial.println("make it anyD");
delay(5000); // ThingSpeak will only accept updates every 15 seconds.
p2=power ;
}
else if(digitalRead(street) == LOW){
ThingSpeak.setField( 1, (long)p1);
ThingSpeak.setField( 2, (long)p2);
ThingSpeak.setField( 3, (long)power);
ThingSpeak.setField( 6, (long)p4);
ThingSpeak.setField( 7, (long)p5);
ThingSpeak.writeFields(myChannelNumber, myWriteAPIKey);
Serial.println("make it anyS");
delay(5000); // ThingSpeak will only accept updates every 15 seconds.
p3=power ;
}
else if(digitalRead(motor1) == LOW){
ThingSpeak.setField( 1, (long)p1);
ThingSpeak.setField( 2, (long)p2);
ThingSpeak.setField( 3, (long)p3);
ThingSpeak.setField( 6, (long)power);
ThingSpeak.setField( 7, (long)p5);
ThingSpeak.writeFields(myChannelNumber, myWriteAPIKey);
Serial.println("make it anyM1");
delay(5000); // ThingSpeak will only accept updates every 15 seconds.
p4=power ;
}
else if(digitalRead(motor2) == LOW){
ThingSpeak.setField( 1, (long)p1);
ThingSpeak.setField( 2, (long)p2);
ThingSpeak.setField( 3, (long)p3);
ThingSpeak.setField( 6, (long)p4);
ThingSpeak.setField( 7, (long)power);
ThingSpeak.writeFields(myChannelNumber, myWriteAPIKey);
Serial.println("make it anyM2");
delay(20000); // ThingSpeak will only accept updates every 15 seconds.
p5=power ;
}
else{
Serial.println("no measurement");
}
}
#include <Wire.h>
#include <Adafruit_ADS1015.h>
Adafruit_ADS1015 ads; /* Use thi for the 12-bit version */
double offsetI;
double filteredI;
double sqI,sumI;
int16_t sampleI;
double Irms;
double calcIrms(unsigned int Number_of_Samples)
{
/* Be sure to update this value based on the IC and the gain settings! */
double multiplier =0.05F; /* ADS1115 @ +/- 4.096V gain (16-bit results) */
for (unsigned int n = 0; n < Number_of_Samples; n++)
{
sampleI = ads.readADC_Differential_0_1();
//Serial.println(sampleI);
// delay(100);
// Digital low pass filter extracts the 2.5 V or 1.65 V dc offset,
// then subtract this - signal is now centered on 0 counts.
offsetI = (offsetI + (sampleI-offsetI)/1024);
filteredI = sampleI - offsetI;
//filteredI = sampleI * multiplier;
// Root-mean-square method current
// 1) square current values
sqI = filteredI * filteredI;
// 2) sum
sumI += sqI;
}
Irms = sqrt(sumI / Number_of_Samples)*multiplier;
//Reset accumulators
sumI = 0;
//--------------------------------------------------------------------------------------
return Irms;
}
const int more_posi=8;
const int more_nega=9 ;
const int shut=10 ;
void setup() {
Serial.begin(9600);
ads.setGain(GAIN_TWO); // 1x gain +/- 4.096V 1 bit = 2mV 0.125mV
ads.begin();
// Setup GPIO
// relay pin is set as output
pinMode(more_posi,OUTPUT);
pinMode(more_nega,OUTPUT);
pinMode(shut,OUTPUT);
digitalWrite(more_posi,LOW);
digitalWrite(more_nega,LOW);
digitalWrite(shut,LOW);
}
// loop() runs continuously, it's our infinite loop.
void loop(){
double current = calcIrms(1024);
delay(500);
double power =(250*current); // w
Serial.println(power);
if(power > 50.00)
{
digitalWrite(more_posi,HIGH);
digitalWrite(more_nega,HIGH);
digitalWrite(shut,LOW);
}
else if(power < 1.00)
{
digitalWrite(shut,HIGH);
digitalWrite(more_posi,LOW);
digitalWrite(more_nega,LOW);
}
else{
digitalWrite(shut,LOW);
digitalWrite(more_posi,LOW);
digitalWrite(more_nega,LOW);
}
}
rank_database.py
PythonRun this for generating database and also don't forget to create your .db file ie database in your system and then run this code replacing the name of the database of yours.
import pandas as pd
import sqlite3
# stock ticker symbol
url1 = "https://api.thingspeak.com/channels/73*****/fields/6.csv?api_key=*******"
url2 = "https://api.thingspeak.com/channels/738300/fields/7.csv?api_key=********"
# import data with pandas
data = pd.read_csv(url1)
data1 = pd.read_csv(url2)
req_data = str(max(data['field6']))
req_data1 = str(max(data1['field7']))
reqq_data = [req_data,req_data1]
appliance_name = ["Shakti Pumps","Bhakti Pumps"]
con=None
cursor=None
for i in range(2):
try:
con=sqlite3.connect("your_database_name.db")
sql = "insert into appliances(Appliance_Name,Power) values('%s','%s')"
args = (appliance_name[i],reqq_data[i])
cursor = con.cursor()
cursor.execute(sql % args)
con.commit()
print(cursor.rowcount , "Records inserted")
except Exception as e:
print("Add issue",e)
con.rollback()
finally:
if cursor is not None:
cursor.close()
if con is not None:
con.close();
while True:
opt = int(input("1 View Record,2 Exit"))
if opt == 1:
con = None
cursor = None
try:
con = sqlite3.connect("your_database_name.db")
sql = "select distinct Appliance_Name,Power from appliances order by (Power) asc"
cursor = con.cursor()
cursor.execute(sql)
data = cursor.fetchall()
df = pd.read_sql_query(sql, con)
#df = pd.DataFrame(df1, columns= ['Appliance Name','Power(Watt)'])
export_excel = df.to_excel (r'mention the directory to save the excel database here\Appliance_Rankings.xlsx', index = None, header=True)
for d in data:
print(d[0],d[1])
except Exception as e:
print("select issue",e)
finally:
if cursor is not None:
cursor.close()
if con is not None:
con.close();
elif opt == 2:
break
else:
print("Invalid Option")
