Peter Ma
Published © GPL3+

Netduino WiFi Lock

Unlock your deadbolt remotely through WiFi using Netduino.

IntermediateFull instructions provided12 hours1,860

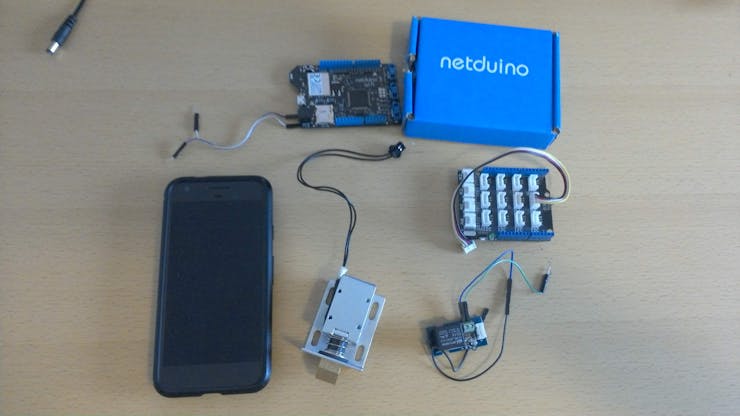

Things used in this project

Story

Read more

Schematics

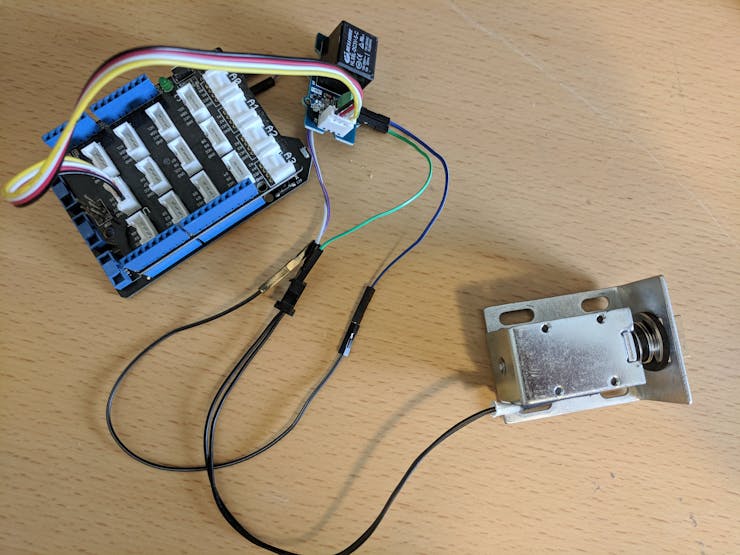

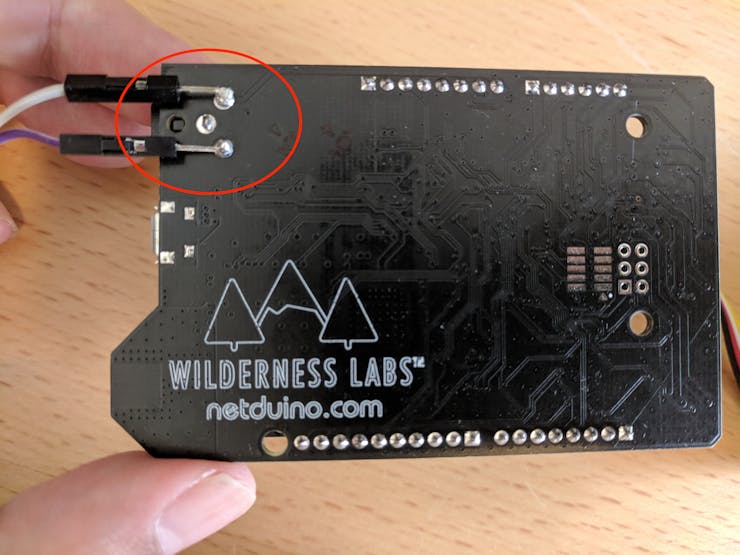

Unit Wiring Frame

Wiring Frame
Img 20180810 122229 zjzqn7mmgb

Code

Netduino C# Code

C#
This is the Netduino Socket server and receiver code to control the lock
using Microsoft.SPOT.Hardware;
using Microsoft.SPOT.Net.NetworkInformation;
using SecretLabs.NETMF.Hardware;
using SecretLabs.NETMF.Hardware.Netduino;

namespace Lock
{
    public class Program
    {
        // Main method is called once as opposed to a loop method called over and over again
        public static void Main()
        {
            Thread.Sleep(5000);
            App app = new App();
            app.Run();

            OutputPort led = new OutputPort(Pins.ONBOARD_LED, false);
            OutputPort relay = new OutputPort(Pins.GPIO_PIN_D5, false);

            int port = 80;

            Socket listenerSocket = new Socket(AddressFamily.InterNetwork,
                                   SocketType.Stream,
                                   ProtocolType.Tcp);
            IPEndPoint listenerEndPoint = new IPEndPoint(IPAddress.Any, port);

            Debug.Print("setting up socket");

            // bind to the listening socket
            listenerSocket.Bind(listenerEndPoint);
            // and start listening for incoming connections
            listenerSocket.Listen(1);
            Debug.Print("listening");


            while (true)
            {
                Debug.Print(".");

                // wait for a client to connect
                Socket clientSocket = listenerSocket.Accept();
                // wait for data to arrive
                bool dataReady = clientSocket.Poll(5000000, SelectMode.SelectRead);


                // if dataReady is true and there are bytes available to read,
                // then you have a good connection.
                if (dataReady && clientSocket.Available > 0)
                {
                    byte[] buffer = new byte[clientSocket.Available];
                    clientSocket.Receive(buffer);
                    string request =
                      new string(System.Text.Encoding.UTF8.GetChars(buffer));

                    Debug.Print(request);

                    if (request.IndexOf("ON") >= 0)
                    {
                        led.Write(true);
                        relay.Write(true);
                        Thread.Sleep(5000);
                        led.Write(false);
                        relay.Write(false);
                    }


                    string statusText = "Lock is " + (led.Read() ? "ON" : "OFF") + ".";
                    // return a message to the client letting it
                    // know if the LED is now on or off.
                    string response = statusText ;
                    clientSocket.Send(System.Text.Encoding.UTF8.GetBytes(response));

                }
                // important: close the client socket
                clientSocket.Close();

            }

        }
    }

    public class App
    {
        NetworkInterface[] _interfaces;

        public string NetDuinoIPAddress { get; set; }
        public bool IsRunning { get; set; }

        public void Run()
        {
            //this.IsRunning = true;
            bool goodToGo = InitializeNetwork();

            this.IsRunning = false;
        }


        protected bool InitializeNetwork()
        {
            if (Microsoft.SPOT.Hardware.SystemInfo.SystemID.SKU == 3)
            {
                Debug.Print("Wireless tests run only on Device");
                return false;
            }

            Debug.Print("Getting all the network interfaces.");
            _interfaces = NetworkInterface.GetAllNetworkInterfaces();

            // debug output
            ListNetworkInterfaces();

            // loop through each network interface
            foreach (var net in _interfaces)
            {
                // debug out
                ListNetworkInfo(net);

                switch (net.NetworkInterfaceType)
                {
                    case (NetworkInterfaceType.Ethernet):
                        Debug.Print("Found Ethernet Interface");
                        break;
                    case (NetworkInterfaceType.Wireless80211):
                        Debug.Print("Found 802.11 WiFi Interface");
                        break;
                    case (NetworkInterfaceType.Unknown):
                        Debug.Print("Found Unknown Interface");
                        break;
                }

                // check for an IP address, try to get one if it's empty
                return CheckIPAddress(net);
            }

            // if we got here, should be false.
            return false;
        }

        public void MakeWebRequest(string url)
        {
            var httpWebRequest = (HttpWebRequest)WebRequest.Create(url);
            httpWebRequest.Method = "GET";
            httpWebRequest.Timeout = 1000;
            httpWebRequest.KeepAlive = false;

            httpWebRequest.GetResponse();
            /*
            using (var streamReader = new StreamReader(httpResponse.GetResponseStream()))
            {
                var result = streamReader.ReadToEnd();
                Debug.Print("this is what we got from " + url + ": " + result);
            }*/
        }


        protected bool CheckIPAddress(NetworkInterface net)
        {
            int timeout = 10000; // timeout, in milliseconds to wait for an IP. 10,000 = 10 seconds

            // check to see if the IP address is empty (0.0.0.0). IPAddress.Any is 0.0.0.0.
            if (net.IPAddress == IPAddress.Any.ToString())
            {
                Debug.Print("No IP Address");

                if (net.IsDhcpEnabled)
                {
                    Debug.Print("DHCP is enabled, attempting to get an IP Address");

                    // ask for an IP address from DHCP [note this is a static, not sure which network interface it would act on]
                    int sleepInterval = 10;
                    int maxIntervalCount = timeout / sleepInterval;
                    int count = 0;
                    while (IPAddress.GetDefaultLocalAddress() == IPAddress.Any && count < maxIntervalCount)
                    {
                        Debug.Print("Sleep while obtaining an IP");
                        Thread.Sleep(10);
                        count++;
                    };

                    // if we got here, we either timed out or got an address, so let's find out.
                    if (net.IPAddress == IPAddress.Any.ToString())
                    {
                        Debug.Print("Failed to get an IP Address in the alotted time.");
                        return false;
                    }

                    Debug.Print("Got IP Address: " + net.IPAddress.ToString());
                    return true;

                    //NOTE: this does not work, even though it's on the actual network device. [shrug]
                    // try to renew the DHCP lease and get a new IP Address
                    //net.RenewDhcpLease ();
                    //while (net.IPAddress == "0.0.0.0") {
                    //    Thread.Sleep (10);
                    //}

                }
                else
                {
                    Debug.Print("DHCP is not enabled, and no IP address is configured, bailing out.");
                    return false;
                }
            }
            else
            {
                Debug.Print("Already had IP Address: " + net.IPAddress.ToString());
                return true;
            }

        }

        protected void ListNetworkInterfaces()
        {
            foreach (var net in _interfaces)
            {
                switch (net.NetworkInterfaceType)
                {
                    case (NetworkInterfaceType.Ethernet):
                        Debug.Print("Found Ethernet Interface");
                        break;
                    case (NetworkInterfaceType.Wireless80211):
                        Debug.Print("Found 802.11 WiFi Interface");
                        break;
                    case (NetworkInterfaceType.Unknown):
                        Debug.Print("Found Unknown Interface");
                        break;
                }
            }
        }

        protected void ListNetworkInfo(NetworkInterface net)
        {
            Debug.Print("MAC Address: " + BytesToHexString(net.PhysicalAddress));
            Debug.Print("DHCP enabled: " + net.IsDhcpEnabled.ToString());
            Debug.Print("Dynamic DNS enabled: " + net.IsDynamicDnsEnabled.ToString());
            Debug.Print("IP Address: " + net.IPAddress.ToString());
            Debug.Print("Subnet Mask: " + net.SubnetMask.ToString());
            Debug.Print("Gateway: " + net.GatewayAddress.ToString());

            if (net is Wireless80211)
            {
                var wifi = net as Wireless80211;
                Debug.Print("SSID:" + wifi.Ssid.ToString());
            }

            this.NetDuinoIPAddress = net.IPAddress.ToString();

        }

        private static string BytesToHexString(byte[] bytes)
        {
            string hexString = string.Empty;

            // Create a character array for hexadecimal conversion.
            const string hexChars = "0123456789ABCDEF";

            // Loop through the bytes.
            for (byte b = 0; b < bytes.Length; b++)
            {
                if (b > 0)
                    hexString += "-";

                // Grab the top 4 bits and append the hex equivalent to the return string.
                hexString += hexChars[bytes[b] >> 4];

                // Mask off the upper 4 bits to get the rest of it.
                hexString += hexChars[bytes[b] & 0x0F];
            }

            return hexString;
        }

        public string getIPAddress()
        {
            return this.NetDuinoIPAddress;
        }
    }
}

Android code

Java

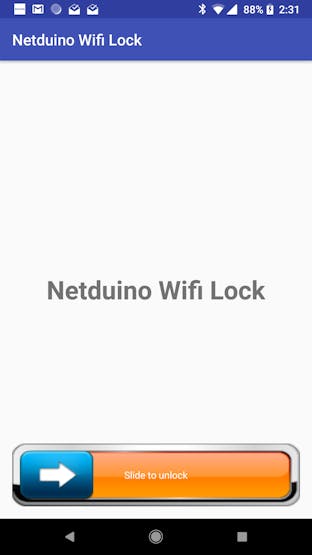

This is Android code to unlock the bolt
package com.demo.netduinolock;

import android.os.AsyncTask;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.util.Log;

import java.io.BufferedWriter;
import java.io.DataOutputStream;
import java.io.IOException;
import java.io.OutputStreamWriter;
import java.io.PrintWriter;
import java.net.InetAddress;
import java.net.Socket;
import java.net.UnknownHostException;

import cheekiat.slideview.SlideView;

public class MainActivity extends AppCompatActivity {

    SlideView mSlideView;
    private Socket socket;
    private static final int SERVERPORT = 80;
    private static final String SERVER_IP = "192.168.1.90";


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mSlideView = (SlideView) findViewById(R.id.slide_view);
        mSlideView.setOnFinishListener(new SlideView.OnFinishListener() {
            @Override
            public void onFinish() {
            new ConnectTask().execute();
            mSlideView.reset();

            }
        });



    }

    public class ConnectTask extends AsyncTask<String, String, String> {

        @Override
        protected String doInBackground(String... message) {
            try {
                InetAddress serverAddr = InetAddress.getByName(SERVER_IP);

                socket = new Socket(serverAddr, SERVERPORT);
                if(socket.isConnected()) {
                    PrintWriter out = new PrintWriter(new BufferedWriter(
                            new OutputStreamWriter(socket.getOutputStream())),
                            true);
                    out.println("ON");
                    out.flush();
                    out.close();
                    socket.close();
                    socket = null;
                }
                else
                {
                    Log.d("doh", "not conneected");
                }
            } catch (UnknownHostException e) {
                e.printStackTrace();
            } catch (IOException e) {
                e.printStackTrace();
            } catch (Exception e) {
                e.printStackTrace();
            }

            return null;
        }

        @Override
        protected void onProgressUpdate(String... values) {
            super.onProgressUpdate(values);
            //response received from server
            Log.d("test", "done ");
            //process server response here....

        }
    }

}

Repo

The Android and Netduino C# project repo
