Sound a Piezo Buzzer with Blynk and ☒XinaBox

Control any 5V element using Blynk and ☒CHIPS. This project sounds a Piezo Buzzer from my phone.

BeginnerFull instructions provided24 minutes1,662

Sound a Piezo Buzzer with Blynk and ☒XinaBox

Things used in this project

Hardware components

XinaBox IP01

☒CHIP USB Programmer based on FT232R From FTDI Limited

XinaBox CW01

☒CHIP Wi-Fi Core based on ESP8266 Wi-Fi Module

XinaBox OC01

☒CHIP High Current DC Switch

XinaBox PU01

☒CHIP USB (Type A) Power Supply

Buzzer

Any Piezo-electric buzzer would suffice or any element you would like to control

Power Bank or Similar

Software apps and online services

Arduino IDE

Blynk

Hand tools and fabrication machines

Flathead Screwdriver

Story

Introduction

This project was built using XinaBox ☒CHIPS by simply clicking together the different ☒CHIPS and writing basic code. I could then control a piezo-electric buzzer from my phone using a Blynk Project which I created.

Wireless Piezo Buzzer Control Using Blynk and ☒CHIPS

Step 1: Setting Up Blynk

Firstly, you need to download Blynk on your iPhone or Android phone from the Apple Store or Google Playstore respectively. Create an account for yourself which is fairly straight forward. Login using your newly created details. Select 'New Project' and then give your project a name. I've named mine Piezo Blynk as illustrated below. Also select the ESP8266 board using the drop down box. Press on Create and your new project will be created. A pop up will appear notifying you that an authentication token was sent to your email; press OK.

Next we need to add our widget to switch the buzzer on or off from our Blynk Project. Select the plus sign (+) in the top right corner. Your Widget Box should appear. Select the 'Button' widget by simply pressing it once. The Button should now appear on your project's work space. Refer to the below screenshots for graphical instructions up to this point.

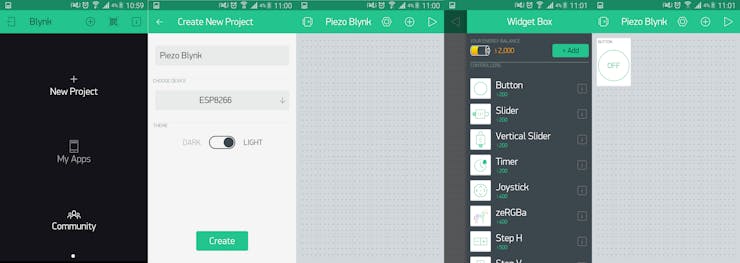

Creating your Blynk project

Now press on the button which you just added to open up 'Button Settings'. Select 'PIN' and choose 'Virtual' on your left. You may then select any virtual pin on your right side. I've chosen V10 for my project. You may change button labels if you want but that is not necessary. Select 'SWITCH' for better control and leave everything else as is. Press back and you have now completed setting up Blynk. Follow the image below for guidance.

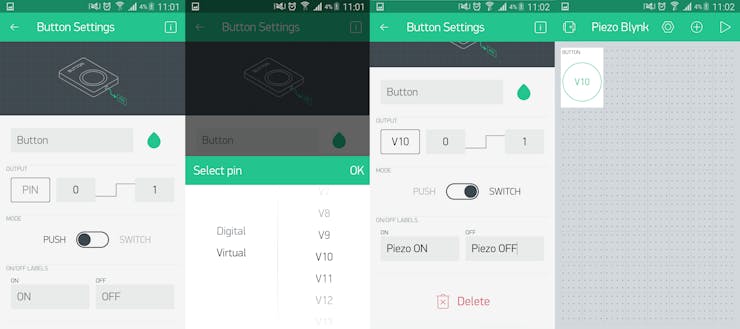

Selecting the settings for your pins

Step 2: Assemble to Program

Connect your IP01 programmer ☒CHIP with CW01 using an XC10 bus connector as shown below. Then insert the combination into an available USB port on your computer.

Programming Assembly

Step 3: Programming in Arduino

In order to use the ☒CHIPS, you'll need to download the following libraries and add them to the Arduino libraries.

xCore - Core library for ☒CHIPS.

xOC01 - Library for the high current DC switch

ESP8622 - Follow i n s t r u c t i o n s carefully

Blynk - Blynk library to use Blynk functionality

Next, Download the code in the Code section or copy and paste it into your Arduino IDE. Enter your WiFi details and copy and paste the authentication token that was emailed to you in Step 1 into their respective fields. See below.

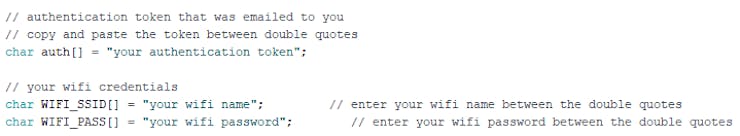

Authentication Token and WiFi details to be entered.

You may now upload the code to your board after you've run a successful compilation.

Step 4: Final Assembly

Once uploaded remove the combination from your computer and replace IP01 with PU01. Place IP01 aside as you will no longer require it. Now assemble your project as per the image below. You may connect the ☒CHIPS any way you want as long as all the identification names are orientated in the same direction.

Final Assembly

As seen above, the piezo buzzer is screwed into the terminal output which was used in our program; in this case OUT0. You may select any of the four outputs of your choice; just remember to make the changes in your code. You can screw the red wire in the positive terminal and the black wire in the negative terminal as a convention but it doesn't matter since piezo buzzers aren't polarity conscious.

Step 5: Power Up

You may power up your project with your computer or a normal power bank. Insert the project into the power bank. Open up your project which you created earlier on your Blynk application and select the play button in the top right corner. If your project is powered up, a connection will be established. You may now press the widget button you've previously added and the red LED on OUT0 output should light up along with your piezo buzzer sounding. Press the button widget on and off and be fascinated about how you can control a buzzer with your phone.

Wireless Piezo Buzzer Control Using Blynk and ☒CHIPS

Conclusion

This project took about 25min to complete. I simply clicked together the ☒CHIPS and screwed in the piezo buzzer into the terminals. No soldering and no mess. You can turn on any 5V element over a WiFi connection using your phone.

Piezo_Blynk.ino

#include <xCore.h>                  // include core library
#include <xOC01.h>                  // include high current dc switch libray
#include <ESP8266WiFi.h>            // include ESP8266 library used for wifi
#include <BlynkSimpleEsp8266.h>     // include Blynk libary used with ESP8266

// authentication token that was emailed to you
// copy and paste the token between double quotes
char auth[] = "your authentication token";

// your wifi credentials
char WIFI_SSID[] = "your wifi name";         // enter your wifi name between the double quotes
char WIFI_PASS[] = "your wifi password";        // enter your wifi password between the double quotes

// Blynk function that reads state allows virtual pin readings
BLYNK_WRITE(V10) {

  // call the state selected from your Blynk application
  int OUT0_State  = param.asInt();

  // write the state selected on your Blynk application
  // to OUT0
  // 1 = peizo on, 0 = piezo off
  OC01.write(OUT0, OUT0_State);
}

void setup() {
  // put your setup code here, to run once:

  // start i2c commnication and set pins
  Wire.begin(2, 14);

  // start the high current dc switch
  OC01.begin();

  // make unused pins inactive
  OC01.write(OUT1, LOW);
  OC01.write(OUT2, LOW);
  OC01.write(OUT3, LOW);

  // start Blynk communication
  Blynk.begin(auth, WIFI_SSID, WIFI_PASS);
}

void loop() {
  // put your main code here, to run repeatedly

  // execute Blnk operations
  Blynk.run();

}

Credits

Anon ymous

10 projects • 2 followers
