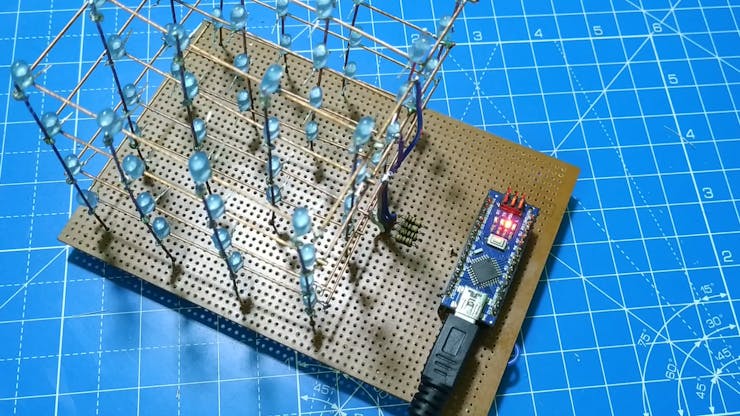

How to Make 4x4x4 LED Cube

In this article, I will show you how to make an LED cube using Arduino Nano easily step by step.

IntermediateFull instructions provided1 hour250
How to Make 4x4x4 LED Cube

Story

Read more

Code

LED_Cube_Arduino_code.ino

Arduino

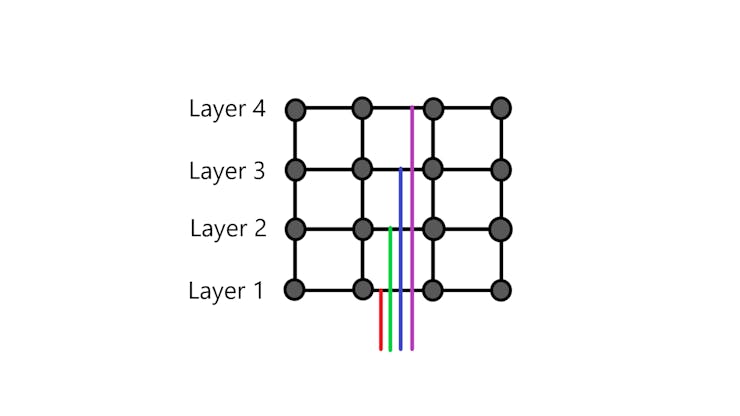

  int layer[4]={A3,A2,A1,A0}; //initializing and declaring led layers
  int column[16]={13,12,11,10,9,8,7,6,5,4,3,2,1,0,A5,A4}; //initializing and declaring led rows
  int time = 250;



void setup()
{

  for(int i = 0; i<16; i++)
  {
    pinMode(column[i], OUTPUT);  //setting rows to ouput
  }

  for(int i = 0; i<4; i++)
  {
    pinMode(layer[i], OUTPUT);  //setting layers to output
  }

  randomSeed(analogRead(10));  //seeding random for random pattern
}

void loop()
{
  turnEverythingOff();
  flickerOn();
  turnEverythingOn();
  delay(time);
  turnOnAndOffAllByLayerUpAndDownNotTimed();
  layerstompUpAndDown();
  spiralInAndOut();
  turnOnAndOffAllByColumnSideways();
  delay(time);
  aroundEdgeDown();
  turnEverythingOff();
  randomflicker();
  randomRain();
  diagonalRectangle();
  goThroughAllLedsOneAtATime();
  propeller();
  spiralInAndOut();
  flickerOff();
  turnEverythingOff();
  delay(2000);
}


//turn all off
void turnEverythingOff()
 {
   for(int i = 0; i<16; i++)
   {
     digitalWrite(column[i], 1);
   }
   for(int i = 0; i<4; i++)
   {
     digitalWrite(layer[i], 0);
   }
 }

//turn all on
void turnEverythingOn()
{
  for(int i = 0; i<16; i++)
  {
    digitalWrite(column[i], 0);
  }
  //turning on layers
  for(int i = 0; i<4; i++)
  {
    digitalWrite(layer[i], 1);
  }
}
//turn columns off
void turnColumnsOff()
{
  for(int i = 0; i<16; i++)
  {
    digitalWrite(column[i], 1);
  }
}
//flicker on
void flickerOn()
{
  int i = 150;
  while(i != 0)
  {
    turnEverythingOn();
    delay(i);
    turnEverythingOff();
    delay(i);
    i-= 5;
  }
}
//turn everything on and off by layer up and down NOT TIMED
void turnOnAndOffAllByLayerUpAndDownNotTimed()
{
  int x = 75;
  for(int i = 5; i != 0; i--)
  {
    turnEverythingOn();
    for(int i = 4; i!=0; i--)
    {
      digitalWrite(layer[i-1], 0);
      delay(x);
    }
    for(int i = 0; i<4; i++)
    {
      digitalWrite(layer[i], 1);
      delay(x);
    }
      for(int i = 0; i<4; i++)
    {
      digitalWrite(layer[i], 0);
      delay(x);
    }
    for(int i = 4; i!=0; i--)
    {
      digitalWrite(layer[i-1], 1);
      delay(x);
    }
  }
}
//turn everything on and off by column sideways
void turnOnAndOffAllByColumnSideways()
{
  int x = 75;
  turnEverythingOff();
  //turn on layers
  for(int i = 0; i<4; i++)
  {
    digitalWrite(layer[i], 1);
  }
  for(int y = 0; y<3; y++)
  {
    //turn on 0-3
    for(int i = 0; i<4; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 4-7
    for(int i = 4; i<8; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 8-11
    for(int i = 8; i<12; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 12-15
    for(int i = 12; i<16; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn off 0-3
    for(int i = 0; i<4; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 4-7
    for(int i = 4; i<8; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 8-11
    for(int i = 8; i<12; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 12-15
    for(int i = 12; i<16; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn on 12-15
    for(int i = 12; i<16; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 8-11
    for(int i = 8; i<12; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 4-7
    for(int i = 4; i<8; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn on 0-3
    for(int i = 0; i<4; i++)
    {
      digitalWrite(column[i], 0);
      delay(x);
    }
    //turn off 12-15
    for(int i = 12; i<16; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 8-11
    for(int i = 8; i<12; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 4-7
    for(int i = 4; i<8; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
    //turn off 0-3
    for(int i = 0; i<4; i++)
    {
      digitalWrite(column[i], 1);
      delay(x);
    }
  }
}
//up and down single layer stomp
void layerstompUpAndDown()
{
  int x = 75;
  for(int i = 0; i<4; i++)
  {
    digitalWrite(layer[i], 0);
  }
  for(int y = 0; y<5; y++)
  {
    for(int count = 0; count<1; count++)
    {
      for(int i = 0; i<4; i++)
      {
        digitalWrite(layer[i], 1);
        delay(x);
        digitalWrite(layer[i], 0);
      }
      for(int i = 4; i !=0; i--)
      {
        digitalWrite(layer[i-1], 1);
        delay(x);
        digitalWrite(layer[i-1], 0);
      }
    }
    for(int i = 0; i<4; i++)
    {
      digitalWrite(layer[i], 1);
      delay(x);
    }
    for(int i = 4; i!=0; i--)
    {
      digitalWrite(layer[i-1], 0);
      delay(x);
    }
  }
}
//flicker off
void flickerOff()
{
  turnEverythingOn();
  for(int i = 0; i!= 150; i+=5)
  {
    turnEverythingOff();
    delay(i+50);
    turnEverythingOn();
    delay(i);
  }
}
//around edge of the cube down
void aroundEdgeDown()
{
  for(int x = 200; x != 0; x -=50)
  {
    turnEverythingOff();
    for(int i = 4; i != 0; i--)
    {
      digitalWrite(layer[i-1], 1);
      digitalWrite(column[5], 0);
      digitalWrite(column[6], 0);
      digitalWrite(column[9], 0);
      digitalWrite(column[10], 0);

      digitalWrite(column[0], 0);
      delay(x);
      digitalWrite(column[0], 1);
      digitalWrite(column[4], 0);
      delay(x);
      digitalWrite(column[4], 1);
      digitalWrite(column[8], 0);
      delay(x);
      digitalWrite(column[8], 1);
      digitalWrite(column[12], 0);
      delay(x);
      digitalWrite(column[12], 1);
      digitalWrite(column[13], 0);
      delay(x);
      digitalWrite(column[13], 1);
      digitalWrite(column[15], 0);
      delay(x);
      digitalWrite(column[15], 1);
      digitalWrite(column[14], 0);
      delay(x);
      digitalWrite(column[14], 1);
      digitalWrite(column[11], 0);
      delay(x);
      digitalWrite(column[11], 1);
      digitalWrite(column[7], 0);
      delay(x);
      digitalWrite(column[7], 1);
      digitalWrite(column[3], 0);
      delay(x);
      digitalWrite(column[3], 1);
      digitalWrite(column[2], 0);
      delay(x);
      digitalWrite(column[2], 1);
      digitalWrite(column[1], 0);
      delay(x);
      digitalWrite(column[1], 1);
    }
  }
}
//random flicker
void randomflicker()
{
  turnEverythingOff();
  int x = 10;
  for(int i = 0; i !=750; i+=2)
  {
  int randomLayer = random(0,4);
  int randomColumn = random(0,16);

  digitalWrite(layer[randomLayer], 1);
  digitalWrite(column[randomColumn], 0);
  delay(x);
  digitalWrite(layer[randomLayer], 0);
  digitalWrite(column[randomColumn], 1);
  delay(x);
  }
}
//random rain
void randomRain()
{
  turnEverythingOff();
  int x = 100;
  for(int i = 0; i!=60; i+=2)
  {
    int randomColumn = random(0,16);
    digitalWrite(column[randomColumn], 0);
    digitalWrite(layer[0], 1);
    delay(x+50);
    digitalWrite(layer[0], 0);
    digitalWrite(layer[1], 1);
    delay(x);
    digitalWrite(layer[1], 0);
    digitalWrite(layer[2], 1);
    delay(x);
    digitalWrite(layer[2], 0);
    digitalWrite(layer[3], 1);
    delay(x+50);
    digitalWrite(layer[3], 0);
    digitalWrite(column[randomColumn], 1);
  }
}
//diagonal rectangle
void diagonalRectangle()
{
  int x = 350;
  turnEverythingOff();
  for(int count = 0; count<5; count++)
  {
    //top left
    for(int i = 0; i<8; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[3], 1);
    digitalWrite(layer[2], 1);
    delay(x);
    turnEverythingOff();
    //middle middle
    for(int i = 4; i<12; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[1], 1);
    digitalWrite(layer[2], 1);
    delay(x);
    turnEverythingOff();
    //bottom right
    for(int i = 8; i<16; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[0], 1);
    digitalWrite(layer[1], 1);
    delay(x);
    turnEverythingOff();
    //bottom middle
    for(int i = 4; i<12; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[0], 1);
    digitalWrite(layer[1], 1);
    delay(x);
    turnEverythingOff();
    //bottom left
    for(int i = 0; i<8; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[0], 1);
    digitalWrite(layer[1], 1);
    delay(x);
    turnEverythingOff();
    //middle middle
    for(int i = 4; i<12; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[1], 1);
    digitalWrite(layer[2], 1);
    delay(x);
    turnEverythingOff();
    //top right
    for(int i = 8; i<16; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[2], 1);
    digitalWrite(layer[3], 1);
    delay(x);
    turnEverythingOff();
    //top middle
    for(int i = 4; i<12; i++)
    {
      digitalWrite(column[i], 0);
    }
    digitalWrite(layer[2], 1);
    digitalWrite(layer[3], 1);
    delay(x);
    turnEverythingOff();
  }
  //top left
  for(int i = 0; i<8; i++)
  {
    digitalWrite(column[i], 0);
  }
  digitalWrite(layer[3], 1);
  digitalWrite(layer[2], 1);
  delay(x);
  turnEverythingOff();
}
//propeller
void propeller()
{
  turnEverythingOff();
  int x = 90;
  for(int y = 4; y>0; y--)
  {
    for(int i = 0; i<6; i++)
    {
      //turn on layer
      digitalWrite(layer[y-1], 1);
      //a1
      turnColumnsOff();
      digitalWrite(column[0], 0);
      digitalWrite(column[5], 0);
      digitalWrite(column[10], 0);
      digitalWrite(column[15], 0);
      delay(x);
      //b1
      turnColumnsOff();
      digitalWrite(column[4], 0);
      digitalWrite(column[5], 0);
      digitalWrite(column[10], 0);
      digitalWrite(column[11], 0);
      delay(x);
      //c1
      turnColumnsOff();
      digitalWrite(column[6], 0);
      digitalWrite(column[7], 0);
      digitalWrite(column[8], 0);
      digitalWrite(column[9], 0);
      delay(x);
      //d1
      turnColumnsOff();
      digitalWrite(column[3], 0);
      digitalWrite(column[6], 0);
      digitalWrite(column[9], 0);
      digitalWrite(column[12], 0);
      delay(x);
      //d2
      turnColumnsOff();
      digitalWrite(column[2], 0);
      digitalWrite(column[6], 0);
      digitalWrite(column[9], 0);
      digitalWrite(column[13], 0);
      delay(x);
      //d3
      turnColumnsOff();
      digitalWrite(column[1], 0);
      digitalWrite(column[5], 0);
      digitalWrite(column[10], 0);
      digitalWrite(column[14], 0);
      delay(x);
    }
  }
  //d4
  turnColumnsOff();
  digitalWrite(column[0], 0);
  digitalWrite(column[5], 0);
  digitalWrite(column[10], 0);
  digitalWrite(column[15], 0);
  delay(x);
}
//spiral in and out
void spiralInAndOut()
{
  turnEverythingOn();
  int x = 60;
  for(int i = 0; i<6; i++)
  {
    //spiral in clockwise
    digitalWrite(column[0], 1);
    delay(x);
    digitalWrite(column[1], 1);
    delay(x);
    digitalWrite(column[2], 1);
    delay(x);
    digitalWrite(column[3], 1);
    delay(x);
    digitalWrite(column[7], 1);
    delay(x);
    digitalWrite(column[11], 1);
    delay(x);
    digitalWrite(column[15], 1);
    delay(x);
    digitalWrite(column[14], 1);
    delay(x);
    digitalWrite(column[13], 1);
    delay(x);
    digitalWrite(column[12], 1);
    delay(x);
    digitalWrite(column[8], 1);
    delay(x);
    digitalWrite(column[4], 1);
    delay(x);
    digitalWrite(column[5], 1);
    delay(x);
    digitalWrite(column[6], 1);
    delay(x);
    digitalWrite(column[10], 1);
    delay(x);
    digitalWrite(column[9], 1);
    delay(x);
//spiral out counter clockwise
    digitalWrite(column[9], 0);
    delay(x);
    digitalWrite(column[10], 0);
    delay(x);
    digitalWrite(column[6], 0);
    delay(x);
    digitalWrite(column[5], 0);
    delay(x);
    digitalWrite(column[4], 0);
    delay(x);
    digitalWrite(column[8], 0);
    delay(x);
    digitalWrite(column[12], 0);
    delay(x);
    digitalWrite(column[13], 0);
    delay(x);
    digitalWrite(column[14], 0);
    delay(x);
    digitalWrite(column[15], 0);
    delay(x);
    digitalWrite(column[11], 0);
    delay(x);
    digitalWrite(column[7], 0);
    delay(x);
    digitalWrite(column[3], 0);
    delay(x);
    digitalWrite(column[2], 0);
    delay(x);
    digitalWrite(column[1], 0);
    delay(x);
    digitalWrite(column[0], 0);
    delay(x);
//spiral in counter clock wise
    digitalWrite(column[0], 1);
    delay(x);
    digitalWrite(column[4], 1);
    delay(x);
    digitalWrite(column[8], 1);
    delay(x);
    digitalWrite(column[12], 1);
    delay(x);
    digitalWrite(column[13], 1);
    delay(x);
    digitalWrite(column[14], 1);
    delay(x);
    digitalWrite(column[15], 1);
    delay(x);
    digitalWrite(column[11], 1);
    delay(x);
    digitalWrite(column[7], 1);
    delay(x);
    digitalWrite(column[3], 1);
    delay(x);
    digitalWrite(column[2], 1);
    delay(x);
    digitalWrite(column[1], 1);
    delay(x);
    digitalWrite(column[5], 1);
    delay(x);
    digitalWrite(column[9], 1);
    delay(x);
    digitalWrite(column[10], 1);
    delay(x);
    digitalWrite(column[6], 1);
    delay(x);
//spiral out clock wise
    digitalWrite(column[6], 0);
    delay(x);
    digitalWrite(column[10], 0);
    delay(x);
    digitalWrite(column[9], 0);
    delay(x);
    digitalWrite(column[5], 0);
    delay(x);
    digitalWrite(column[1], 0);
    delay(x);
    digitalWrite(column[2], 0);
    delay(x);
    digitalWrite(column[3], 0);
    delay(x);
    digitalWrite(column[7], 0);
    delay(x);
    digitalWrite(column[11], 0);
    delay(x);
    digitalWrite(column[15], 0);
    delay(x);
    digitalWrite(column[14], 0);
    delay(x);
    digitalWrite(column[13], 0);
    delay(x);
    digitalWrite(column[12], 0);
    delay(x);
    digitalWrite(column[8], 0);
    delay(x);
    digitalWrite(column[4], 0);
    delay(x);
    digitalWrite(column[0], 0);
    delay(x);
  }
}
//go through all leds one at a time
void goThroughAllLedsOneAtATime()
{
  int x = 15;
  turnEverythingOff();
  for(int y = 0; y<5; y++)
  {
    //0-3
    for(int count = 4; count != 0; count--)
    {
      digitalWrite(layer[count-1], 1);
      for(int i = 0; i<4; i++)
      {
        digitalWrite(column[i], 0);
        delay(x);
        digitalWrite(column[i], 1);
        delay(x);
      }
    digitalWrite(layer[count-1], 0);
    }
    //4-7
    for(int count = 0; count < 4; count++)
    {
      digitalWrite(layer[count], 1);
      for(int i = 4; i<8; i++)
      {
        digitalWrite(column[i], 0);
        delay(x);
        digitalWrite(column[i], 1);
        delay(x);
      }
    digitalWrite(layer[count], 0);
    }
    //8-11
    for(int count = 4; count != 0; count--)
    {
      digitalWrite(layer[count-1], 1);
      for(int i = 8; i<12; i++)
      {
        digitalWrite(column[i], 0);
        delay(x);
        digitalWrite(column[i], 1);
        delay(x);
      }
    digitalWrite(layer[count-1], 0);
    }
    //12-15
    for(int count = 0; count < 4; count++)
    {
      digitalWrite(layer[count], 1);
      for(int i = 12; i<16; i++)
      {
        digitalWrite(column[i], 0);
        delay(x);
        digitalWrite(column[i], 1);
        delay(x);
      }
    digitalWrite(layer[count], 0);
    }
  }
}

Credits

Junez Riyaz

Junez Riyaz

4 projects • 0 followers
HI! I am Junez Riyaz, currently doing Bachelor of Technology in the field of Electronics and Communication Engineering.

Comments
