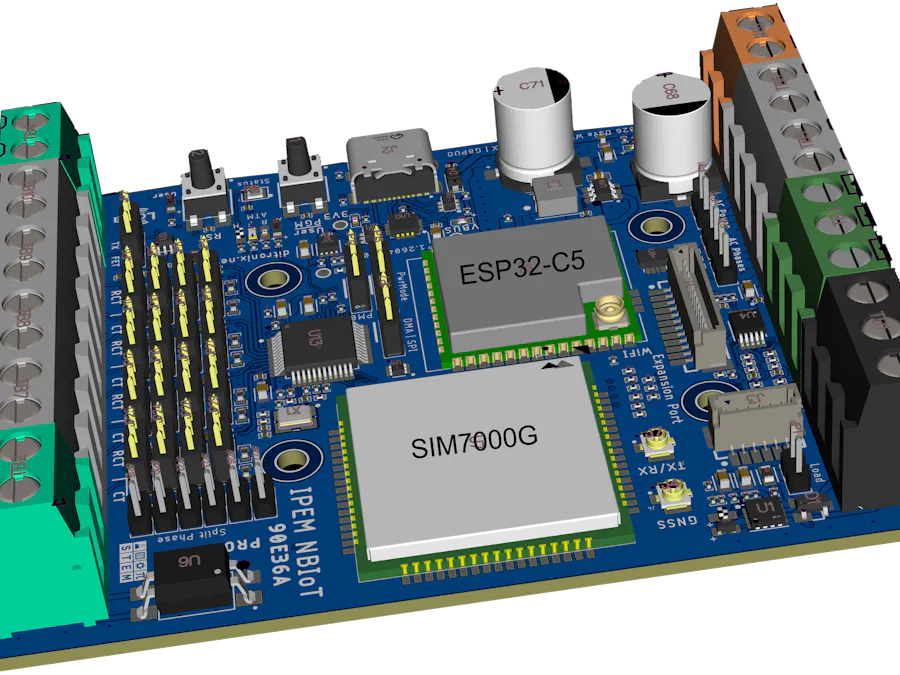

IPEM NB-IoT ESP32C5 M90E36 SIM7000G IoT Mains Power Monitor

The popular IPEM Mains Power Energy Monitors series have expanded further, with the release of IPEM NB-IoT

• For Latest Project Updates - Click Here
• WiKi

Introduction

IPEM NB-IoT is a powerful ATM90E36 Smart Home and Industry Automation, Mains Power Energy Monitor Board, and Kit.

Featuring

• Espressif ESP32-C5, RISC-V microcontroller supporting 2.4 GHz and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), Thread and Zigbee.
• SIMCom SIM7000G, for global-band LTE Cat-M1, NB-IoT, and EDGE/GPRS module designed for low-power, wide-area IoT applications.
• Microchip ATM90E36A, Poly-Phase Energy Monitor and Metering.
• Chipanalogue CS48520AD, RS-485 Transceiver with ±20kV ESD Protection.
• TI ADS1115, 16-bit analog-to-digital converter (ADC).
• TI TMP102, Digital temperature sensor.

Standalone or Integrated Remote

IPEM NB-IoT has been designed to easily monitor, and offer a flexible interface too, a whole range Mains AC Power installations.

The IPEM NB-IoT is a 'standalone board', where its ESP32-C5, interfaces with ESPHome firmware (as an example).. If preferred, you could easily send MQTT messages. As it is ESP based, it will just power up and work. No waiting to boot up.

Home | Industry | Housing | Educational | Farming | Agriculture | Solar | Energy

Using its 2.4GHz and 5GHz Wi-Fi, Thread and Zigbee ESP32-C5 radio module, you can use the IPEM NB-IoT to connect to a whole range of Smart Monitoring applications and projects.

Extending further, the built-in GPRS NB-IoT GSM radio opens up long range and fully remote monitoring.

How does the Power Energy Monitor Work?

A power energy monitor is a device that safely samples the AC Voltage, and Current flow, from one, or more, electrical phases, and from this, derives a range of accurate mains power measurements which can then be used for smart metering, or energy monitoring purposes.

These individual measurements can then be extrapolated into a range of useful real-time data such as total RMS Power, Active, Re-Active Power, Harmonic Power, Power Factor, Phase Angles, Frequency, etc.

This real-time data can then be sent via Wi-Fi, NB-IoT, or RS485, through to IoT Home and Industrial Energy Monitoring systems like Home Assistant.

Voltage and Current Monitoring

Flexible monitoring of both AC Voltage and AC Current is important for any installation.

The below links go into more detail of these options.

AC Voltage Monitoring

AC Current Monitoring

IPEM Continuity

Following in the footsteps of the original popular IPEM boards, this IPEM NB-IoT is the latest in IoT Mains Energy Monitoring for Home and Industry Automation.

IPEM NB-IoT is a self-contained ESP32-C5 based IoT monitoring board. Ideal for local, or remoting, monitoring requirements.

IPEM NB-IoT connectivity allows Wi-Fi connections to 2.4GHz or 5GHz, with Bluetooth, Thread and Zigbee. In addition, you may also use the inbuilt NB-IoT GPRS SIM7000G.

Compare Mains Power IoT Energy Monitors

To see all the Mains Power IoT Energy Monitors options, click here

AC Monitoring

All AC Mains is safely and galvanically isolated using a low voltage transformer. Examples are bell transformers.

Supports AC Monitoring Around The World

• Europe and UK which typically is 230 V @ 50 Hz, with ranges around 216 V to 253 V
• USA and Canada which typically is 120 V or 230 V @ 60 Hz, with ranges around 114 V to 126 V
• Japan which typically is 100 V @ 50 Hz or 60 Hz. Eastern Japan is 50 Hz, and Western Japan is 60 Hz
• World typically is 220V-240 V @ 50 Hz

Where can IPEM NB-IoT be used?

The IPEM NB-IoT board can be used in a number of projects and installations such as

• Homes
• Education
• Offices
• Commercial
• Factories
• Farms
• EV Charging
• Smart Metering
• Greenhouses
• Factories
• Industry
• Solar Farms
• Wind Farms
• Off Grid Systems
• Remote and/or Hill Top Sites

Further Information

Additional information, and other technical details on this project, maybe found in the related repository pages.

Repository Folders

• Code(Code examples for Arduino IDE, PlatformIO)
• Datasheets and Information(Component Datasheets, Schematics, Board Layouts, Photos, Technical Documentation)
• Certification(Related Repository Project or Part, Certification Information)

Repository Tabs

• Wiki(Related Repository Wiki pages and Technical User Information)
• Discussions(Related Repository User Discussion Forum)
• Issues(Related Repository Technical Issues and Fixes)
