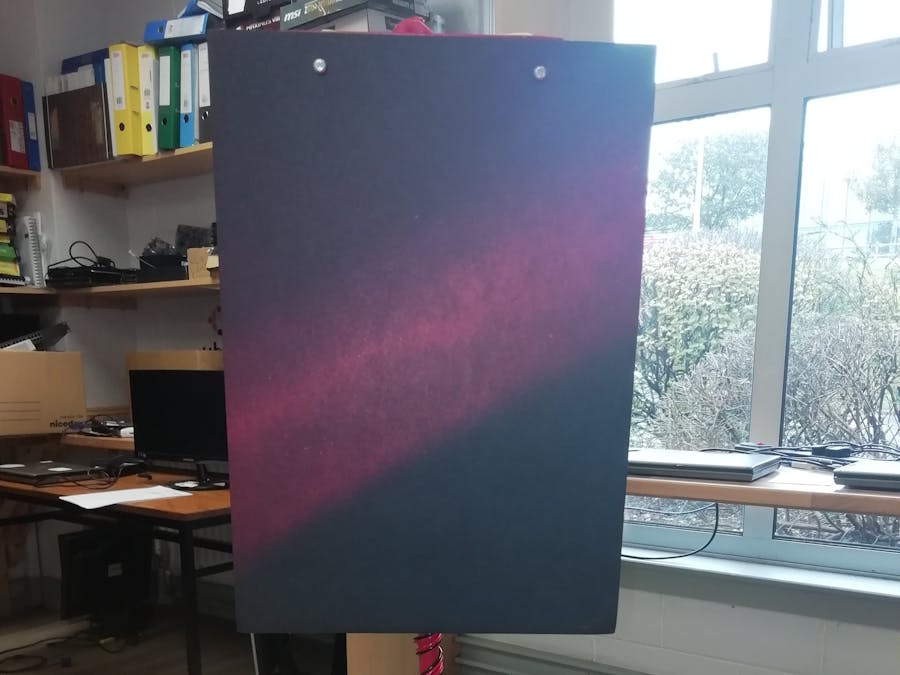

Pi Speaker

Pi Speaker using audio exciters.

IntermediateFull instructions provided2 hours664
Pi Speaker

Things used in this project

Hardware components

Dayton Audio DAEX13CT-8 Coin Type 13mm Exciter 3W 8 Ohm
×2
2 x 0.50mm Speaker Cable Wire4U® Figure 8, Quality, 50 Strands Wire (10 metres, Red / Black)
×1
sourcing map 3.5mm 2 Pole Male to AV 2 Screw Terminal Audio Video Connector Adapter for CCTV Security Camera System 1pcs
×2
Foam Cor 5mm A4 Black
×1
RASPBERRY PI 3 MODEL B
×1
SanDisk 32GB Cruzer Blade USB Flash Drive
×1
Used old SubWoofer for the Amp (an amp is needed to power the exciters)
×1

Software apps and online services

Raspbian
Raspberry Pi Raspbian
VLC
VNC Viewer for windows (my PC) VNC Viewer for Android (my mobile)
VNC Server for the Raspberry Pi

Hand tools and fabrication machines

Soldering kit
Screwdriver kit
Wire strippers

Story

Read more

Credits

Kieran Sullivan

Kieran Sullivan

2 projects • 0 followers
Sean Kenneally

Sean Kenneally

2 projects • 0 followers
Thanks to Finnbar Murphy .
