Plug Any USB Device on an ESP8266

Did you know you could plug USB devices on an Arduino or ESP? Keyboard, mouse, game controller, Midi controller, you name it!

IntermediateProtip2 hours38,347
Plug Any USB Device on an ESP8266

Things used in this project

Hardware components

Wemos D1 Mini
Espressif Wemos D1 Mini
Or Any 3.3V microcontroller
×1
USB Host Mini
×1

Software apps and online services

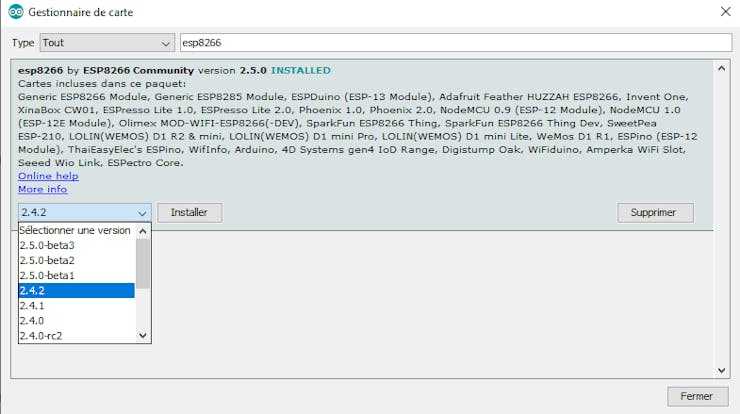

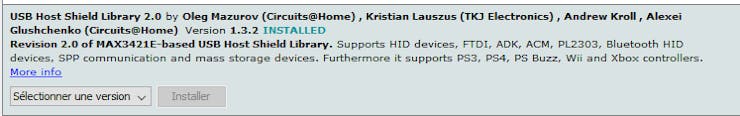

Arduino IDE
Arduino IDE

Story

Read more

Schematics

USB Host Mini Pins

Arduino Mini 3V Wiring

ESP32 Wiring

Arduino Micro 3V Wiring

ESP8266 Wiring

Code

Simple USBMidi code

Arduino
#include <usbh_midi.h>
#include <usbhub.h>
#include <SPI.h>

USB Usb;
USBH_MIDI  Midi(&Usb);

void MIDI_poll();
uint16_t pid, vid;

void setup()
{
  vid = pid = 0;
  Serial.begin(115200);

  if (Usb.Init() == -1) {
    while (1); //halt
  }//if (Usb.Init() == -1...
  delay( 200 );
}

void loop()
{
  Usb.Task();
  //uint32_t t1 = (uint32_t)micros();
  if ( Midi ) {
    MIDI_poll();
  }
}

// Poll USB MIDI Controler and send to serial MIDI
void MIDI_poll()
{
  char buf[20];
  uint8_t bufMidi[64];
  uint16_t  rcvd;

  if (Midi.idVendor() != vid || Midi.idProduct() != pid) {
    vid = Midi.idVendor();
    pid = Midi.idProduct();
    sprintf(buf, "VID:%04X, PID:%04X", vid, pid);
    Serial.println(buf);
  }
  if (Midi.RecvData( &rcvd,  bufMidi) == 0 ) {
    uint32_t time = (uint32_t)millis();
    if (bufMidi[0] == 9) {
      Serial.print("Note on -- ");
    }

    if (bufMidi[0] == 8) {
      Serial.print("Note off -- ");
    }

    Serial.print("Note: ");
    Serial.print(bufMidi[2]);
    Serial.print(" Velocity: ");
    Serial.print(bufMidi[3]);
    Serial.println("");
  }
}

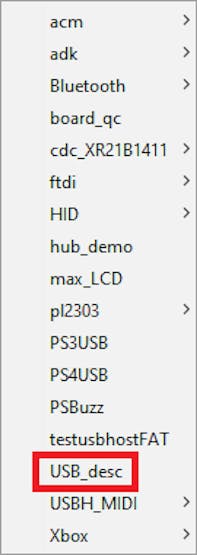

USBHost test (with baudrate for ESP8266)

Arduino
#include <usbhub.h>

#include "pgmstrings.h"

// Satisfy the IDE, which needs to see the include statment in the ino too.
#ifdef dobogusinclude
#include <spi4teensy3.h>
#endif
#include <SPI.h>

USB     Usb;
//USBHub  Hub1(&Usb);
//USBHub  Hub2(&Usb);
//USBHub  Hub3(&Usb);
//USBHub  Hub4(&Usb);
//USBHub  Hub5(&Usb);
//USBHub  Hub6(&Usb);
//USBHub  Hub7(&Usb);

void PrintAllAddresses(UsbDevice *pdev)
{
  UsbDeviceAddress adr;
  adr.devAddress = pdev->address.devAddress;
  Serial.print("\r\nAddr:");
  Serial.print(adr.devAddress, HEX);
  Serial.print("(");
  Serial.print(adr.bmHub, HEX);
  Serial.print(".");
  Serial.print(adr.bmParent, HEX);
  Serial.print(".");
  Serial.print(adr.bmAddress, HEX);
  Serial.println(")");
}

void PrintAddress(uint8_t addr)
{
  UsbDeviceAddress adr;
  adr.devAddress = addr;
  Serial.print("\r\nADDR:\t");
  Serial.println(adr.devAddress, HEX);
  Serial.print("DEV:\t");
  Serial.println(adr.bmAddress, HEX);
  Serial.print("PRNT:\t");
  Serial.println(adr.bmParent, HEX);
  Serial.print("HUB:\t");
  Serial.println(adr.bmHub, HEX);
}

void setup()
{
  Serial.begin( 74880 );
#if !defined(__MIPSEL__)
  while (!Serial); // Wait for serial port to connect - used on Leonardo, Teensy and other boards with built-in USB CDC serial connection
#endif
  Serial.println("Start");

  if (Usb.Init() == -1)
    Serial.println("OSC did not start.");

  delay( 200 );
}

uint8_t getdevdescr( uint8_t addr, uint8_t &num_conf );

void PrintDescriptors(uint8_t addr)
{
  uint8_t rcode = 0;
  uint8_t num_conf = 0;

  rcode = getdevdescr( (uint8_t)addr, num_conf );
  if ( rcode )
  {
    printProgStr(Gen_Error_str);
    print_hex( rcode, 8 );
  }
  Serial.print("\r\n");

  for (int i = 0; i < num_conf; i++)
  {
    rcode = getconfdescr( addr, i );                 // get configuration descriptor
    if ( rcode )
    {
      printProgStr(Gen_Error_str);
      print_hex(rcode, 8);
    }
    Serial.println("\r\n");
  }
}

void PrintAllDescriptors(UsbDevice *pdev)
{
  Serial.println("\r\n");
  print_hex(pdev->address.devAddress, 8);
  Serial.println("\r\n--");
  PrintDescriptors( pdev->address.devAddress );
}

void loop()
{
  Usb.Task();

  if ( Usb.getUsbTaskState() == USB_STATE_RUNNING )
  {
    Usb.ForEachUsbDevice(&PrintAllDescriptors);
    Usb.ForEachUsbDevice(&PrintAllAddresses);

    while ( 1 ) { // stop
#ifdef ESP8266
        yield(); // needed in order to reset the watchdog timer on the ESP8266
#endif
    }
  }
}

uint8_t getdevdescr( uint8_t addr, uint8_t &num_conf )
{
  USB_DEVICE_DESCRIPTOR buf;
  uint8_t rcode;
  rcode = Usb.getDevDescr( addr, 0, 0x12, ( uint8_t *)&buf );
  if ( rcode ) {
    return ( rcode );
  }
  printProgStr(Dev_Header_str);
  printProgStr(Dev_Length_str);
  print_hex( buf.bLength, 8 );
  printProgStr(Dev_Type_str);
  print_hex( buf.bDescriptorType, 8 );
  printProgStr(Dev_Version_str);
  print_hex( buf.bcdUSB, 16 );
  printProgStr(Dev_Class_str);
  print_hex( buf.bDeviceClass, 8 );
  printProgStr(Dev_Subclass_str);
  print_hex( buf.bDeviceSubClass, 8 );
  printProgStr(Dev_Protocol_str);
  print_hex( buf.bDeviceProtocol, 8 );
  printProgStr(Dev_Pktsize_str);
  print_hex( buf.bMaxPacketSize0, 8 );
  printProgStr(Dev_Vendor_str);
  print_hex( buf.idVendor, 16 );
  printProgStr(Dev_Product_str);
  print_hex( buf.idProduct, 16 );
  printProgStr(Dev_Revision_str);
  print_hex( buf.bcdDevice, 16 );
  printProgStr(Dev_Mfg_str);
  print_hex( buf.iManufacturer, 8 );
  printProgStr(Dev_Prod_str);
  print_hex( buf.iProduct, 8 );
  printProgStr(Dev_Serial_str);
  print_hex( buf.iSerialNumber, 8 );
  printProgStr(Dev_Nconf_str);
  print_hex( buf.bNumConfigurations, 8 );
  num_conf = buf.bNumConfigurations;
  return ( 0 );
}

void printhubdescr(uint8_t *descrptr, uint8_t addr)
{
  HubDescriptor  *pHub = (HubDescriptor*) descrptr;
  uint8_t        len = *((uint8_t*)descrptr);

  printProgStr(PSTR("\r\n\r\nHub Descriptor:\r\n"));
  printProgStr(PSTR("bDescLength:\t\t"));
  Serial.println(pHub->bDescLength, HEX);

  printProgStr(PSTR("bDescriptorType:\t"));
  Serial.println(pHub->bDescriptorType, HEX);

  printProgStr(PSTR("bNbrPorts:\t\t"));
  Serial.println(pHub->bNbrPorts, HEX);

  printProgStr(PSTR("LogPwrSwitchMode:\t"));
  Serial.println(pHub->LogPwrSwitchMode, BIN);

  printProgStr(PSTR("CompoundDevice:\t\t"));
  Serial.println(pHub->CompoundDevice, BIN);

  printProgStr(PSTR("OverCurrentProtectMode:\t"));
  Serial.println(pHub->OverCurrentProtectMode, BIN);

  printProgStr(PSTR("TTThinkTime:\t\t"));
  Serial.println(pHub->TTThinkTime, BIN);

  printProgStr(PSTR("PortIndicatorsSupported:"));
  Serial.println(pHub->PortIndicatorsSupported, BIN);

  printProgStr(PSTR("Reserved:\t\t"));
  Serial.println(pHub->Reserved, HEX);

  printProgStr(PSTR("bPwrOn2PwrGood:\t\t"));
  Serial.println(pHub->bPwrOn2PwrGood, HEX);

  printProgStr(PSTR("bHubContrCurrent:\t"));
  Serial.println(pHub->bHubContrCurrent, HEX);

  for (uint8_t i = 7; i < len; i++)
    print_hex(descrptr[i], 8);

  //for (uint8_t i=1; i<=pHub->bNbrPorts; i++)
  //    PrintHubPortStatus(&Usb, addr, i, 1);
}

uint8_t getconfdescr( uint8_t addr, uint8_t conf )
{
  uint8_t buf[ BUFSIZE ];
  uint8_t* buf_ptr = buf;
  uint8_t rcode;
  uint8_t descr_length;
  uint8_t descr_type;
  uint16_t total_length;
  rcode = Usb.getConfDescr( addr, 0, 4, conf, buf );  //get total length
  LOBYTE( total_length ) = buf[ 2 ];
  HIBYTE( total_length ) = buf[ 3 ];
  if ( total_length > 256 ) {   //check if total length is larger than buffer
    printProgStr(Conf_Trunc_str);
    total_length = 256;
  }
  rcode = Usb.getConfDescr( addr, 0, total_length, conf, buf ); //get the whole descriptor
  while ( buf_ptr < buf + total_length ) { //parsing descriptors
    descr_length = *( buf_ptr );
    descr_type = *( buf_ptr + 1 );
    switch ( descr_type ) {
      case ( USB_DESCRIPTOR_CONFIGURATION ):
        printconfdescr( buf_ptr );
        break;
      case ( USB_DESCRIPTOR_INTERFACE ):
        printintfdescr( buf_ptr );
        break;
      case ( USB_DESCRIPTOR_ENDPOINT ):
        printepdescr( buf_ptr );
        break;
      case 0x29:
        printhubdescr( buf_ptr, addr );
        break;
      default:
        printunkdescr( buf_ptr );
        break;
    }//switch( descr_type
    buf_ptr = ( buf_ptr + descr_length );    //advance buffer pointer
  }//while( buf_ptr <=...
  return ( rcode );
}
/* prints hex numbers with leading zeroes */
// copyright, Peter H Anderson, Baltimore, MD, Nov, '07
// source: http://www.phanderson.com/arduino/arduino_display.html
void print_hex(int v, int num_places)
{
  int mask = 0, n, num_nibbles, digit;

  for (n = 1; n <= num_places; n++) {
    mask = (mask << 1) | 0x0001;
  }
  v = v & mask; // truncate v to specified number of places

  num_nibbles = num_places / 4;
  if ((num_places % 4) != 0) {
    ++num_nibbles;
  }
  do {
    digit = ((v >> (num_nibbles - 1) * 4)) & 0x0f;
    Serial.print(digit, HEX);
  }
  while (--num_nibbles);
}
/* function to print configuration descriptor */
void printconfdescr( uint8_t* descr_ptr )
{
  USB_CONFIGURATION_DESCRIPTOR* conf_ptr = ( USB_CONFIGURATION_DESCRIPTOR* )descr_ptr;
  printProgStr(Conf_Header_str);
  printProgStr(Conf_Totlen_str);
  print_hex( conf_ptr->wTotalLength, 16 );
  printProgStr(Conf_Nint_str);
  print_hex( conf_ptr->bNumInterfaces, 8 );
  printProgStr(Conf_Value_str);
  print_hex( conf_ptr->bConfigurationValue, 8 );
  printProgStr(Conf_String_str);
  print_hex( conf_ptr->iConfiguration, 8 );
  printProgStr(Conf_Attr_str);
  print_hex( conf_ptr->bmAttributes, 8 );
  printProgStr(Conf_Pwr_str);
  print_hex( conf_ptr->bMaxPower, 8 );
  return;
}
/* function to print interface descriptor */
void printintfdescr( uint8_t* descr_ptr )
{
  USB_INTERFACE_DESCRIPTOR* intf_ptr = ( USB_INTERFACE_DESCRIPTOR* )descr_ptr;
  printProgStr(Int_Header_str);
  printProgStr(Int_Number_str);
  print_hex( intf_ptr->bInterfaceNumber, 8 );
  printProgStr(Int_Alt_str);
  print_hex( intf_ptr->bAlternateSetting, 8 );
  printProgStr(Int_Endpoints_str);
  print_hex( intf_ptr->bNumEndpoints, 8 );
  printProgStr(Int_Class_str);
  print_hex( intf_ptr->bInterfaceClass, 8 );
  printProgStr(Int_Subclass_str);
  print_hex( intf_ptr->bInterfaceSubClass, 8 );
  printProgStr(Int_Protocol_str);
  print_hex( intf_ptr->bInterfaceProtocol, 8 );
  printProgStr(Int_String_str);
  print_hex( intf_ptr->iInterface, 8 );
  return;
}
/* function to print endpoint descriptor */
void printepdescr( uint8_t* descr_ptr )
{
  USB_ENDPOINT_DESCRIPTOR* ep_ptr = ( USB_ENDPOINT_DESCRIPTOR* )descr_ptr;
  printProgStr(End_Header_str);
  printProgStr(End_Address_str);
  print_hex( ep_ptr->bEndpointAddress, 8 );
  printProgStr(End_Attr_str);
  print_hex( ep_ptr->bmAttributes, 8 );
  printProgStr(End_Pktsize_str);
  print_hex( ep_ptr->wMaxPacketSize, 16 );
  printProgStr(End_Interval_str);
  print_hex( ep_ptr->bInterval, 8 );

  return;
}
/*function to print unknown descriptor */
void printunkdescr( uint8_t* descr_ptr )
{
  uint8_t length = *descr_ptr;
  uint8_t i;
  printProgStr(Unk_Header_str);
  printProgStr(Unk_Length_str);
  print_hex( *descr_ptr, 8 );
  printProgStr(Unk_Type_str);
  print_hex( *(descr_ptr + 1 ), 8 );
  printProgStr(Unk_Contents_str);
  descr_ptr += 2;
  for ( i = 0; i < length; i++ ) {
    print_hex( *descr_ptr, 8 );
    descr_ptr++;
  }
}


/* Print a string from Program Memory directly to save RAM */
void printProgStr(const char* str)
{
  char c;
  if (!str) return;
  while ((c = pgm_read_byte(str++)))
    Serial.print(c);
}

UsbCore.h Fix for Wemos Mini D1

Arduino
/* Copyright (C) 2011 Circuits At Home, LTD. All rights reserved.

This software may be distributed and modified under the terms of the GNU
General Public License version 2 (GPL2) as published by the Free Software
Foundation and appearing in the file GPL2.TXT included in the packaging of
this file. Please note that GPL2 Section 2[b] requires that all works based
on this software must also be made publicly available under the terms of
the GPL2 ("Copyleft").

Contact information
-------------------

Circuits At Home, LTD
Web      :  http://www.circuitsathome.com
e-mail   :  support@circuitsathome.com
 */

#if !defined(_usb_h_) || defined(USBCORE_H)
#error "Never include UsbCore.h directly; include Usb.h instead"
#else
#define USBCORE_H

// Not used anymore? If anyone uses this, please let us know so that this may be
// moved to the proper place, settings.h.
//#define USB_METHODS_INLINE

/* shield pins. First parameter - SS pin, second parameter - INT pin */
#ifdef BOARD_BLACK_WIDDOW
typedef MAX3421e<P6, P3> MAX3421E; // Black Widow
#elif defined(CORE_TEENSY) && (defined(__AVR_AT90USB646__) || defined(__AVR_AT90USB1286__))
#if EXT_RAM
typedef MAX3421e<P20, P7> MAX3421E; // Teensy++ 2.0 with XMEM2
#else
typedef MAX3421e<P9, P8> MAX3421E; // Teensy++ 1.0 and 2.0
#endif
#elif defined(BOARD_MEGA_ADK)
typedef MAX3421e<P53, P54> MAX3421E; // Arduino Mega ADK
#elif defined(ARDUINO_AVR_BALANDUINO)
typedef MAX3421e<P20, P19> MAX3421E; // Balanduino
#elif defined(__ARDUINO_X86__) && PLATFORM_ID == 0x06
typedef MAX3421e<P3, P2> MAX3421E; // The Intel Galileo supports much faster read and write speed at pin 2 and 3
#elif defined(ESP8266)
typedef MAX3421e<P0, P5> MAX3421E; // ESP8266 boards
#elif defined(ESP32)
typedef MAX3421e<P5, P17> MAX3421E; // ESP32 boards
#else
typedef MAX3421e<P10, P9> MAX3421E; // Official Arduinos (UNO, Duemilanove, Mega, 2560, Leonardo, Due etc.), Intel Edison, Intel Galileo 2 or Teensy 2.0 and 3.x
#endif

/* Common setup data constant combinations  */
#define bmREQ_GET_DESCR     USB_SETUP_DEVICE_TO_HOST|USB_SETUP_TYPE_STANDARD|USB_SETUP_RECIPIENT_DEVICE     //get descriptor request type
#define bmREQ_SET           USB_SETUP_HOST_TO_DEVICE|USB_SETUP_TYPE_STANDARD|USB_SETUP_RECIPIENT_DEVICE     //set request type for all but 'set feature' and 'set interface'
#define bmREQ_CL_GET_INTF   USB_SETUP_DEVICE_TO_HOST|USB_SETUP_TYPE_CLASS|USB_SETUP_RECIPIENT_INTERFACE     //get interface request type

// D7           data transfer direction (0 - host-to-device, 1 - device-to-host)
// D6-5         Type (0- standard, 1 - class, 2 - vendor, 3 - reserved)
// D4-0         Recipient (0 - device, 1 - interface, 2 - endpoint, 3 - other, 4..31 - reserved)

// USB Device Classes
#define USB_CLASS_USE_CLASS_INFO        0x00    // Use Class Info in the Interface Descriptors
#define USB_CLASS_AUDIO                 0x01    // Audio
#define USB_CLASS_COM_AND_CDC_CTRL      0x02    // Communications and CDC Control
#define USB_CLASS_HID                   0x03    // HID
#define USB_CLASS_PHYSICAL              0x05    // Physical
#define USB_CLASS_IMAGE                 0x06    // Image
#define USB_CLASS_PRINTER               0x07    // Printer
#define USB_CLASS_MASS_STORAGE          0x08    // Mass Storage
#define USB_CLASS_HUB                   0x09    // Hub
#define USB_CLASS_CDC_DATA              0x0a    // CDC-Data
#define USB_CLASS_SMART_CARD            0x0b    // Smart-Card
#define USB_CLASS_CONTENT_SECURITY      0x0d    // Content Security
#define USB_CLASS_VIDEO                 0x0e    // Video
#define USB_CLASS_PERSONAL_HEALTH       0x0f    // Personal Healthcare
#define USB_CLASS_DIAGNOSTIC_DEVICE     0xdc    // Diagnostic Device
#define USB_CLASS_WIRELESS_CTRL         0xe0    // Wireless Controller
#define USB_CLASS_MISC                  0xef    // Miscellaneous
#define USB_CLASS_APP_SPECIFIC          0xfe    // Application Specific
#define USB_CLASS_VENDOR_SPECIFIC       0xff    // Vendor Specific

// Additional Error Codes
#define USB_DEV_CONFIG_ERROR_DEVICE_NOT_SUPPORTED       0xD1
#define USB_DEV_CONFIG_ERROR_DEVICE_INIT_INCOMPLETE     0xD2
#define USB_ERROR_UNABLE_TO_REGISTER_DEVICE_CLASS       0xD3
#define USB_ERROR_OUT_OF_ADDRESS_SPACE_IN_POOL          0xD4
#define USB_ERROR_HUB_ADDRESS_OVERFLOW                  0xD5
#define USB_ERROR_ADDRESS_NOT_FOUND_IN_POOL             0xD6
#define USB_ERROR_EPINFO_IS_NULL                        0xD7
#define USB_ERROR_INVALID_ARGUMENT                      0xD8
#define USB_ERROR_CLASS_INSTANCE_ALREADY_IN_USE         0xD9
#define USB_ERROR_INVALID_MAX_PKT_SIZE                  0xDA
#define USB_ERROR_EP_NOT_FOUND_IN_TBL                   0xDB
#define USB_ERROR_CONFIG_REQUIRES_ADDITIONAL_RESET      0xE0
#define USB_ERROR_FailGetDevDescr                       0xE1
#define USB_ERROR_FailSetDevTblEntry                    0xE2
#define USB_ERROR_FailGetConfDescr                      0xE3
#define USB_ERROR_TRANSFER_TIMEOUT                      0xFF

#define USB_XFER_TIMEOUT        5000    // (5000) USB transfer timeout in milliseconds, per section 9.2.6.1 of USB 2.0 spec
//#define USB_NAK_LIMIT         32000   // NAK limit for a transfer. 0 means NAKs are not counted
#define USB_RETRY_LIMIT         3       // 3 retry limit for a transfer
#define USB_SETTLE_DELAY        200     // settle delay in milliseconds

#define USB_NUMDEVICES          16      //number of USB devices
//#define HUB_MAX_HUBS          7       // maximum number of hubs that can be attached to the host controller
#define HUB_PORT_RESET_DELAY    20      // hub port reset delay 10 ms recomended, can be up to 20 ms

/* USB state machine states */
#define USB_STATE_MASK                                      0xf0

#define USB_STATE_DETACHED                                  0x10
#define USB_DETACHED_SUBSTATE_INITIALIZE                    0x11
#define USB_DETACHED_SUBSTATE_WAIT_FOR_DEVICE               0x12
#define USB_DETACHED_SUBSTATE_ILLEGAL                       0x13
#define USB_ATTACHED_SUBSTATE_SETTLE                        0x20
#define USB_ATTACHED_SUBSTATE_RESET_DEVICE                  0x30
#define USB_ATTACHED_SUBSTATE_WAIT_RESET_COMPLETE           0x40
#define USB_ATTACHED_SUBSTATE_WAIT_SOF                      0x50
#define USB_ATTACHED_SUBSTATE_WAIT_RESET                    0x51
#define USB_ATTACHED_SUBSTATE_GET_DEVICE_DESCRIPTOR_SIZE    0x60
#define USB_STATE_ADDRESSING                                0x70
#define USB_STATE_CONFIGURING                               0x80
#define USB_STATE_RUNNING                                   0x90
#define USB_STATE_ERROR                                     0xa0

class USBDeviceConfig {
public:

        virtual uint8_t Init(uint8_t parent __attribute__((unused)), uint8_t port __attribute__((unused)), bool lowspeed __attribute__((unused))) {
                return 0;
        }

        virtual uint8_t ConfigureDevice(uint8_t parent __attribute__((unused)), uint8_t port __attribute__((unused)), bool lowspeed __attribute__((unused))) {
                return 0;
        }

        virtual uint8_t Release() {
                return 0;
        }

        virtual uint8_t Poll() {
                return 0;
        }

        virtual uint8_t GetAddress() {
                return 0;
        }

        virtual void ResetHubPort(uint8_t port __attribute__((unused))) {
                return;
        } // Note used for hubs only!

        virtual bool VIDPIDOK(uint16_t vid __attribute__((unused)), uint16_t pid __attribute__((unused))) {
                return false;
        }

        virtual bool DEVCLASSOK(uint8_t klass __attribute__((unused))) {
                return false;
        }

        virtual bool DEVSUBCLASSOK(uint8_t subklass __attribute__((unused))) {
                return true;
        }

};

/* USB Setup Packet Structure   */
typedef struct {

        union { // offset   description
                uint8_t bmRequestType; //   0      Bit-map of request type

                struct {
                        uint8_t recipient : 5; //          Recipient of the request
                        uint8_t type : 2; //          Type of request
                        uint8_t direction : 1; //          Direction of data X-fer
                } __attribute__((packed));
        } ReqType_u;
        uint8_t bRequest; //   1      Request

        union {
                uint16_t wValue; //   2      Depends on bRequest

                struct {
                        uint8_t wValueLo;
                        uint8_t wValueHi;
                } __attribute__((packed));
        } wVal_u;
        uint16_t wIndex; //   4      Depends on bRequest
        uint16_t wLength; //   6      Depends on bRequest
} __attribute__((packed)) SETUP_PKT, *PSETUP_PKT;



// Base class for incoming data parser

class USBReadParser {
public:
        virtual void Parse(const uint16_t len, const uint8_t *pbuf, const uint16_t &offset) = 0;
};

class USB : public MAX3421E {
        AddressPoolImpl<USB_NUMDEVICES> addrPool;
        USBDeviceConfig* devConfig[USB_NUMDEVICES];
        uint8_t bmHubPre;

public:
        USB(void);

        void SetHubPreMask() {
                bmHubPre |= bmHUBPRE;
        };

        void ResetHubPreMask() {
                bmHubPre &= (~bmHUBPRE);
        };

        AddressPool& GetAddressPool() {
                return (AddressPool&)addrPool;
        };

        uint8_t RegisterDeviceClass(USBDeviceConfig *pdev) {
                for(uint8_t i = 0; i < USB_NUMDEVICES; i++) {
                        if(!devConfig[i]) {
                                devConfig[i] = pdev;
                                return 0;
                        }
                }
                return USB_ERROR_UNABLE_TO_REGISTER_DEVICE_CLASS;
        };

        void ForEachUsbDevice(UsbDeviceHandleFunc pfunc) {
                addrPool.ForEachUsbDevice(pfunc);
        };
        uint8_t getUsbTaskState(void);
        void setUsbTaskState(uint8_t state);

        EpInfo* getEpInfoEntry(uint8_t addr, uint8_t ep);
        uint8_t setEpInfoEntry(uint8_t addr, uint8_t epcount, EpInfo* eprecord_ptr);

        /* Control requests */
        uint8_t getDevDescr(uint8_t addr, uint8_t ep, uint16_t nbytes, uint8_t* dataptr);
        uint8_t getConfDescr(uint8_t addr, uint8_t ep, uint16_t nbytes, uint8_t conf, uint8_t* dataptr);

        uint8_t getConfDescr(uint8_t addr, uint8_t ep, uint8_t conf, USBReadParser *p);

        uint8_t getStrDescr(uint8_t addr, uint8_t ep, uint16_t nbytes, uint8_t index, uint16_t langid, uint8_t* dataptr);
        uint8_t setAddr(uint8_t oldaddr, uint8_t ep, uint8_t newaddr);
        uint8_t setConf(uint8_t addr, uint8_t ep, uint8_t conf_value);
        /**/
        uint8_t ctrlData(uint8_t addr, uint8_t ep, uint16_t nbytes, uint8_t* dataptr, bool direction);
        uint8_t ctrlStatus(uint8_t ep, bool direction, uint16_t nak_limit);
        uint8_t inTransfer(uint8_t addr, uint8_t ep, uint16_t *nbytesptr, uint8_t* data, uint8_t bInterval = 0);
        uint8_t outTransfer(uint8_t addr, uint8_t ep, uint16_t nbytes, uint8_t* data);
        uint8_t dispatchPkt(uint8_t token, uint8_t ep, uint16_t nak_limit);

        void Task(void);

        uint8_t DefaultAddressing(uint8_t parent, uint8_t port, bool lowspeed);
        uint8_t Configuring(uint8_t parent, uint8_t port, bool lowspeed);
        uint8_t ReleaseDevice(uint8_t addr);

        uint8_t ctrlReq(uint8_t addr, uint8_t ep, uint8_t bmReqType, uint8_t bRequest, uint8_t wValLo, uint8_t wValHi,
                uint16_t wInd, uint16_t total, uint16_t nbytes, uint8_t* dataptr, USBReadParser *p);

private:
        void init();
        uint8_t SetAddress(uint8_t addr, uint8_t ep, EpInfo **ppep, uint16_t *nak_limit);
        uint8_t OutTransfer(EpInfo *pep, uint16_t nak_limit, uint16_t nbytes, uint8_t *data);
        uint8_t InTransfer(EpInfo *pep, uint16_t nak_limit, uint16_t *nbytesptr, uint8_t *data, uint8_t bInterval = 0);
        uint8_t AttemptConfig(uint8_t driver, uint8_t parent, uint8_t port, bool lowspeed);
};

#if 0 //defined(USB_METHODS_INLINE)
//get device descriptor

inline uint8_t USB::getDevDescr(uint8_t addr, uint8_t ep, uint16_t nbytes, uint8_t* dataptr) {
        return ( ctrlReq(addr, ep, bmREQ_GET_DESCR, USB_REQUEST_GET_DESCRIPTOR, 0x00, USB_DESCRIPTOR_DEVICE, 0x0000, nbytes, dataptr));
}
//get configuration descriptor

inline uint8_t USB::getConfDescr(uint8_t addr, uint8_t ep, uint16_t nbytes, uint8_t conf, uint8_t* dataptr) {
        return ( ctrlReq(addr, ep, bmREQ_GET_DESCR, USB_REQUEST_GET_DESCRIPTOR, conf, USB_DESCRIPTOR_CONFIGURATION, 0x0000, nbytes, dataptr));
}
//get string descriptor

inline uint8_t USB::getStrDescr(uint8_t addr, uint8_t ep, uint16_t nuint8_ts, uint8_t index, uint16_t langid, uint8_t* dataptr) {
        return ( ctrlReq(addr, ep, bmREQ_GET_DESCR, USB_REQUEST_GET_DESCRIPTOR, index, USB_DESCRIPTOR_STRING, langid, nuint8_ts, dataptr));
}
//set address

inline uint8_t USB::setAddr(uint8_t oldaddr, uint8_t ep, uint8_t newaddr) {
        return ( ctrlReq(oldaddr, ep, bmREQ_SET, USB_REQUEST_SET_ADDRESS, newaddr, 0x00, 0x0000, 0x0000, NULL));
}
//set configuration

inline uint8_t USB::setConf(uint8_t addr, uint8_t ep, uint8_t conf_value) {
        return ( ctrlReq(addr, ep, bmREQ_SET, USB_REQUEST_SET_CONFIGURATION, conf_value, 0x00, 0x0000, 0x0000, NULL));
}

#endif // defined(USB_METHODS_INLINE)

#endif /* USBCORE_H */

Credits

labsud

labsud

6 projects • 8 followers
madnerd

madnerd

6 projects • 7 followers
Thanks to DEKO and Circuits@Home.

Comments
