Backpack Alarm

Using an Adafruit compass/accelerometer and an 80-decibel alarm, this project prevents thieves from stealing your backpack.

EasyFull instructions provided2 hours3,182
Backpack Alarm

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Adafruit Triple-axis Accelerometer+Magnetometer (Compass) Board - LSM303
×1
SparkFun Large Piezo Alarm - 3kHz
×1
9V battery (generic)
9V battery (generic)
×1
6.35mm female audio jack (switched)
×1
6.35mm audio plug
×1
Male/Female Jumper Wires
Male/Female Jumper Wires
×1

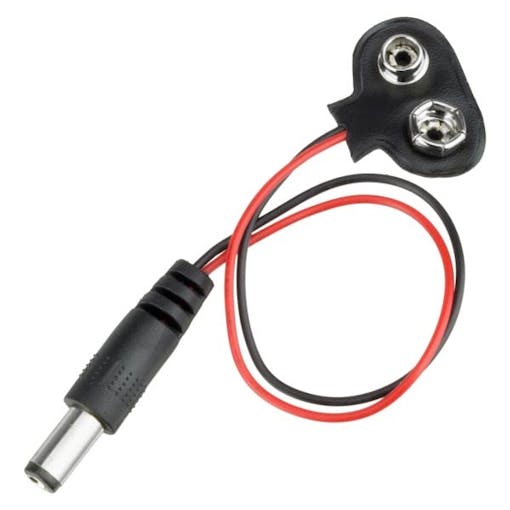

9V to Barrel Jack Connector
9V to Barrel Jack Connector
×1

Software apps and online services

Arduino IDE
Arduino IDE

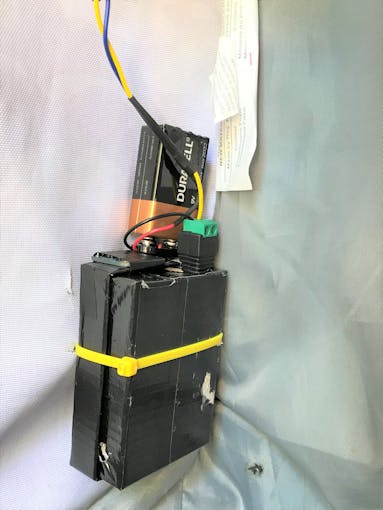

Story

Read more

Schematics

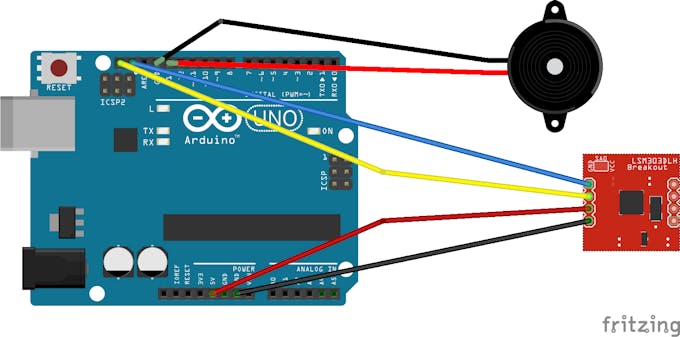

Schematic for Arduino

To the Compass:
Blue - SDA
Yellow - SDL
Black - GND
Red - VIN
Alarm 5k8toxyye8

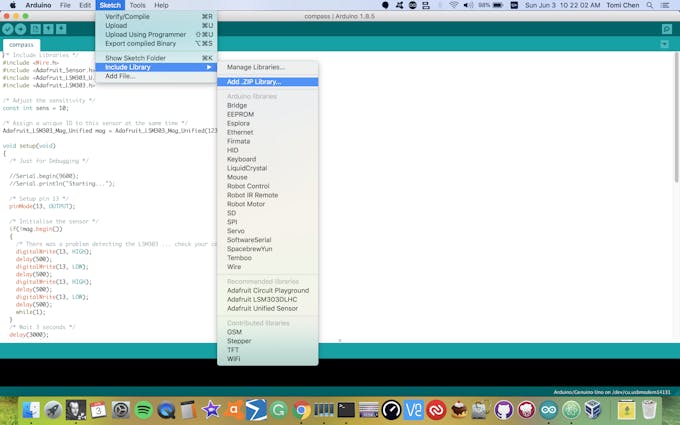

Code

Code

Arduino
Arduino code
/* Include Libraries */
#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_LSM303_U.h>
#include <Adafruit_LSM303.h>

/* Adjust the sensitivity */
const int sens = 10;

/* Assign a unique ID to this sensor at the same time */
Adafruit_LSM303_Mag_Unified mag = Adafruit_LSM303_Mag_Unified(12345);

void setup(void)
{
  /* Just for Debugging */

  //Serial.begin(9600);
  //Serial.println("Starting...");

  /* Setup pin 13 */
  pinMode(13, OUTPUT);

  /* Initialise the sensor */
  if(!mag.begin())
  {
    /* There was a problem detecting the LSM303 ... check your connections */
    digitalWrite(13, HIGH);
    delay(500);
    digitalWrite(13, LOW);
    delay(500);
    digitalWrite(13, HIGH);
    delay(500);
    digitalWrite(13, LOW);
    delay(500);
    while(1);
  }
  /* Wait 5 seconds */
  delay(5000);

  /* Alert when started */
  digitalWrite(13, HIGH);
  delay(500);
  digitalWrite(13, LOW);
}

/* function for getting the sensor value */
int getDeg(void){
  /* Get a new sensor event */
  sensors_event_t event;
  mag.getEvent(&event);

  float Pi = 3.14159;

  /* Calculate the angle of the vector y,x */
  float heading = int((atan2(event.magnetic.y,event.magnetic.x) * 180) / Pi);

  /* Normalize to 0-360 */
  if (heading < 0)
  {
    heading = 360 + heading;
  }
  return heading;
}

void loop(void)
{

  /* get sensor values */
  int oldDeg = getDeg();
  delay(1000);
  int newDeg = getDeg();

  /* detect if moved */
  if (newDeg < (oldDeg-sens) && oldDeg != 0 && newDeg != 0) {
    /* sound the alarm */
    digitalWrite(13, HIGH);

    /* Just for debugging */
    Serial.println("Triggered");
    Serial.println("");

  }else if (newDeg > (oldDeg+sens) && oldDeg!= 0 && newDeg != 0) {
    /* sound the alarm */
    digitalWrite(13, HIGH);

    /* Just for debugging */
    Serial.println("Triggered");
    Serial.println("");

  }
  /* Just for debugging /
  //Serial.print("New:");
  //Serial.println(newDeg);
  //Serial.print("Old:");
  //Serial.println(oldDeg);
  //Serial.println("");

}
