Send Data Across Tasks with Energia and Galaxia

Energia IDE and Galaxia Library

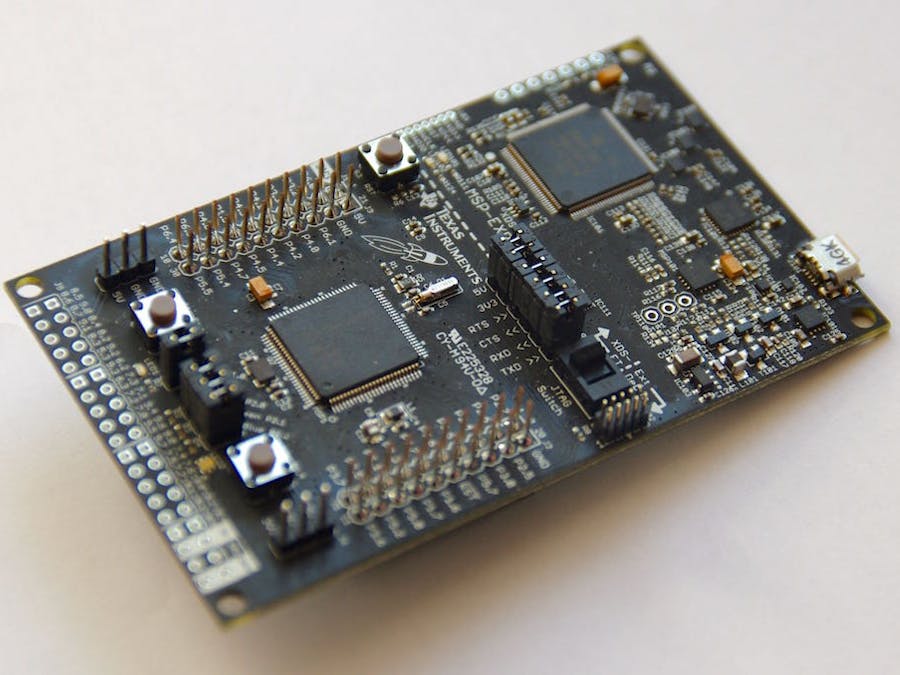

The Arduino-compatible IDE or integrated development environment for the LaunchPads is called Energia. Energia also includes Energia MT for selected boards, including the MSP432 LaunchPad, the CC3200 LaunchPad and the CC2650 SensorTag..

Energia MT stands for Energia Multi-Tasking and is based on Texas Instruments RTOS, aka. Real Time Operating System. Real-time means each task is completed within a determined period of time, and RTOS is an operating system built on it.

I've developed libraries which encapsulate the RTOS elements into classes with a consistent and minimal set of functions. The goal is to provide libraries with the same ease of use as the standard classes (e.g. SPI, I²C, Serial) provided by the Wiring / Arduino framework. All the libraries are bundled in one single package called Galaxia, and are included in the Energia distribution.

Problem: How to Send and Manage Data Across Tasks?

Let's consider three tasks:

• Two tasks and senders and send messages.
• The third task is the client, receives and prints the messages.

We want the message to include a timestamp and a text. Here is the corresponding structure.

// myMessage type for mailbox
typedef struct myMessage_t
{
	uint32_t chrono;
	char buffer[10];
};

Mailbox with Two Senders and One Receiver

The mailbox is defined by two parameters:

• the kind of data, here the structure myMessage_t
• the number of slots, here 4 set during initialisation with begin().

Contrary to the Queue element that stores pointers, the Mailbox element copies and stores the messages inside. This provides a safe and clean way for sending data from one task to another.

// myMessage type for mailbox
typedef struct myMessage_t
{
	uint32_t chrono;
	char buffer[10];
};


// Number of messages on the mailbox
#define NUMBER 4


// Mailbox post modality: either BIOS_WAIT_FOREVER or BIOS_NO_WAIT.
#define MODALITY BIOS_WAIT_FOREVER


// myMailbox
Mailbox<myMessage_t> myMailbox;

The Mailbox element shares the same logic and same limitation with the Event element. The Mailbox element can have multiple senders but only one receiver.

The Two Senders

The first sender includes a setup() function to initialise the Serial port and the mailbox myMailBox. Here, the mailbox is set with NUMBER = 4 slots.

void MailboxSender1_setup()
{
    Serial.begin(115200);

    myMailbox.begin(NUMBER); // default = 16
}

The two senders share the same code for the loop() function.

void MailboxSender1_loop()
{
    messageS.chrono = millis();
    strcpy(messageS.buffer, "from 1");

    // Mailbox post modality: either BIOS_WAIT_FOREVER or BIOS_NO_WAIT.
    bool result = myMailbox.post(messageS, MODALITY);

    delay(300);
}

The Client

The client loop() waits for a message to be available, and prints it to the Serial port.

void MailboxClient_loop()
{
    myMailbox.waitFor(messageR);
    mySemaphore.waitFor();
    Serial.print("*<\t");
    Serial.print(millis(), DEC);
    Serial.print("\tRX\t");
    Serial.print(messageB.chrono, DEC);
    Serial.print("\t");
    Serial.print(messageB.buffer);
    Serial.print("\t");
    Serial.print(myMailbox.available());
    Serial.println("\t:\t");
    mySemaphore.post();
    delay(300);
}

The available() function returns the number of messages on the mailbox to be read. 0 means the mailbox is empty.

The MODALITY Parameter

If there's no slot available and one client wants to send a message, what happens? How to manage it?

The solution is the important parameter MODALITY. There are two values: BIOS_WAIT_FOREVER and BIOS_NO_WAIT.

Depending on the MODALITY value,

• If MODALITY is set to BIOS_WAIT_FOREVER, the post() function waits until a slot is available, and then posts the message and returns TRUE.

?   Chrono Action       Message   Available Result
?                  .chrono .buffer
1>     6    TX     6       from 1     1      1
*<     100  RX     6       from 1     1
2>     102  TX     100     from 2     1      1
2>     304  TX     304     from 2     2      1
*<     402  RX     100     from 2     1
2>     506  TX     506     from 2     2      1
1>     508  TX     508     from 1     3      1
*<     704  RX     304     from 2     2
2>     708  TX     708     from 2     3      1
2>     910  TX     910     from 2     4      1
*<     1006 RX     506     from 2     3
1>     1010 TX     1010    from 1     4      1
*<     1308 RX     508     from 1     4
2>     1310 TX     1112    from 2     4      1
*<     1610 RX     708     from 2     4
1>     1612 TX     1512    from 1     4      1
*<     1912 RX     910     from 2     4
2>     1914 TX     1513    from 2     4      1
*<     2214 RX     1010    from 1     4
1>     2216 TX     2115    from 1     4      1
*<     2516 RX     1112    from 2     4
2>     2518 TX     211     from 2     4      1

• If MODALITY is set to BIOS_NO_WAIT, the post() function posts the message if a slot is available and return TRUE, otherwise return FALSE as the message hasn't been posted.

?   Chrono Action       Message   Available Result
?                .chrono    .buffer
1>     6    TX     6        from 1     1      1
*<     100  RX     6        from 1     1      1
2>     102  TX     100      from 2     1      1
2>     304  TX     304      from 2     2      1
*<     402  RX     100      from 2     1      1
2>     506  TX     506      from 2     2      1
1>     508  TX     508      from 1     3      1
*<     704  RX     304      from 2     2      1
2>     708  TX     708      from 2     3      1
2>     910  TX     910      from 2     4      1
*<     1006 RX     506      from 2     3      0 <= not posted
1>     1010 TX     1010     from 1     4      1
2>     1112 TX     1112     from 2     4      0 <= not posted
*<     1308 RX     508      from 1     3      0 <= not posted
2>     1314 TX     1314     from 2     4      1
1>     1512 TX     1512     from 1     4      0 <= not posted
2>     1516 TX     1516     from 2     4      0 <= not posted
*<     1610 RX     708      from 2     3
2>     1718 TX     1718     from 2     4      1

Compare the messages marked as <= not posted and the timestamps between the two logs.

Conclusion

The option BIOS_NO_WAIT allows the post() process to be non-blocking, at the expense of loosing messages. So the returned value should be tested.
