Automatic Plant Watering System Using Arduino Uno

This system monitors the moisture of soil and waters it by 5v DC motor based water pump when needed.

IntermediateProtip2 hours1,516
Automatic Plant Watering System Using Arduino Uno

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
SparkFun Soil Moisture Sensor (with Screw Terminals)
SparkFun Soil Moisture Sensor (with Screw Terminals)
×1
1N4007 – High Voltage, High Current Rated Diode
1N4007 – High Voltage, High Current Rated Diode
×1
General Purpose Transistor NPN
General Purpose Transistor NPN
×1
Male/Female Jumper Wires
Male/Female Jumper Wires
×1
Resistor 221 ohm
Resistor 221 ohm
×1

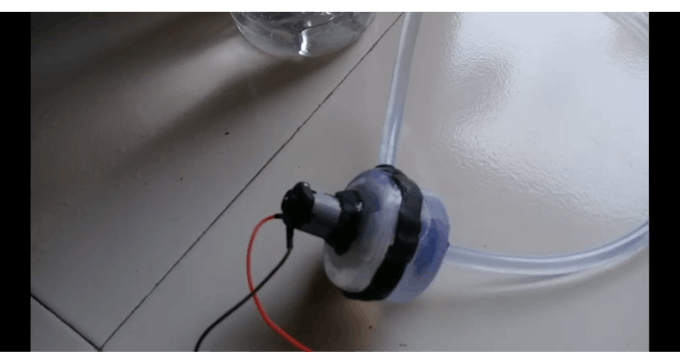

5v DC Motor
×1
Water tube
×1
Glue gun
×1
Weter container
×1
Bread board
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Fritzing Diagram of the system

I had used black colored wire for ground, red-colored wire for VCC and blue colored wires for arduino inputs.
Capture 5uektpi7bg

Code

Automatic plant watering system code

C/C++
int WATERPUMP = 13; //motor pump connected to pin 13
int sensor = 8; //sensor digital pin vonnected to pin 8
int val; //This variable stores the value received from Soil moisture sensor.

void setup() {

  pinMode(13,OUTPUT); //Set pin 13 as OUTPUT pin
  pinMode(8,INPUT); //Set pin 8 as input pin, to receive data from Soil moisture sensor.
  //Initialize serial and wait for port to open:
  Serial.begin(9600); // opens serial port, sets data rate to 9600 bps
  while (! Serial);// wait for serial port to connect. Needed for native USB
  Serial.println("Speed 0 to 255");
}

void loop()
  {
  if (Serial.available()) //loop to operate motor
  {
    int speed = Serial.parseInt(); // to read the number entered as text in the Serial Monitor
    if (speed >= 0 && speed <= 255)
    {
      analogWrite(WATERPUMP, speed);// tuns on the motor at specified speed
    }
  }
  val = digitalRead(8);  //Read data from soil moisture sensor
  if(val == LOW)
  {
  digitalWrite(13,LOW); //if soil moisture sensor provides LOW value send LOW value to motor pump and motor pump goes off
  }
  else
  {
  digitalWrite(13,HIGH); //if soil moisture sensor provides HIGH value send HIGH value to motor pump and motor pump get on
  }
  delay(400); //Wait for few second and then continue the loop.
}
