Last time I gave a talk about the Internet of Things I wished I had a device to demonstrate to the audience what I was talking about.

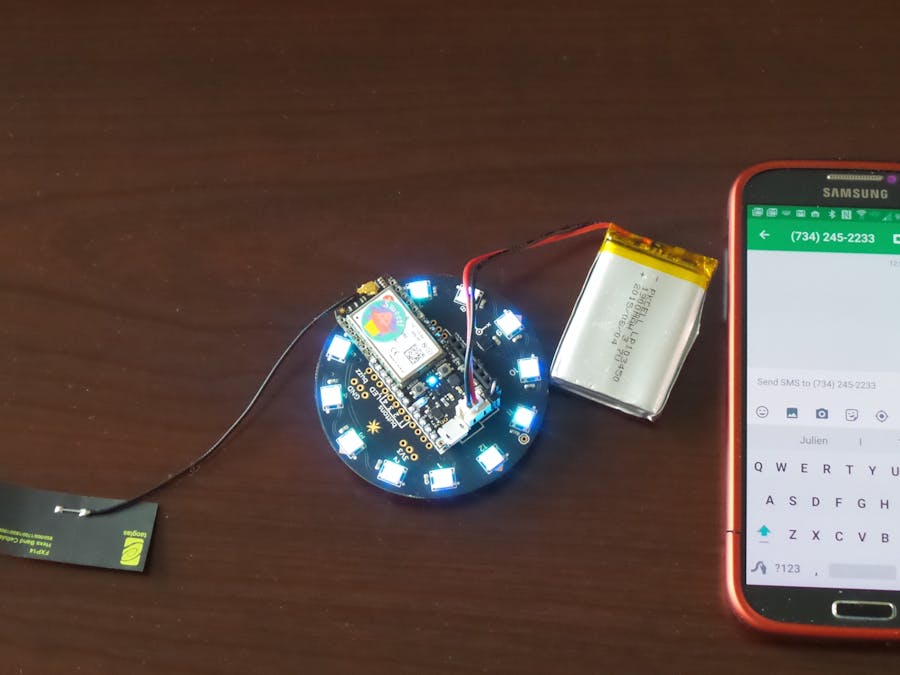

I took a Particle Internet Button, which consists a ring of color LEDs, 4 buttons, an accelerometer and a buzzer, added a cellular Particle Electron and hooked it up to Twilio so you could text the name of a Crayola color name to see the ring change colors.
Hardware SurgeryThe first challenge was that the Internet Button is designed for the Particle Photon which is shorter than the Electron. I had to modify both the Electron and the Internet Button to put them together.
I desoldered the 12 back pins on the Electron (B0 to B5, C0 to C5). I also had to move the Internet Button LED 6 to position 12 to make room for the SIM card holder on the Electron.
Electron with 12 missing legs to fit in the button
At this point the Electron fit, but the LED didn't light up because they had no power. I had to put a diode in between the lithium battery pin on the Electron and the LED power trace (VIN). The diode is there to prevent short circuiting the USB power to the lithium battery if both are plugged at the same time.
Diode connecting the lithium battery to the LED power
The information flows like this:
SMS -> Twilio -> Webhook running on hook.io -> Particle Electron
The Webhook is a Javascript program that converts the Crayola color names likes Razzle Dazzle Rose and Atomic Tangerine to red, green, blue and publishes a light_demo/color event to the Particle cloud.
The Electron subscribes to the light_demo/color event and animates the ring of LEDs.
Start by creating an account at hook.io to be able to quickly write Javascript code that will run when a URL is accessed. My hook.io username is monkbroc and I created the webhook light_demo so my webhook URL is https://hook.io/monkbroc/light_demo
The Javascript code that will receive the SMS from Twilio, translate the color and publish the event to the Particle cloud is attached at the end.
Next create a free account at Twilio and add a phone number with SMS capabilities. Tell Twilio to forward incoming SMS to the webhook above (https://hook.io/monkbroc/light_demo).
Finally, program the Electron with the Internet Button library and the code to subscribe to the color change event. The code for the Electron is attached at the end.
The firmware waits for an event, then turns off the LEDs one by one, then turns them back on with the new color.
The Internet Button a great device to get your creativity going when you're in WiFi range and now with an Electron I can take it anywhere!
Incoming SMS webhook
JavaScriptPaste this to a new hook.io webhook called light_demo
You'll connect the URL of this webhook to Twilio
You'll connect the URL of this webhook to Twilio
module['exports'] = function (hook) {
// Access the Particle API to publish color change event
var Particle = require('particle-api-js');
// Make easy HTTP requests in Node.js
var request = require('request');
// Check that the SMS came from my Twilio account
function authenticMessage(params) {
return params.AccountSid === hook.env.TWILIO_ACCOUNTID;
}
var twilioResponse = '<?xml version="1.0" encoding="UTF-8"?><Response></Response>';
var particle = new Particle();
var params = hook.params;
console.log("Got request");
// Is the message from Twilio?
if(authenticMessage(params)) {
hook.res.setHeader('Content-Type', 'application/xml');
// The text of the SMS is params.Body
var color = params.Body;
console.log("Authentic message. Color " + color);
// Ask another webhook to translate the name to the rgb color
request("https://hook.io/monkbroc/crayola/"+color, function(error, status, colorCode) {
console.log("Got color code " + colorCode);
// Publish an event to the Particle cloud with the rgb color
particle.publishEvent({ name: "light_demo/color", data: colorCode.trim(), auth: hook.env.PARTICLE_API_TOKEN })
.then(function () {
console.log("Sent " + colorCode);
// Tell Twilio everything was OK
hook.res.end(twilioResponse);
}).catch(function (err) {
console.error("Error " + JSON.stringify(err));
hook.res.end(twilioResponse);
});
});
} else {
hook.res.end("Nothing to do");
}
};
#include "InternetButton.h"
#include "math.h"
//----------------- Button ----------------//
uint8_t pin = 3;
uint8_t b1 = 4;
uint8_t b2 = 5;
uint8_t b3 = 6;
uint8_t b4 = 7;
Adafruit_NeoPixel ring = Adafruit_NeoPixel(PIXEL_COUNT, pin, PIXEL_TYPE);
ADXL362 accelerometer;
InternetButton::InternetButton(){
}
void InternetButton::begin(){
ring.begin();
ring.show();
accelerometer.begin(); // Setup SPI protocol, issue device soft reset
accelerometer.beginMeasure(); // Switch ADXL362 to measure mode
accelerometer.checkAllControlRegs(); // Burst Read all Control Registers, to check for proper setup
pinMode(b1, INPUT_PULLUP);
pinMode(b2, INPUT_PULLUP);
pinMode(b3, INPUT_PULLUP);
pinMode(b4, INPUT_PULLUP);
}
void InternetButton::begin(int i){
if(i == 1 || i == 0){
pin = 17;
b1 = 1;
b2 = 2;
b3 = 3;
b4 = 4;
}
ring.begin();
ring.setPin(pin);
ring.show();
accelerometer.begin(); // Setup SPI protocol, issue device soft reset
accelerometer.beginMeasure(); // Switch ADXL362 to measure mode
accelerometer.checkAllControlRegs(); // Burst Read all Control Registers, to check for proper setup
pinMode(b1, INPUT_PULLUP);
pinMode(b2, INPUT_PULLUP);
pinMode(b3, INPUT_PULLUP);
pinMode(b4, INPUT_PULLUP);
}
void InternetButton::ledOn(uint8_t i, uint8_t r, uint8_t g, uint8_t b){
//i-1 shifts the location from human readable to the right index for the LEDs
if(i == 12){
ring.setPixelColor(0, ring.Color(r,g,b));
ring.setPixelColor(10, ring.Color(r,g,b));
}
else{
ring.setPixelColor(i-1, ring.Color(r,g,b));
}
ring.show();
}
void InternetButton::smoothLedOn(float i, uint8_t r, uint8_t g, uint8_t b){
//uint8_t intI = lrintf(i);
//Serial.print("intI: ");
//Serial.println(intI);
//float differ = i-(float)intI + 0.5;
//Serial.print("differ: ");
//Serial.println(differ);
float tempI;
float differ = modff(i, &tempI);
uint8_t intI = (uint8_t)tempI;
// checks to see if it's reeeeally close to being an integer
//if(abs(differ) < 0.01){
// intI-1 shifts the location from human readable to the right index for the LEDs
// ring.setPixelColor(intI-1, ring.Color(r,g,b));
// Serial.println("tripped int check");
//}
//else {
// diff > 0 means that it's closer to the lower one
float differ1 = 1.0-differ;
//differ1 = logf(differ1);
//differ = logf(differ);
if(differ > 0.5){
differ1 /= 2;
//ring.setPixelColor(intI-2, ring.Color((int)(differ1*r),(int)(differ1*g),(int)(differ1*b)));
ring.setPixelColor(intI-1, ring.Color((int)(differ1*r),(int)(differ1*g),(int)(differ1*b)));
ring.setPixelColor(intI, ring.Color((int)(differ*r),(int)(differ*g),(int)(differ*b)));
}
else {
differ /= 2;
//ring.setPixelColor(intI-2, ring.Color((int)(differ*r),(int)(differ*g),(int)(differ*b)));
ring.setPixelColor(intI-1, ring.Color((int)(differ1*r),(int)(differ1*g),(int)(differ1*b)));
ring.setPixelColor(intI, ring.Color((int)(differ*r),(int)(differ*g),(int)(differ*b)));
}
//}
ring.show();
}
void InternetButton::ledOff(uint8_t i){
ledOn(i,0,0,0);
}
void InternetButton::allLedsOff(){
for(int i = 0; i<PIXEL_COUNT; i++){
ring.setPixelColor(i, ring.Color(0, 0, 0));
}
ring.show();
}
void InternetButton::allLedsOn(uint8_t r, uint8_t g, uint8_t b){
for(int i = 0; i<PIXEL_COUNT; i++){
ring.setPixelColor(i, ring.Color(r, g, b));
}
ring.show();
}
uint8_t InternetButton::buttonOn(uint8_t i){
if(b1 == 4){
return !digitalRead(i+3);
}
else {
return !digitalRead(i);
}
}
uint8_t InternetButton::allButtonsOn(){
if(!digitalRead(b1) && !digitalRead(b2) && !digitalRead(b3) && !digitalRead(b4)) {
return 1;
}
else {
return 0;
}
}
uint8_t InternetButton::allButtonsOff(){
if(digitalRead(b1) && digitalRead(b2) && digitalRead(b3) && digitalRead(b4)) {
return 1;
}
else {
return 0;
}
}
void InternetButton::rainbow(uint8_t wait) {
uint16_t i, j;
for(j=0; j<256; j++) { // 1 cycle of all colors on wheel
for(i=0; i< 12; i++) {
uint8_t WheelPos = ((i * 256 / ring.numPixels()) + j) & 255;
if(WheelPos < 85) {
ring.setPixelColor(i,ring.Color(WheelPos * 3, 255 - WheelPos * 3, 0));
} else if(WheelPos < 170) {
WheelPos -= 85;
ring.setPixelColor(i,ring.Color(255 - WheelPos * 3, 0, WheelPos * 3));
} else {
WheelPos -= 170;
ring.setPixelColor(i,ring.Color(0, WheelPos * 3, 255 - WheelPos * 3));
}
}
ring.show();
delay(wait);
}
}
int InternetButton::readX(){
return accelerometer.readX();
}
int InternetButton::readY(){
return accelerometer.readY();
}
int InternetButton::readZ(){
return accelerometer.readZ();
}
int InternetButton::readX16(){
return accelerometer.readX16();
}
int InternetButton::readY16(){
return accelerometer.readY16();
}
int InternetButton::readZ16(){
return accelerometer.readZ16();
}
//Thanks christophevg!
uint8_t InternetButton::lowestLed(){
float rads = atan2(accelerometer.readY16(),accelerometer.readX16());
uint8_t ledPos = (uint8_t)(12 - (rads/(M_PI/6) - 3)) % 12;
return ledPos;
}
void InternetButton::playSong(String song){
char inputStr[200];
song.toCharArray(inputStr,200);
Serial.println(inputStr);
char *note = strtok(inputStr,",");
char *duration = strtok(NULL,",");
playNote(note,atoi(duration));
while(duration != NULL){
note = strtok(NULL,",");
Serial.println(note);
duration = strtok(NULL,", \n");
Serial.println(duration);
//if(atoi(duration) <= 0){
// break;
//}
playNote(note,atoi(duration));
}
}
void InternetButton::playNote(String note, int duration){
int noteNum = 0;
int octave = 5;
int freq = 256;
//if(9 - int(command.charAt(1)) != null){
char octavo[5];
String tempString = note.substring(1,2);
tempString.toCharArray(octavo,5);
octave = atoi(octavo);
//}
if(duration != 0){
duration = 1000/duration;
}
switch(note.charAt(0)){
case 'C':
noteNum = 0;
break;
case 'D':
noteNum = 2;
break;
case 'E':
noteNum = 4;
break;
case 'F':
noteNum = 5;
break;
case 'G':
noteNum = 7;
break;
case 'A':
noteNum = 9;
break;
case 'B':
noteNum = 11;
break;
case 'R': // Rest note
octave = -1;
break;
default:
break;
//return -1;
}
// based on equation at http://www.phy.mtu.edu/~suits/NoteFreqCalcs.html and the Verdi tuning
// fn = f0*(2^1/12)^n where n = number of half-steps from the reference frequency f0
freq = float(256*pow(1.05946,( 12.0*(octave-4) +noteNum)));
// C4^ (2^1/12)^ 12 half-steps in an octave ^how many extra half-steps within that octave, 0 for a C
tone(D0,int(freq),duration);
delay(duration);
noTone(D0);
//return freq;
}
/*
