Ghosty Table

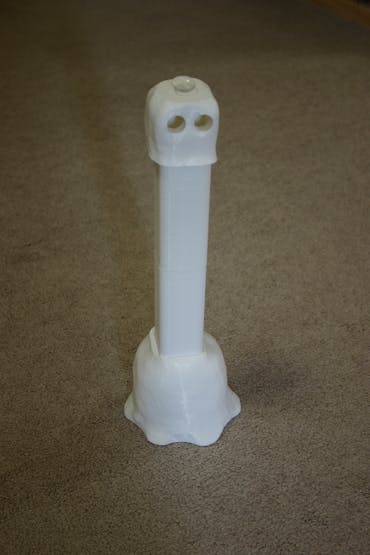

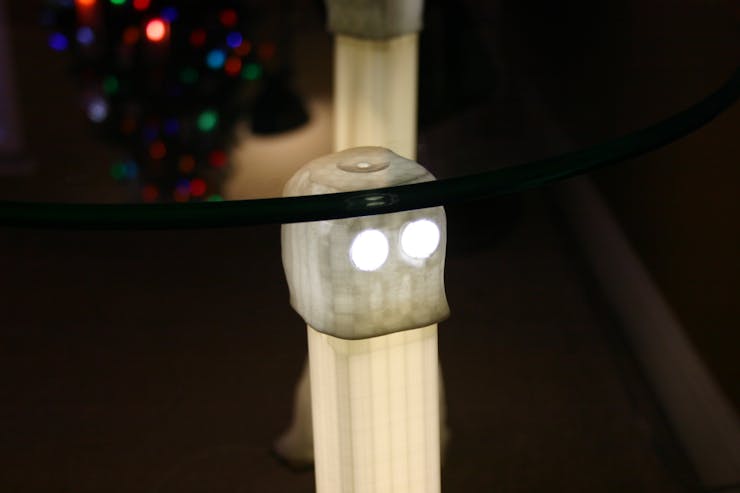

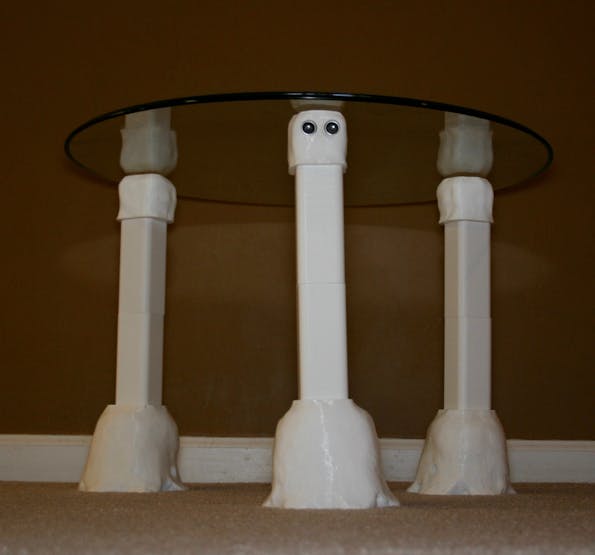

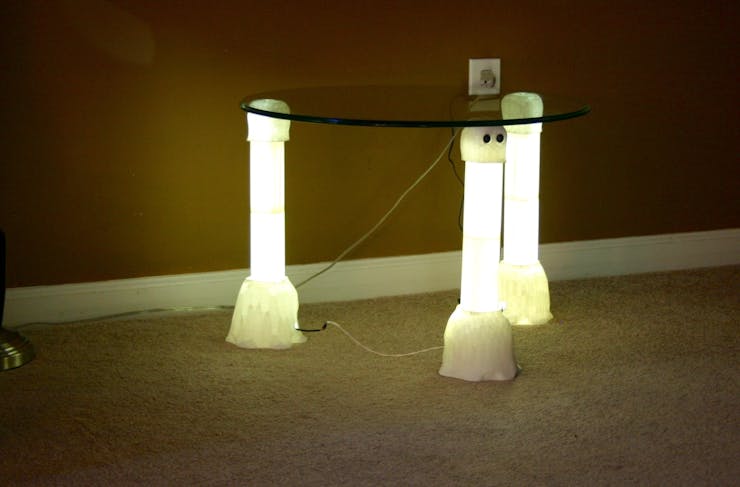

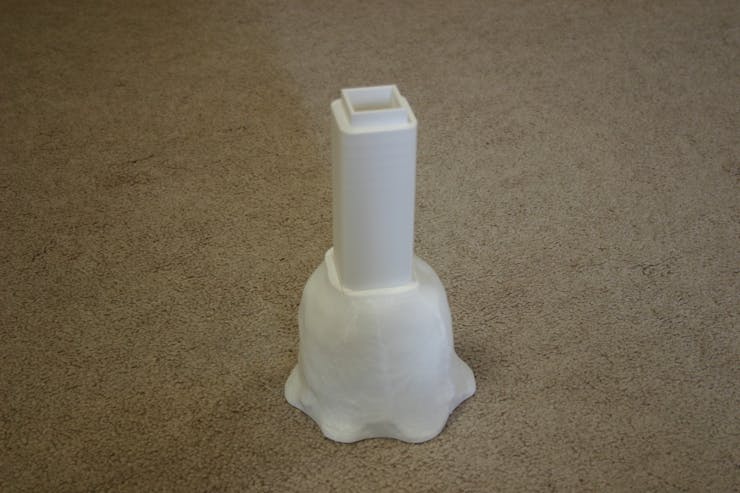

When someone passes by, this 3d printed ghost table lights up and squeals!

IntermediateFull instructions providedOver 2 days1,290
Ghosty Table

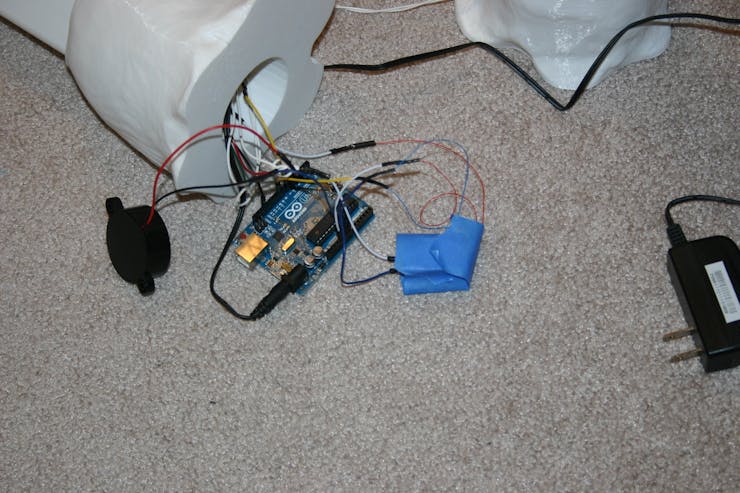

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Relay (generic)
https://www.amazon.com/gp/product/B00VRUAHLE/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1
×1
ultrasonic transducer
×1
LED (generic)
LED (generic)
https://www.amazon.com/16-4ft-Flexible-Lights-Lumens-Non-waterproof/dp/B00HSF64JG/ref=pd_sim_60_5?_encoding=UTF8&pd_rd_i=B00HSF64JG&pd_rd_r=QKF1CVRX8DBDS9EEZ2M1&pd_rd_w=OtAle&pd_rd_wg=dlVfy&psc=1&refRID=QKF1CVRX8DBDS9EEZ2M1
×1

Story

Read more

Schematics

Schematic

Code

Arduino Sketch

C/C++
const int pingPin=7;//ping input-output
long duration;

int light=9;//voltage to led
int sound=5;//sound pin

int val=0;



void setup () {
  pinMode(light, OUTPUT);
  pinMode(sound,OUTPUT);


  digitalWrite(light,HIGH);
  digitalWrite(sound,HIGH);
  delay(1000);
  digitalWrite(sound,LOW);
  delay(5000);
  digitalWrite(light,LOW);
  delay(2000);



}

void loop () {

delay(200);



  pinMode (pingPin,OUTPUT);//start of ultrasonic test
  digitalWrite (pingPin,LOW);
  delayMicroseconds (2);
  digitalWrite (pingPin,HIGH);
  delayMicroseconds(5);
  digitalWrite (pingPin,LOW);
  pinMode (pingPin,INPUT);//listen for pulse back
  duration=pulseIn (pingPin,HIGH);



  if (duration<8000) {


delay(50);
pinMode (pingPin,OUTPUT);//start of ultrasonic test
  digitalWrite (pingPin,LOW);
  delayMicroseconds (2);
  digitalWrite (pingPin,HIGH);
  delayMicroseconds(5);
  digitalWrite (pingPin,LOW);
  pinMode (pingPin,INPUT);//listen for pulse back
  duration=pulseIn (pingPin,HIGH);

  if (duration<8000) {



      digitalWrite (light,HIGH);//turn on lights
      digitalWrite(sound,HIGH);//turn on sound
      delay(200);
      digitalWrite (sound,LOW);//turn sound off
      delay(20000);//stay on 20 seconds
      digitalWrite (light,LOW);




    }

  }

}
