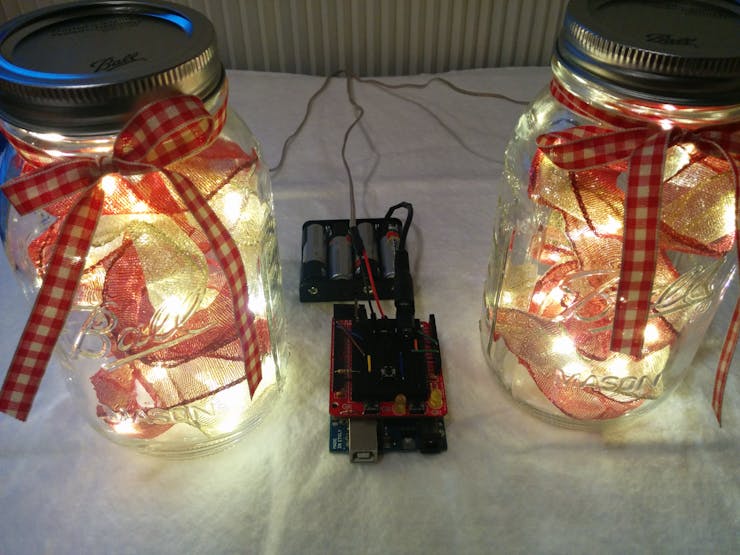

Programmable Christmas Mason Jar Lights

Use an Arduino Uno to adjust the brightness of your Christmas mason jar lights, including candle light mode!

BeginnerFull instructions provided1 hour2,478
Programmable Christmas Mason Jar Lights

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1

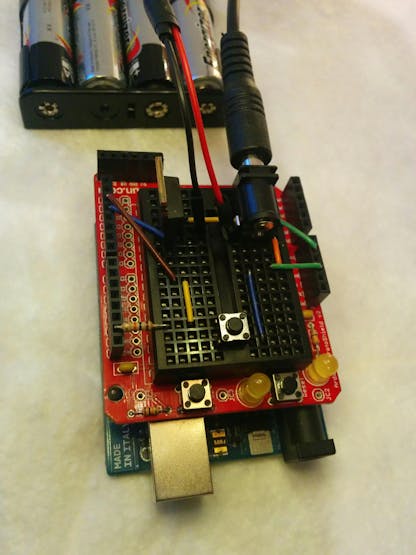

SparkFun ProtoShield Kit
SparkFun ProtoShield Kit
×1
Power MOSFET N-Channel
Power MOSFET N-Channel
×1
4xAA battery holder
4xAA battery holder
×1

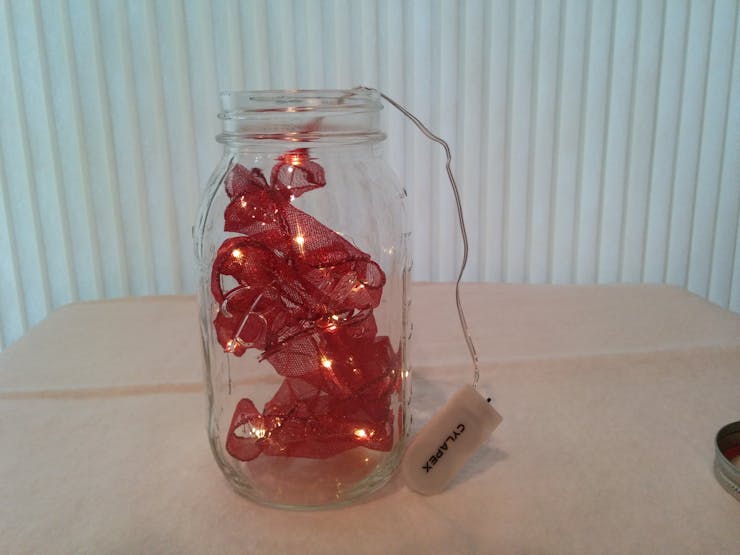

Micro LED string
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

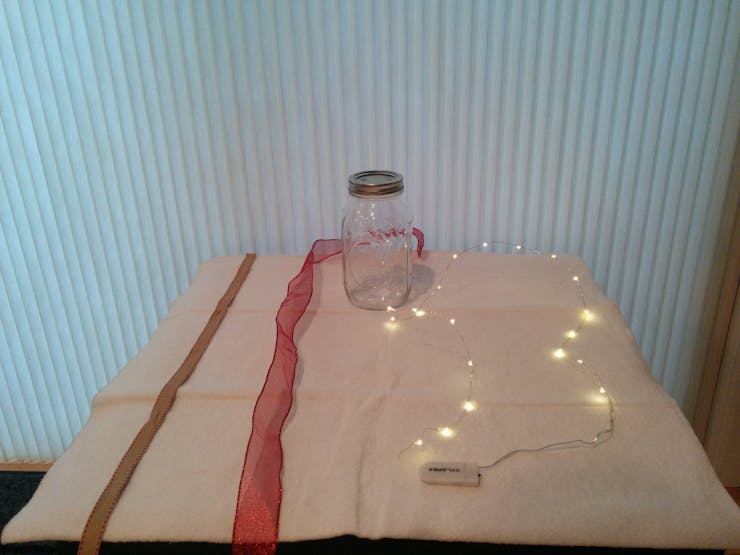

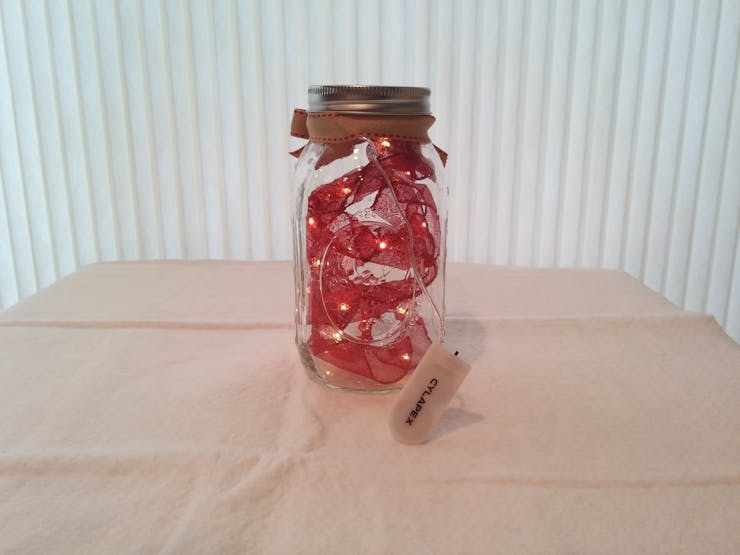

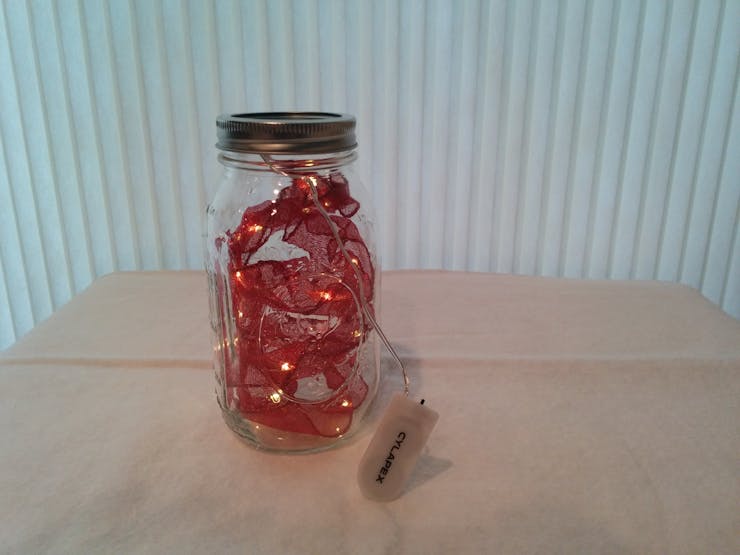

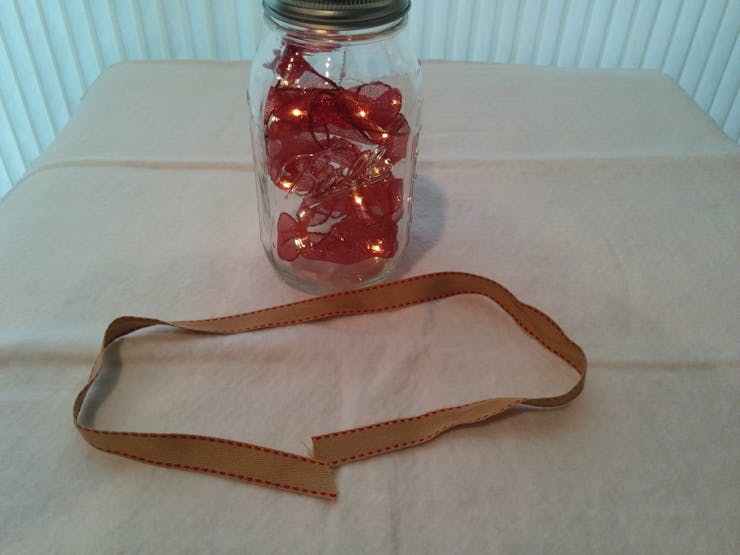

Mason Jar

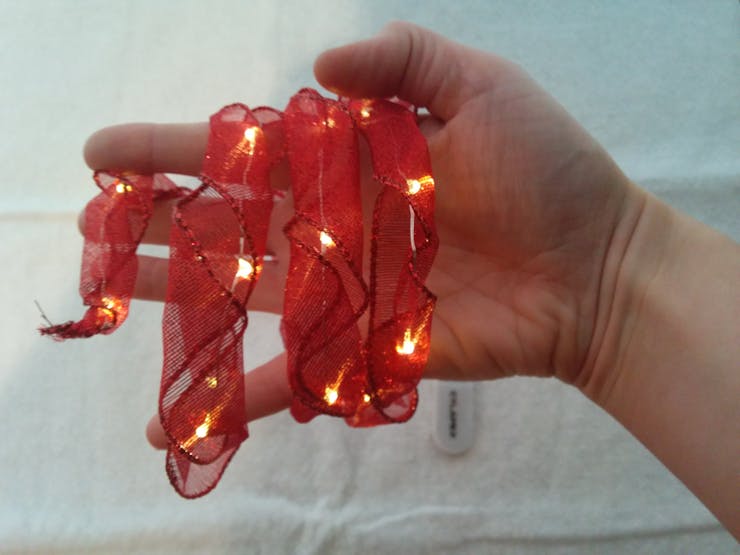

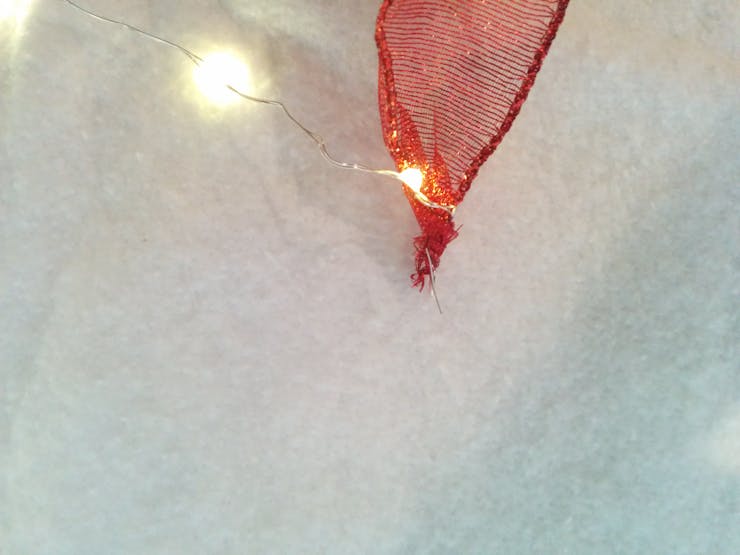

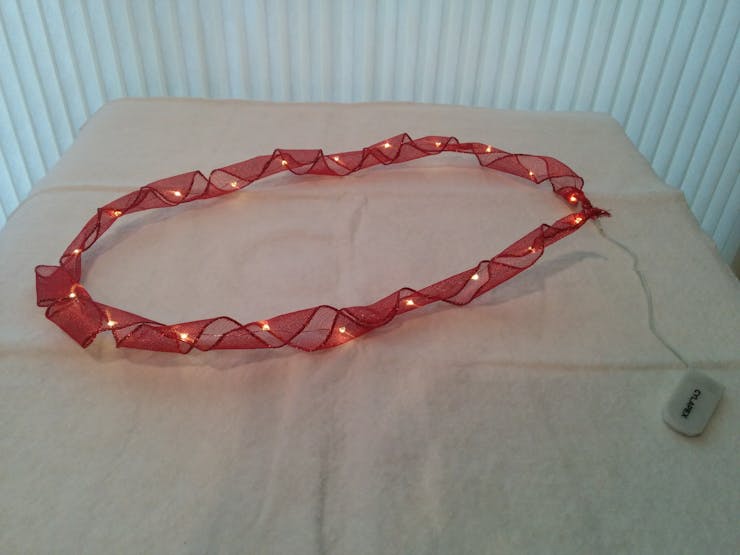

Ribbon

Story

Read more

Schematics

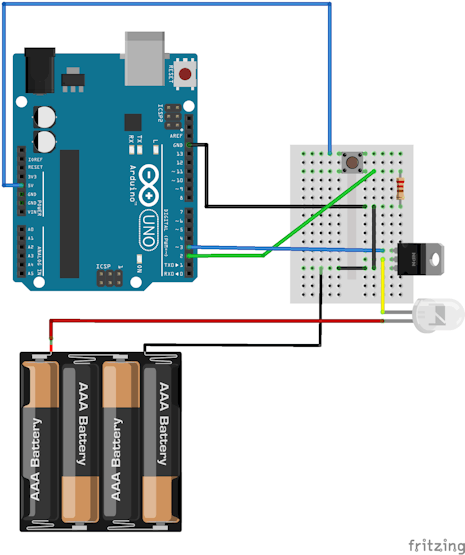

Circuit Schematic

Code

Mason Jar Christmas Lights Code

Arduino
int buttonPin = 2;
int led = 3;
int buttonState = 0;
int count = 0;
int preButtonState = 0;
int flickerDelay = 40;

void setup() {
   pinMode(led, OUTPUT);
   pinMode(buttonPin, INPUT);
   analogWrite(led, 0);
}

void loop() {
  preButtonState = buttonState;
  buttonState = digitalRead(buttonPin);
  if (preButtonState == 0 && buttonState == 1)
  {
    count = count+1;
    if (count == 5)
    {
      count = 0;
    }
    Serial.println(count);
  }
    if (count == 0)
    {
      analogWrite(led, 0);
    }
    else if (count == 1)
    {
      analogWrite(led, 77);
    }
    else if (count == 2)
    {
      analogWrite(led, 153);
    }
    else if (count == 3)
    {
      analogWrite(led, 255);
    }
    else if (count == 4)
    {
      analogWrite(led, 153);
      delay(flickerDelay);
      analogWrite(led, 255);
      delay(flickerDelay);
    }
}
