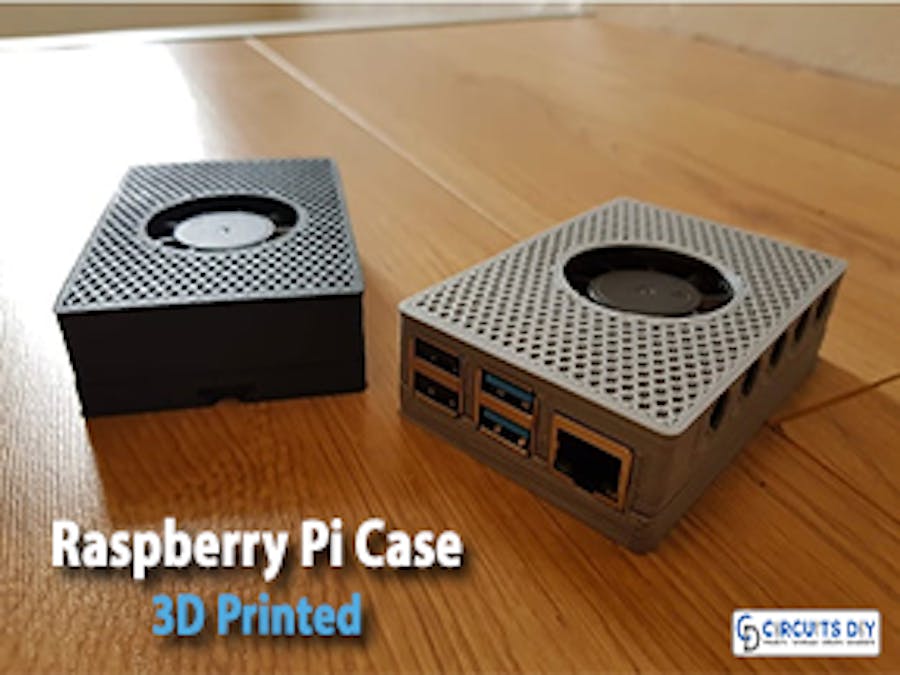

The Raspberry Pi 4 is a versatile single-board computer beloved by hobbyists, makers, and enthusiasts alike for its compact size and impressive capabilities. However, as the Pi 4’s processing power increases, it’s essential to prioritize temperature management to maintain optimal performance and prolong its lifespan. In this article, we’ll explore the benefits of creating a custom 3D-printed Raspberry Pi 4 case equipped with a 40mm fan for efficient cooling and protection.
(1) The Importance of Cooling:The Raspberry Pi 4 is a powerful little device, but like any electronic component, it generates heat during operation. Overheating can cause performance throttling, random shutdowns, and even permanent damage to the Pi’s components. Proper cooling is crucial to ensure smooth operation and longevity.
3D printing technology offers an affordable and accessible way to create custom cases for various devices, including the Raspberry Pi 4. With a 3D printer and some basic design skills, enthusiasts can design and produce personalized cases that fit their specific needs.
JLC 3D Printing, also known as JLCPCB, is a renowned and reliable manufacturer specializing in offering high-quality 3D printing services. With a reputation for precision and efficiency, JLC 3D Printing provides a diverse range of materials and printing options suitable for various applications.
(3) Selecting the Right Fan:When choosing a fan for your Raspberry Pi 4 case, a 40mm fan is an ideal size. It strikes a balance between providing sufficient airflow and remaining compact enough to fit comfortably within the case design. Additionally, low-noise and energy-efficient fans are highly recommended for a pleasant user experience.
(4) Designing the 3D Printed Case:Designing the case involves using 3D modeling software to create a blueprint that accommodates the Raspberry Pi 4 board and leaves enough space for the 40mm fan. Proper ventilation and air intake/exhaust points must be incorporated to maximize the cooling effect.
Before mounting the Raspberry Pi inside the 3D printed case, it’s essential to install heatsinks on the CPU and RAM modules. These small, passive components significantly improve heat dissipation and work in synergy with the fan to keep the Pi cool.
(6) Assembling the 3D Printed Case:With the Raspberry Pi prepared, carefully assemble the 3D printed case, ensuring all connections and ports are accessible. Securely attach the 40mm fan to the designated area, and make sure the fan’s power cables are connected correctly to the Pi’s GPIO pins.
To optimize the fan’s performance, configure the Raspberry Pi’s software to monitor the temperature and control the fan speed accordingly. This can be achieved through various software tools and scripts available in the Raspberry Pi community.
(8) Testing and Monitoring:Once everything is set up, thoroughly test the 3D-printed case and fan’s performance under different loads and applications. Monitor the temperature using software tools to ensure the fan effectively regulates the Pi’s temperature during operation.
Conclusion:Creating a 3D-printed Raspberry Pi 4 case with a 40mm fan is a rewarding project that enhances the Pi’s performance, prolongs its lifespan, and protects it from potential overheating issues.
