Animations with Arduino UNO and NOKIA 3310 LCD

The project creates wonderful animations using Arduino UNO board and a NOKIA 3310 LCD.

IntermediateProtip3 days1,372

Animations with Arduino UNO and NOKIA 3310 LCD

Things used in this project

Hardware components

Arduino UNO & Genuino UNO

NOKIA 3310 LCD

Capacitor 10 µF

Jumper wires (generic)

Software apps and online services

Arduino IDE

Story

The Project

This project has been compiled with Arduino version 1.67, and the board that I have used is Arduino UNO.

The main electronic modules that I have been used in this project were being the following:

Arduino UNO

NOKIA 3310 LCD

Interface

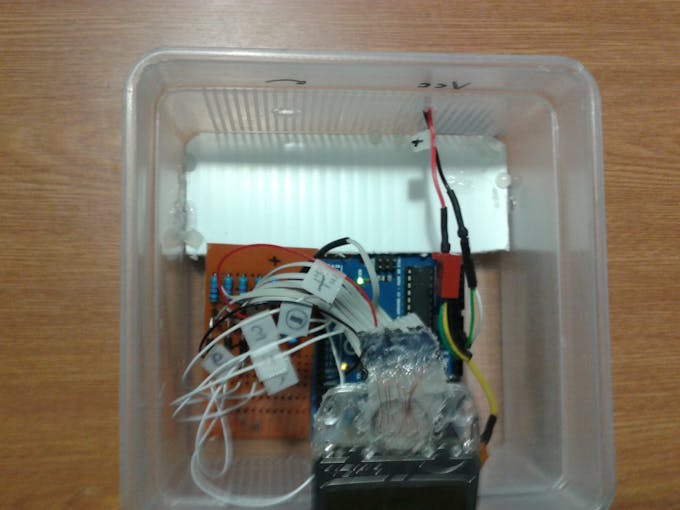

In my project I use an LCD screen of an old cellphone brand Nokia. As you can see I made the interface to power the screen to 3.3 V and protect it from the 5 volts that come from the digital pins of the Arduino. Currently, these screens are commercial and you can easily acquire them and already have included this interface.

You can have a limited number of animations with Arduino one, so I suggest you use a board with more memory to have a greater number of animations

You can get project and full code on this links:

https://www.amazon.com/dp/B01N5H9KUF

https://www.amazon.com/Guillermo%20Perez/e/B01EZOTUVQ/

http://guillengap.blogspot.mx/2016/12/ebook-animations-with-arduino-uno-and.html

Code

Code

#define LCD_CMD 0
#define PIN_SCE   7
#define PIN_RESET 6
#define PIN_DC    5
#define PIN_SDIN  4
#define PIN_SCLK  3
#define LCD_C     LOW
#define LCD_D     HIGH
#define LCD_X     84
#define LCD_Y     48
char photo01[] = {       };               // here, you have to put the code of a photo
char photo02[] = {       };               // here, you have to put the code of a photo

void gotoXY(int x, int y)
{
  LcdWrite( 0, 0x80 | x);     // column
  LcdWrite( 0, 0x40 | y);     // row.  ?
}
