Train Time Ticker

A simple train time ticker that displays the current time + the trains arriving to a specific platform in the next 30 minutes

EasyFull instructions provided4 hours1,787
Train Time Ticker

Things used in this project

Story

Read more

Schematics

Fritzing Diagram

I had a limited number of jumper wires. Ideally I would have been able to colour code the wires depending on where they are being used. Instead I used them based on the positioning of pins.

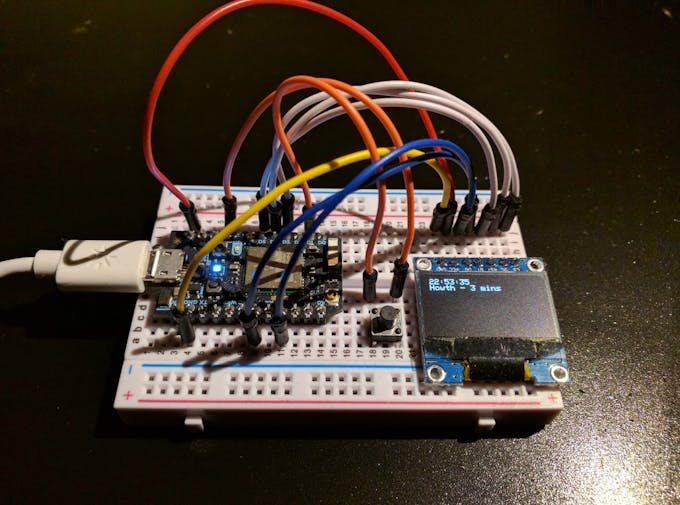

Just want to point out that is definitely worth it to spend a bit of time making the wires neat. The first two iterations(testing out both screen types), the wiring left alot to be desired and made the whole project feel extremely hacky.
4mt8nbq78zhy9dto6oef

Code

photon-train-time-ticker

The repo contains code for both screens that use either the Adafurit_SSD1306 library and the Adafurit_ILI9340 library. It also contains the Node server that interacts directly with the Irish Rail API.
