Weather Station for Drones

The project consists of a kit for drones that includes an electronic device that functions as a meteorological station.

IntermediateFull instructions provided45 minutes23,972
Weather Station for Drones

Things used in this project

Hardware components

Arduino MKR1000
Arduino MKR1000
or Arduino/Genuino Zero + Arduino wifi shield 101
×1
DHT22 Temperature Sensor
DHT22 Temperature Sensor
×1
Jumper wires (generic)
Jumper wires (generic)
×1
LED (generic)
LED (generic)
recommended one Green, one Yellow and one Red
×3
Resistor 10k ohm
Resistor 10k ohm
×1
Resistor 4.7k ohm
×3
Pushbutton switch 12mm
SparkFun Pushbutton switch 12mm
×1
Slide Switch
Slide Switch
×1
GPS U-Blox NEO 7M
Or NEO 6M
×1
SparkFun BMP180
×1
SparkFun microSD Breakout
×1
USB-A to Micro-USB Cable
USB-A to Micro-USB Cable
×1
3.7 V LiPo Battery
minimun 700mAh
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
optional in the case of solder

Story

Read more

Schematics

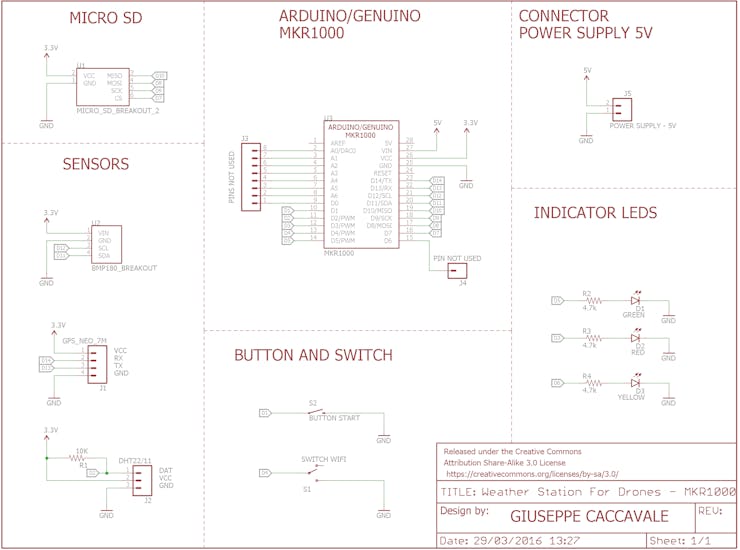

Schematic

Code

Sketch

GitHub Repository
