Making a Mini Self-Balancing Car Only Two Steps

This project shows you the way to make your own self-balancing projects using the functional arduino shield.

BeginnerFull instructions provided30 minutes2,344

Making a Mini Self-Balancing Car Only Two Steps

Things used in this project

Hardware components

Iteaduino Uno

Itead L298P Motor Drive Controller Expansion Board 7~18V For Arduino Robot Car

DV Motor with encoder

Wheels

12V lithium battery

Motor cables

Story

The newest Self-balancing Car Starter Kit is on sale now!

A self-stabilizing motor that will never fall sounds great. Many geeks playing arduino has come out of many self-stabilizing projects like self-stabilizing platform, motorbike etc. In this blog we will introduce an amazing arduino shield that can help you make self-stabilizing project easily. The stabilizer shield use L298P chip that is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Besides, stabilizer shield has a standard XBee socket, so that you can use Bluetooth to control a self-balancing robot car project or something like that.

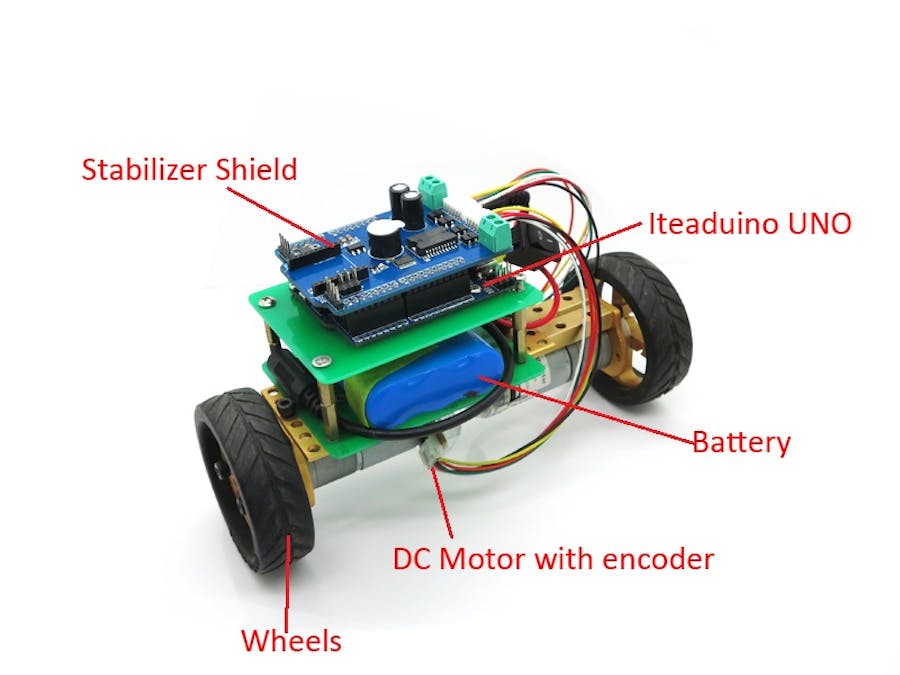

Hookup

Stabilizer is a plug-and-play arduino shield. Plug the shield in Iteaduino UNO mainboard, after assemble the car, you just need to connect motors to stabilizer shield by wires. Then the hardware hookup is done.

Debug

The stabilizer shield demo download link:

http://blog.iteadstudio.com/wp-content/uploads/2015/03/Stabilizer.zip

Just upload the Stabilizer.ino to UNO only, I2C.ino is a support file when Stabilizer.ino compile.After we upload the demo to Iteaduino UNO, the rest work is to debug the hardware and software problems. Now we will list some common problems we meet when we are making this project.

Hardware Problems

Stabilizer shield has been test strictly, so seldom hardware problems occur. But there are some tips when you use stabilizer shield.

1. The attitude data read normally, but motor doesn’t work. If this problem occurs, you’d better check the motor wire connection order. Please see the following picture to learn what exactly each pin is.

When you use one pulse output signal, you can only measure the motor speed. If you use two pulse output signals, you can measure the motor speed and direction in the same time.

2. You can’t upload the demo to UNO when the XBee and jumper have already plugged in stabilizer shield. Since the serial ports have been taken, you’d better unplug jumper first, and then upload the demo.

3. When you want to make the XBee communicate with PC, you should plug jumpers in the B side. Since the serial ports have been taken, you’d better upload an empty application to arduino, and then they can be communicated normally.

Software Problems

Software debugging is very important. It divides into four parts.

First, read the MPU6050 accelerometer and gyroscope data through I2C to get the attitude data.

Second, Kalman filtering, namely integrate the data from accelerometer and gyroscope and reach to the real angle of inclination.

Third, calculate the speed and direction of wheels respectively. We use PID algorithm to calculate and control car’s movement, so that the car can keep self-balancing.

Forth, motor driver. The results of PID algorithm will turn in commands to drive the motor moves.

You can see more codes details in the demo.

Tips for software debugging

1. Pay attention to data filtering of accelerometer and gyroscope. We use three-axis accelerometer and three-axis gyroscope. Refer to the following picture of our project, X is the car movement direction, Y is the direction of wheel and axle. The accelerometer data shall be collected between the X axis and Z axis, and turn the radian into angle. The direction of gyroscope shall keep in Y.

2. The angle direction calculated by accelerometer must be in accord with the angle direction calculated by gyroscope, if not, the car can’t be self-balancing.

3. When calculate the position of wheels, you should pay attention to the direction as well.

Note:

To debug the parameter of PID is the most important thing in this project. A decimal point or a number will decide whether the car can be self-balancing moved forward.

Meanwhile, the Bluetooth function has been written in the demo, but here we didn’t show up. Welcome more makers to hack this shield.

Last, I would like to say something about the short video. The self-balancing car looks so stumble. I think maybe it has a very gentle temper, like Baymax. 😛

What do you guys think? Hope you enjoy this project.

Code

******************************************************************************
File name: Stabilizer

Author: Kevin Li

Description:This code is a simple example for the Stabilizer shield to help people build
			their self-balancing Robot.

******************************************************/


// Arduino Wire library is required if I2Cdev I2CDEV_ARDUINO_WIRE implementation
// is used in I2Cdev.h
#include  "Wire.h"`

//UNO pin map
int ENA=9;
int ENB=11;

int IN1=7;
int IN2=8;
int IN3=10;
int IN4=12;

int MAS,MBS;


/* IMU Data */
double accX, accY, accZ;
double gyroX, gyroY, gyroZ;


double gyroXangle, gyroYangle; // Angle calculate using the gyro only
double compAngleX, compAngleY; // Calculated angle using a complementary filter
double kalAngleX, kalAngleY; // Calculated angle using a Kalman filter
uint8_t i2cData[14]; // Buffer for I2C data
uint32_t timer;
unsigned long lastTime;

/*************THE KALMAN FILERING ***************/
double P[2][2] = {{ 1, 0 },{ 0, 1 }};
double Pdot[4] ={ 0,0,0,0};
static const double Q_angle=0.001, Q_gyro=0.003, R_angle=0.5,dtt=0.01,C_0 = 1;
double q_bias, angle_err, PCt_0, PCt_1, E, K_0, K_1, t_0, t_1;
double angle,angle_dot,aaxdot,aax;
double position_dot,position_dot_filter,positiono;

/*-------------Encoder---------------*/

#define LF 0
#define RT 1

int Lduration,Rduration;
boolean LcoderDir,RcoderDir;
const byte encoder0pinA = 2;
const byte encoder0pinB = 5;
byte encoder0PinALast;
const byte encoder1pinA = 3;
const byte encoder1pinB = 4;
byte encoder1PinALast;

int RotationCoder[2];

/*--------------------------------------*/
float k1,k2,k3,k4; //Adjust the PID Parameters
int turn_flag=0;
float move_flag=0;

int pwm;
int pwm_R,pwm_L;
float range;
float range_error_all;
float wheel_speed;
float last_wheel;
float error_a=0;


void setup() {
    // join I2C bus (I2Cdev library doesn't do this automatically)
    Wire.begin();

    // initialize serial communication
    Serial.begin(9600);
	//Serial.println("AT+NAMEitead");

    //motor contraler
    pinMode(IN1, OUTPUT);
    pinMode(IN2, OUTPUT);
    pinMode(IN3, OUTPUT);
    pinMode(IN4, OUTPUT);

    pinMode(ENA, OUTPUT);
    pinMode(ENB, OUTPUT);
    pinMode(6, OUTPUT);
 	digitalWrite(6, LOW);//disable buzzer

/******************************************************/
  //Serial.println("Initializing I2C devices...");
  TWBR = ((F_CPU / 400000L) - 16) / 2; // Set I2C frequency to 400kHz

  i2cData[0] = 7; // Set the sample rate to 1000Hz - 8kHz/(7+1) = 1000Hz
  i2cData[1] = 0x00; // Disable FSYNC and set 260 Hz Acc filtering, 256 Hz Gyro filtering, 8 KHz sampling
  i2cData[2] = 0x00; // Set Gyro Full Scale Range to ��250deg/s
  i2cData[3] = 0x00; // Set Accelerometer Full Scale Range to ��2g
  while (i2cWrite(0x19, i2cData, 4, false)); // Write to all four registers at once
  while (i2cWrite(0x6B, 0x01, true)); // PLL with X axis gyroscope reference and disable sleep mode

  while (i2cRead(0x75, i2cData, 1));
  if (i2cData[0] != 0x68) { // Read "WHO_AM_I" register
    Serial.print(F("Error reading sensor"));
    while (1);
  }

  delay(20); // Wait for sensor to stabilize

  while (i2cRead(0x3B, i2cData, 6));
  accX = (i2cData[0] << 8) | i2cData[1];
  accY = (i2cData[2] << 8) | i2cData[3];
  accZ = (i2cData[4] << 8) | i2cData[5];


  double roll  = atan2(accX, accZ) * RAD_TO_DEG;

	//The balance PID
	k1=43;//24.80;
	k2=1.2;//1.4;//9.66;
	k3=-0.2;//-0.88 ;//4.14;
	k4=-0.65;//-0.55;//0.99;

/*************************************************************************************/
   EnCoderInit();
   timer = micros();
   //Serial.println("BOOT..............");
}

/*****************************main loop*********************************/


void loop()
{
//GET BLUETOOTH DATA FOR CONTROL
  control();
/********************************************************/
  while (i2cRead(0x3B, i2cData, 14));

  accX = ((i2cData[0] << 8) | i2cData[1]);
  //accY = ((i2cData[2] << 8) | i2cData[3]);
  accZ = ((i2cData[4] << 8) | i2cData[5]);
  //gyroX = (i2cData[8] << 8) | i2cData[9];
  gyroY = (i2cData[10] << 8) | i2cData[11];
  //gyroZ = (i2cData[12] << 8) | i2cData[13];

  double dt = (double)(micros() - timer) / 1000000; // Calculate delta time
  timer = micros();

  double roll  = atan2(accX, accZ) * RAD_TO_DEG-move_flag;


  //double gyroXrate = gyroX / 131.0; // Convert to deg/s
  double gyroYrate = -gyroY / 131.0; // Convert to deg/s

  //gyroXangle += gyroXrate * dt; // Calculate gyro angle without any filter
  //gyroYangle += gyroYrate * dt;

/****************************************************/

  Kalman_Filter(roll,gyroYrate);

 if(abs(angle)<35){
 // Serial.print("kfAngle=");Serial.print(roll);//Serial.print("\t");
 //Serial.print(",angleAx=");
 //Serial.print(angle); Serial.print("\t");

  pwm_calculate();
  PWMD();

  Serial.print("pwm:");
  Serial.print(pwm); Serial.print("\n");
  //set_motor();
  }
  else{
    analogWrite(ENB,0);
    analogWrite(ENA,0);
    Serial.print("down!");
  }
  delay(2);
Serial.print(";\t\n");
}


/*************************************************************************/

void Kalman_Filter(double angle_m,double gyro_m)
{
angle+=(gyro_m-q_bias) * dtt;
Pdot[0]=Q_angle - P[0][1] - P[1][0];
Pdot[1]=- P[1][1];
Pdot[2]=- P[1][1];
Pdot[3]=Q_gyro;
P[0][0] += Pdot[0] * dtt;
P[0][1] += Pdot[1] * dtt;
P[1][0] += Pdot[2] * dtt;
P[1][1] += Pdot[3] * dtt;
angle_err = angle_m - angle;
PCt_0 = C_0 * P[0][0];
PCt_1 = C_0 * P[1][0];
E = R_angle + C_0 * PCt_0;
K_0 = PCt_0 / E;
K_1 = PCt_1 / E;
t_0 = PCt_0;
t_1 = C_0 * P[0][1];
P[0][0] -= K_0 * t_0;
P[0][1] -= K_0 * t_1;
P[1][0] -= K_1 * t_0;
P[1][1] -= K_1 * t_1;
angle+= K_0 * angle_err;
q_bias += K_1 * angle_err;
angle_dot = gyro_m-q_bias;
}

// **************************
// Init the Incoder
// **************************
void EnCoderInit()
{
  pinMode(4,INPUT);
  pinMode(5,INPUT);
  attachInterrupt(LF, LwheelSpeed, RISING);
  attachInterrupt(RT, RwheelSpeed, RISING);
}


// **************************
// Calculate the pwm
// **************************
void pwm_calculate()
{
   unsigned long  now = millis();       // ��ǰʱ��(ms)
   int Time = now - lastTime;

  int range_error;

  //Serial.print("  R:");Serial.print(Rduration);
  //Serial.print("  L:");Serial.print(Lduration);
  range+=(Lduration+Rduration)*0.5;
  range*=0.9;
  range_error=Lduration-Rduration;
  range_error_all+=range_error;

  wheel_speed=range-last_wheel;
  last_wheel=range;

  pwm=angle*k1+angle_dot*k2+range*k3+wheel_speed*k4;    //use PID tho calculate the pwm

  if(pwm>255)                               //Maximum Minimum Limitations
    pwm=255;
  if(pwm<-255)
    pwm=-255;
      //Serial.print(pwm);Serial.print("\t");
      Serial.print(Lduration);Serial.print("\t");
      Serial.print(Rduration);Serial.print("\t\n");
/*    if(turn_flag==0)
    {
     pwm_R=pwm+range_error_all;
     pwm_L=pwm-range_error_all;
    }
    else
    {
        pwm_R=pwm-turn_flag*68;  //Direction PID control
        pwm_L=pwm+turn_flag*68;
        range_error_all=0;     //clean
    }
 */
     Lduration = 0;//clean
     Rduration = 0;
   lastTime = now;
   //Serial.print(Time);Serial.print("\n");


}

/****************control the motor****************/
void PWMD()
{
  if(pwm>0)
  {
    digitalWrite(IN1, HIGH);
    digitalWrite(IN2, LOW);
    digitalWrite(IN3, LOW);
    digitalWrite(IN4, HIGH);
    Serial.print("...");
  }
  else if(pwm<0)
  {
    digitalWrite(IN1, LOW);
    digitalWrite(IN2, HIGH);
    digitalWrite(IN3, HIGH);
    digitalWrite(IN4, LOW);
   Serial.print("***");
  }
  int PWMr = abs(pwm);
  int PWMl = abs(pwm);

  analogWrite(ENB, PWMl); //PWM����a==0-255
  analogWrite(ENA, PWMr ); //PWM����a==0-255
}


// *******************************
// Read the Speed from the Encoder
// *******************************

void LwheelSpeed()
{
	if(digitalRead(encoder0pinB))
		Lduration++;
	else Lduration--;
/*  int Lstate = digitalRead(encoder0pinA);
  if((encoder0PinALast == LOW)&&Lstate==HIGH)
  {
    int val = digitalRead(encoder0pinB);
    if(val == LOW && LcoderDir)  LcoderDir = false; //Lreverse
    else if(val == HIGH && !LcoderDir)  LcoderDir = true;  //Lforward
  }
  encoder0PinALast = Lstate;

  if(!LcoderDir)  Lduration++;
  else  Lduration--;
*/
}


void RwheelSpeed()
{
	if(digitalRead(encoder1pinB))
		Rduration--;
	else Rduration++;
/*  int Rstate = digitalRead(encoder1pinA);
  if((encoder1PinALast == LOW)&&Rstate==HIGH)
  {
    int val = digitalRead(encoder1pinB);
    if(val == LOW && RcoderDir)  RcoderDir = false; //Rreverse
    else if(val == HIGH && !RcoderDir)  RcoderDir = true;  //Rforward
  }
  encoder1PinALast = Rstate;

  if(!RcoderDir)  Rduration--;
  else  Rduration++;
*/
}

void control()
{
	if(Serial.available()){
		int val;
		val=Serial.read();
		switch(val){
			case 'F':
				if(move_flag<5)
					move_flag+=0.1;
				Serial.println("forword");
				break;
			case 'B':
				if(move_flag>-5)move_flag-=0.1;
				Serial.println("back");
				break;
			case 'S':
				move_flag=0;
				turn_flag=0;
				Serial.println("stop");
				break;
			default:
				break;

		}
		}
}

/* Copyright (C) 2013-2014 Kristian Lauszus, TKJ Electronics. All rights reserved.

 This software may be distributed and modified under the terms of the GNU
 General Public License version 2 (GPL2) as published by the Free Software
 Foundation and appearing in the file GPL2.TXT included in the packaging of
 this file. Please note that GPL2 Section 2[b] requires that all works based
 on this software must also be made publicly available under the terms of
 the GPL2 ("Copyleft").

 Contact information
 -------------------

 Kristian Lauszus, TKJ Electronics
 Web      :  http://www.tkjelectronics.com
 e-mail   :  kristianl@tkjelectronics.com
*/

const uint8_t IMUAddress = 0x68; // AD0 is logic low on the PCB
const uint16_t I2C_TIMEOUT = 100; // Used to check for errors in I2C communication

uint8_t i2cWrite(uint8_t registerAddress, uint8_t data, bool sendStop) {
  return i2cWrite(registerAddress, &data, 1, sendStop); // Returns 0 on success
}

uint8_t i2cWrite(uint8_t registerAddress, uint8_t *data, uint8_t length, bool sendStop) {
  Wire.beginTransmission(IMUAddress);
  Wire.write(registerAddress);
  Wire.write(data, length);
  uint8_t rcode = Wire.endTransmission(sendStop); // Returns 0 on success
  if (rcode) {
    Serial.print(F("i2cWrite failed: "));
    Serial.println(rcode);
  }
  return rcode; // See: http://arduino.cc/en/Reference/WireEndTransmission
}

uint8_t i2cRead(uint8_t registerAddress, uint8_t *data, uint8_t nbytes) {
  uint32_t timeOutTimer;
  Wire.beginTransmission(IMUAddress);
  Wire.write(registerAddress);
  uint8_t rcode = Wire.endTransmission(false); // Don't release the bus
  if (rcode) {
    Serial.print(F("i2cRead failed: "));
    Serial.println(rcode);
    return rcode; // See: http://arduino.cc/en/Reference/WireEndTransmission
  }
  Wire.requestFrom(IMUAddress, nbytes, (uint8_t)true); // Send a repeated start and then release the bus after reading
  for (uint8_t i = 0; i < nbytes; i++) {
    if (Wire.available())
      data[i] = Wire.read();
    else {
      timeOutTimer = micros();
      while (((micros() - timeOutTimer) < I2C_TIMEOUT) && !Wire.available());
      if (Wire.available())
        data[i] = Wire.read();
      else {
        Serial.println(F("i2cRead timeout"));
        return 5; // This error value is not already taken by endTransmission
      }
    }
  }
  return 0; // Success
}

Credits

Mike86

15 projects • 13 followers

Making a Mini Self-Balancing Car Only Two Steps

Things used in this project

Hardware components

Story

Hookup

Debug

Hardware Problems

Software Problems

Note:

Schematics

Schematic for Itead Uno

Schematic for Stabilizer Shield

Code

The stabilizer shield demo

Untitled file

Credits

Mike86

Comments

Embed the widget on your own site

Making a Mini Self-Balancing Car Only Two Steps

Making a Mini Self-Balancing Car Only Two Steps

Things used in this project

Hardware components

Story

Hookup

Debug

Hardware Problems

Software Problems

Note:

Schematics

Schematic for Itead Uno

Schematic for Stabilizer Shield

Code

The stabilizer shield demo

Untitled file

Credits

Mike86

Comments

Related channels and tags
