How to Make a Customizable Punchable Keyboard Button

Angry at the office? Use this customizable keyboard button that you can punch.

EasyFull instructions provided30 minutes1,607

Things used in this project

Hardware components

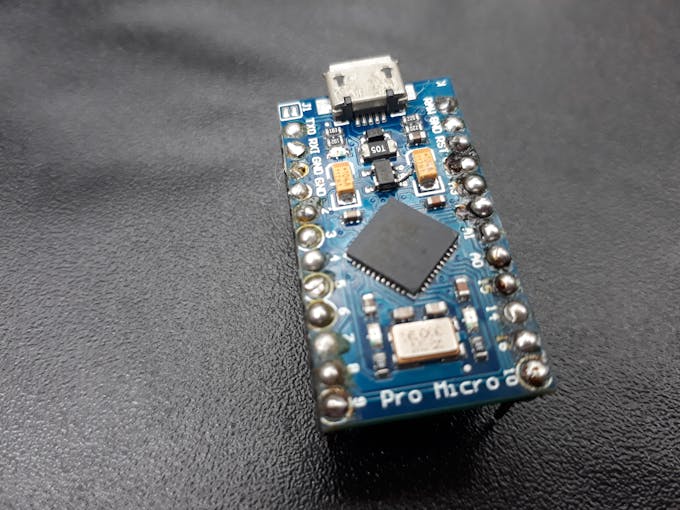

Arduino Micro & Genuino Micro
Arduino Micro & Genuino Micro
You can use any ATmega32U4 based microcontroller such as Arduino Leonardo , which makes the microcontroller recognisable as a mouse or keyboard.
×1
Piezo Element
Piezo electric disks can be found in the speakers in some musical gift cards.
×1
Resistor 1M ohm
Resistor 1M ohm
To limit the voltage and current produced by the piezo and to protect the analog input.
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

spongy material
cloth (any colour)
To cover sponges and electronics inside.you can use a needle and thread to make a enclosure for sponges.

Story

Read more

Schematics

Fritzing file

Code

customizable_punchable_keyboard_button.ino

Arduino
#include <Keyboard.h>

const int knockSensor = A0; // the piezo is connected to analog pin 0
const int threshold = 100;  // threshold value


// these variables will change:
int sensorReading = 0;      // variable to store the value read from the sensor pin


void setup()
{

   Keyboard.begin();
}

void loop()
{
  // read the sensor and store it in the variable sensorReading:


sensorReading = analogRead(knockSensor);

  // if the sensor reading is greater than the threshold:

 if (sensorReading >= threshold)
{

// to customize key function change ASCII values below  , refer  https://www.arduino.cc/en/Reference/ASCIIchart

    Keyboard.write(32);      //ASCII value of Space bar is 32 ,
    delay(150);
    Keyboard.releaseAll();

  }

}
