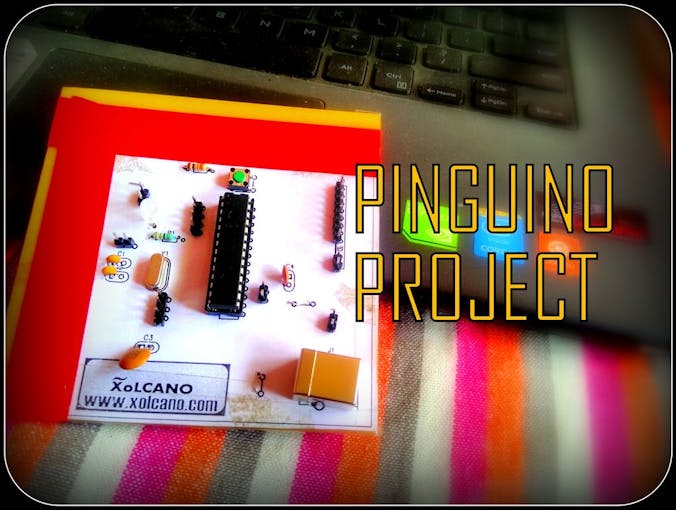

Pinguino Project: A PIC Microcontroller Based Arduino

This is a complete tutorial to make a PIC Microcontroller based Arduino.

EasyFull instructions provided5 hours927
Pinguino Project: A PIC Microcontroller Based Arduino

Things used in this project

Hardware components

PIC18F2550
×1
20 MHz Crystal
×1
Resistor 10k ohm
Resistor 10k ohm
×1
Jumper wires (generic)
Jumper wires (generic)
×1
LED (generic)
LED (generic)
×1
RobotGeek Pushbutton
RobotGeek Pushbutton
×1
USB B type
×1
Resistor 475 ohm
Resistor 475 ohm
(470 ohm x2)
×2
Capacitor 100 nF
Capacitor 100 nF
(220nF x2)
×2

Software apps and online services

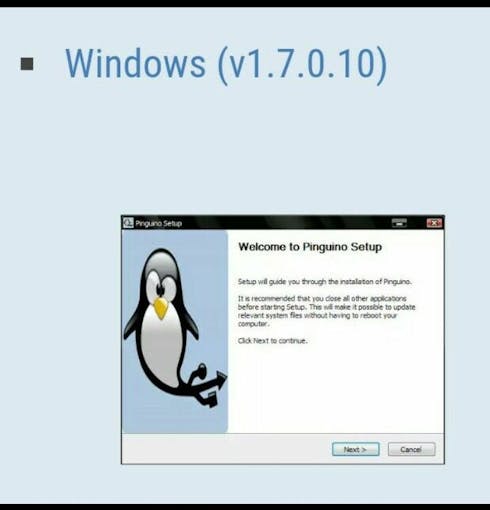

Pinguino IDE

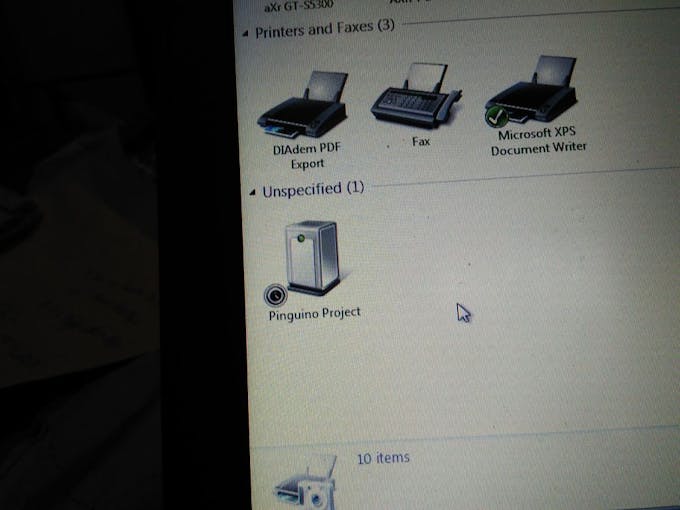

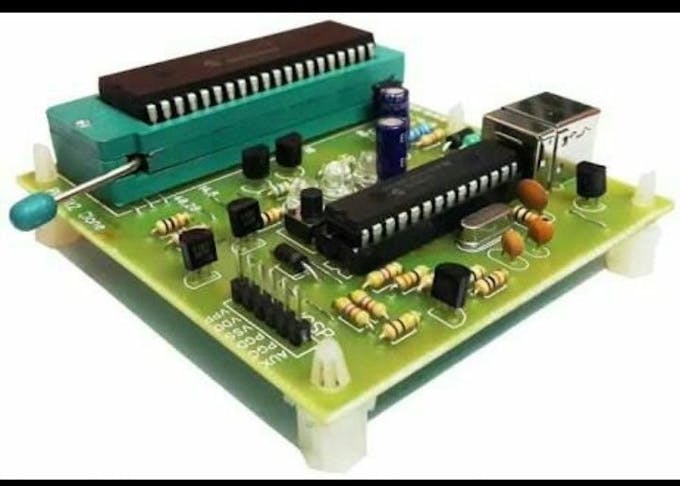

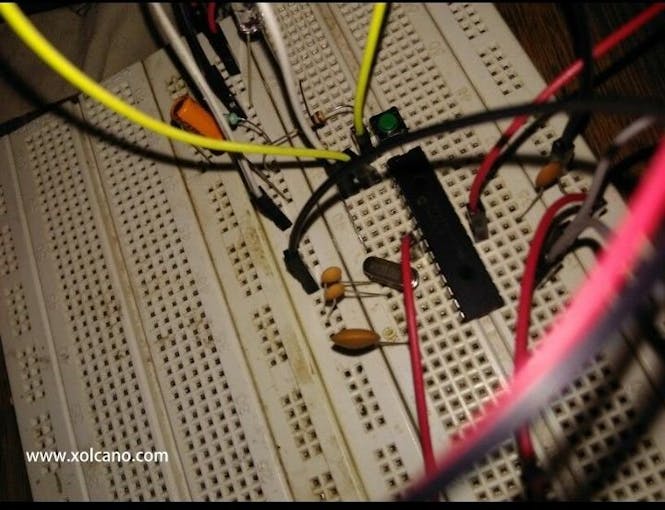

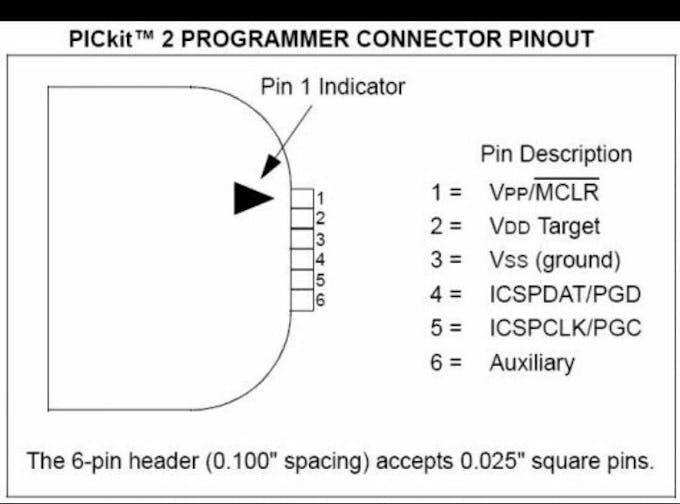

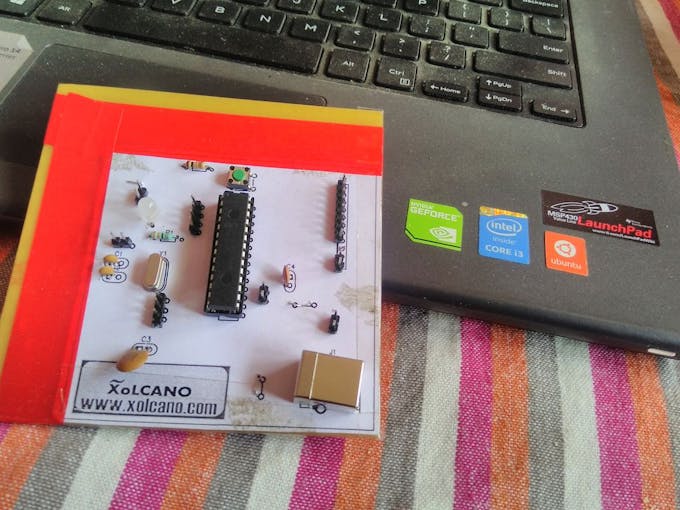

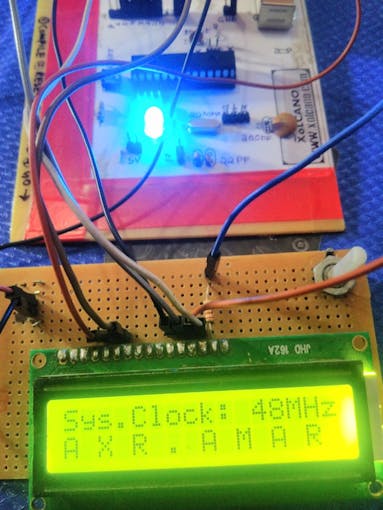

Story

Read more

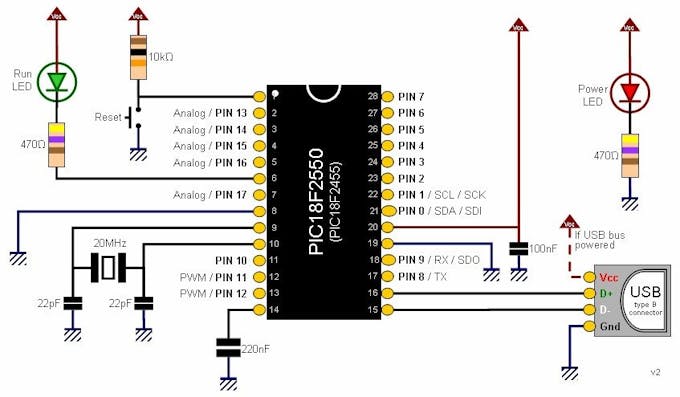

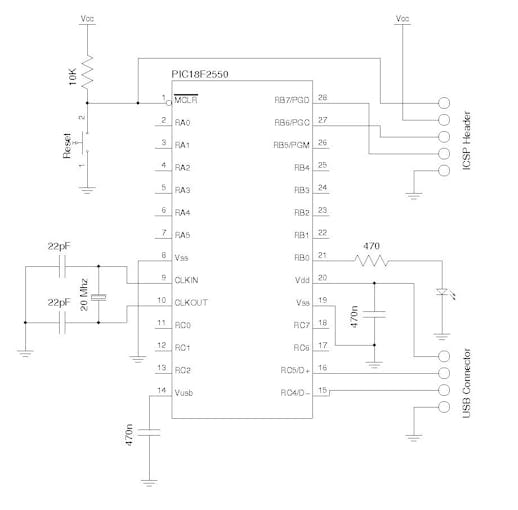

Schematics

PINGUINO

Fzxzlxwyvkdrev56dmfb

Pinguino BLYNK

Zhr8ao2jxy8fwzhgobqk

Code

Github

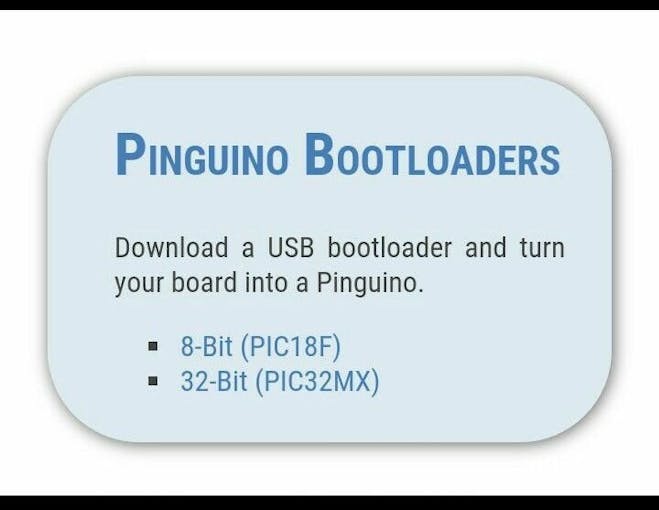

https://github.com/PinguinoIDE/pinguino-bootloaders/tree/master/p8/usb/v4.x/hex
