Published April 23, 2018 © LGPL

Detect Motion in Your Surrounding Using PIR Motion Sensor

PIR-based motion detector is used to sense movement. They are commonly used in burglar alarms and automatically-activated lightning systems.

BeginnerFull instructions provided15 minutes2,832

Detect Motion in Your Surrounding Using PIR Motion Sensor

Things used in this project

Hardware components

Surilli WiFi

Jumper wires (generic)

PIR Motion Sensor (generic)

Breadboard (generic)

Software apps and online services

Arduino IDE

Story

About:

In this tutorial we will be using an PIR motion sensor. We are going to program our surilli with a very basic program for Motion detection. In this program, whenever a motion is detected, it sends a digital value “1” to surilli, and when no motion is detected the digital value remains “0”.

What is PIR Motionsensor :

A PIR-based motion detector is used to sense movement of people, animals, or other objects. They are commonly used in burglar alarms and automatically-activated lighting systems.Passive infrared motion detectors (PIR) detect emitted infrared energy – given off by humans and animals in the form of heat.When there is a sudden increase in infrared energy, a digital value is given by sensor.

In this case, When the sensor is idle, both slots detect the same amount of IR, the ambient amount radiated from the room or walls or outdoors. When a warm body like a human or animal passes by, it first intercepts one half of the PIR sensor, which causes a positive differential change between the two halves.

STEP 1:Setup Arduino IDE for Surilli

Make sure you have selected the right port, board and processor for the Surilli as shown in the picture below and it is programmable (compile and upload “Blink” from File>Examples>Digital>Blink onto your Surilli to check if every thing is working fine).

STEP 2: Thecircuitry:

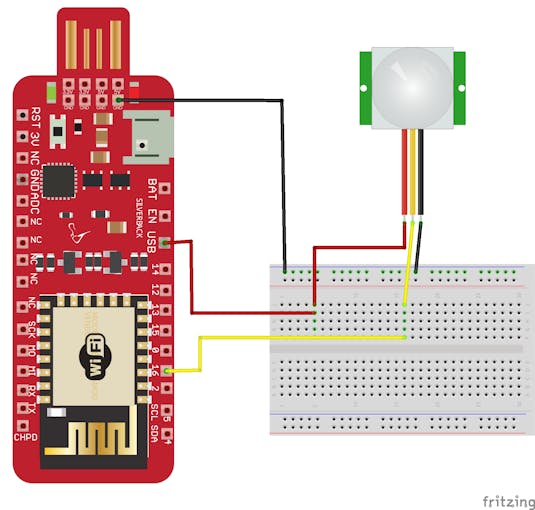

The circuitry is very simple. It's mostly the programming.Follow the Figure 1 to setup your hardware.

STEP 3:Upload & Burn Code Onto Surilli

Now you have completed setting up your hardware and Arduino IDE. Copy and paste the Arduino sketch given below into your Arduino IDE and hit upload.

After it is uploaded, the PIR Motion sensor will start detecting motion.

Play with the program to see how it reacts to different values and logic. This will develop your understanding about motion sensors so you can use them in your practical application.

Note:

Builtin LED of surilli is inverted, means when value is zero, it will be turned ON and vice versa.

If you make something fun and interesting do share it with our community :)

That’s all for now. If you have any queries, visit surilli.io or contact our support. Stay connected with Surilli family for more amazing stuff :)

Code

MotionSensor_final.ino

int motion_Sensor_Pin = 16;//Motion sensor output pin is connected to pin 16 of surilli.
int Led_Pin = 0;//built-in LED pin is on pin number 0.
void setup()
{
    pinMode (motion_Sensor_Pin,INPUT);//output from motion sensor is declared as input for surilli.
    pinMode (Led_Pin, OUTPUT);//built-in LED is declared as output
    Serial.begin(9600);
    digitalWrite (Led_Pin,LOW);//initially built-in LED is set LOW.
}

void loop ()
{
      delay(500); //this delay is to let the sensor settle down before taking a reading
      int sensor_value = digitalRead(motion_Sensor_Pin);//read the value from motion sensor and stores in variable "sensor-Value"
  if(sensor_value == 1)
    {
      digitalWrite(Led_Pin,HIGH);//if sensor value is 1 then built-in LED will turn OFF.(LED inverted)
      Serial.println("Motion Detected");
      Serial.println(sensor_value);//prints digital value from sensor.
      delay(100);
    }
else if (sensor_value == 0)
    {
      digitalWrite(Led_Pin,LOW);//if sensor value is 0 then built-in LED will turn ON.
      Serial.println("Searchng For Motion");
      Serial.println(sensor_value);//prints digital value from sensor.
      delay(100);
    }
}

Credits

Surilli

196 projects • 62 followers

Surilli is a premiere Internet of Things centric Technology Company aimed at providing cutting edge innovative solutions.
