Things used in this project

Hardware components:
UC32
×1
chipKIT Basic I/O Shield
×1
Software apps and online services:
MPIDE
To program the UC32(Arduino IDE didn't work for me)

Code

Example codeArduino
This is the code. Not really good code, but I tried to upgrade it(made it 2 years ago)
/*
**Written by Arend-Jan van Hilten( first code made for National Instruments)
 **Arend-Jan.com
 */


#include <IOShieldTemp.h>
#include <IOShieldOled.h>
#include <Wire.h>
int tensc = 0;
int onesc = 0;
int dot_tensc = 0;
int dot_onesc = 0;
int tensf = 0;
int onesf = 0;
int dot_tensf = 0;
int dot_onesf = 0;
int tempC=0;
int tempF=0;
int a=0;
int z=0;
void setup()
{
  Serial.begin(9600);
  pinMode(2, INPUT);
  pinMode(8, INPUT);
  pinMode(7, INPUT);
  pinMode(35, INPUT);
  pinMode(36, INPUT);
  pinMode(37, INPUT);
  pinMode(34, INPUT);
  pinMode(4, INPUT);
  pinMode(A0, INPUT);
  pinMode(33, OUTPUT);
  pinMode(32, OUTPUT);
  pinMode(31, OUTPUT);
  pinMode(30, OUTPUT);
  pinMode(29, OUTPUT);
  pinMode(28, OUTPUT);
  pinMode(27, OUTPUT);
  pinMode(26, OUTPUT);
  for(int x=26;x<34;x++){
    digitalWrite(x, HIGH);
    delay(100);
  }
  IOShieldOled.begin();
  IOShieldOled.displayOn();
  IOShieldTemp.config(IOSHIELDTEMP_ONESHOT | IOSHIELDTEMP_RES12);
  digitalWrite(26, LOW);
  digitalWrite(27, LOW);
  digitalWrite(28, LOW);
  digitalWrite(29, LOW);
  digitalWrite(30, LOW);
  digitalWrite(31, LOW);
  digitalWrite(32, LOW);
  digitalWrite(33, LOW);

}

String getState(){//This is a function that returns the state of the slide switches,
  //The output is as following:
  //if slide 1 is up: 1..., if not: 0...
  //if slide 2 is up: .2.., if not: .0..
  //if slide 3 is up: ..3., if not: ..0.
  //if slide 4 is up: ...4, of not: ...0

  String output ="";
  if(digitalRead(35)){
    output+="1";
  }
  else{
    output+="0";
  }
  if(digitalRead(8)){
    output+="2";
  }
  else{
    output+="0";
  }
  if(digitalRead(7)){
    output+="3";
  }
  else{
    output+="0";
  }
  if(digitalRead(2)){
    output+="4";
  }
  else{
    output+="0";
  }
  return output;
}

int getAmount(){
  int output = 0;
  if(digitalRead(35)){
    output++;
  }
  if(digitalRead(7)){
    output++;
  }
  if(digitalRead(8)){
    output++;
  }
  if(digitalRead(2)){
    output++;
  }
  return output;
}

String getButtons(){
  //This is the same scheme as getState
  String output ="";
  if(String("0200")!=getState()){//If the slide isn't up or another order, the while loop should stop;
    return "asdf";//Doesn't matter what text here, but it can't be any possible output;
  }
  if(digitalRead(37)){
    output+="1";
  }
  else{
    output+="0";
  }
  if(digitalRead(36)){
    output+="2";
  }
  else{
    output+="0";
  }
  if(digitalRead(34)){
    output+="3";
  }
  else{
    output+="0";
  }
  if(digitalRead(4)){
    output+="4";
  }
  else{
    output+="0";
  }
  return output;
}
void loop(){
  while(String("0004") == getState()){//temperature
    float tempf, tempc;
    //This code is from some example, but yes, I know it is shit code;
    //Get Temperature in Celsius.
    tempc = IOShieldTemp.getTemp();

    // Convert the result to Fahrenheit.
    tempf = IOShieldTemp.convCtoF(tempc);

    //parse data for temperature in celcius
    tempC=tempc*100;
    dot_onesc = tempC%10;
    tempC = tempC/10;
    dot_tensc = tempC%10;
    tempC = tempC/10;
    onesc = tempC%10;
    tempC = tempC/10;
    tensc = tempC%10;

    //convert data to ASCII for temperature in celcius
    tensc = tensc+48;
    onesc = onesc+48;
    dot_tensc = dot_tensc+48;
    dot_onesc = dot_onesc+48;

    //parse data for temperature in Fahrenheit
    tempF=tempf*100;
    dot_onesf = tempF%10;
    tempF = tempF/10;
    dot_tensf = tempF%10;
    tempF = tempF/10;
    onesf = tempF%10;
    tempF = tempF/10;
    tensf = tempF%10;

    //convert data to ASCII for temperature in Fahrenheit
    tensf = tensf+48;
    onesf = onesf+48;
    dot_tensf = dot_tensf+48;
    dot_onesf = dot_onesf+48;

    //Clear the virtual buffer
    IOShieldOled.clearBuffer();

    //Draw a rectangle over wrting then slide the rectagle
    //down slowly displaying all writing
    IOShieldOled.clearBuffer();
    IOShieldOled.setCursor(0, 0);

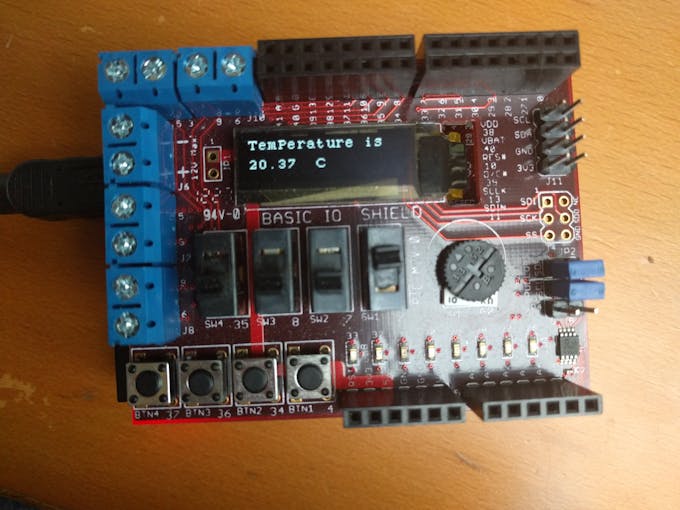

    IOShieldOled.putString("Temperature is");
    IOShieldOled.setCursor(0, 2);
    IOShieldOled.putChar(tensc);
    IOShieldOled.setCursor(1, 2);
    IOShieldOled.putChar(onesc);
    IOShieldOled.setCursor(2, 2);
    IOShieldOled.putString(".");
    IOShieldOled.setCursor(3, 2);
    IOShieldOled.putChar(dot_tensc);
    IOShieldOled.setCursor(4, 2);
    IOShieldOled.putChar(dot_onesc);
    IOShieldOled.setCursor(6, 2);
    IOShieldOled.putString(" C");


    delay(100);
  };
  z=0;
  while(String("0200") == getState()){ //buttongame
    if(String("0004")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("You are pressing the most right button");
      while(String("0004")==getButtons()){
      };
    };
    if(String("0030")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("You are pressing the middle right button");
      while(String("0030")==getButtons()){
      };
    };
    if(String("0200")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);

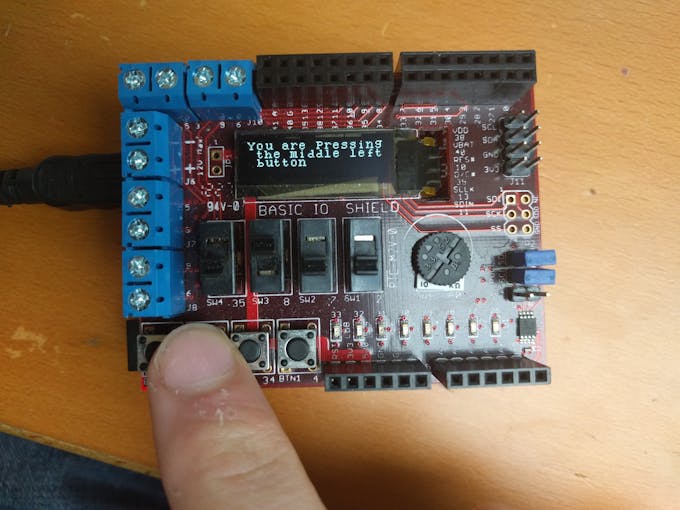

      IOShieldOled.putString("You are pressing the middle left button");
      while(String("0200")==getButtons()){
      };
    };
    if(String("1000")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("You are pressing the most left button");
      while(String("1000")==getButtons()){
      };
    };
    if(String("0230")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("You are pressing the middle buttons");
      while(String("0230")==getButtons()){
      };
    };
    if(String("1004")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("You are pressing the outer buttons");
      while(String("1004")==getButtons()){
      };
    };
    if(String("0000")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("Press one or two buttons..");
      while(String("0000")==getButtons()){
      };
    };

    if(String("1200")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("You are pressing the left buttons");
      while(String("1200")==getButtons()){
      };
    };
    if(String("0034")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("You are pressing the right buttons");
      while(String("0034")==getButtons()){
      };
    };
    if(String("1030")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("You are pressing buttons 1 & 3");
      while(String("1030")==getButtons()){
      };
    };
    if(String("0204")==getButtons()){
      IOShieldOled.clearBuffer();
      IOShieldOled.setCursor(0, 0);
      IOShieldOled.putString("You are pressing buttons 2 & 4");
      while(String("0204")==getButtons()){
      };
    };
  };

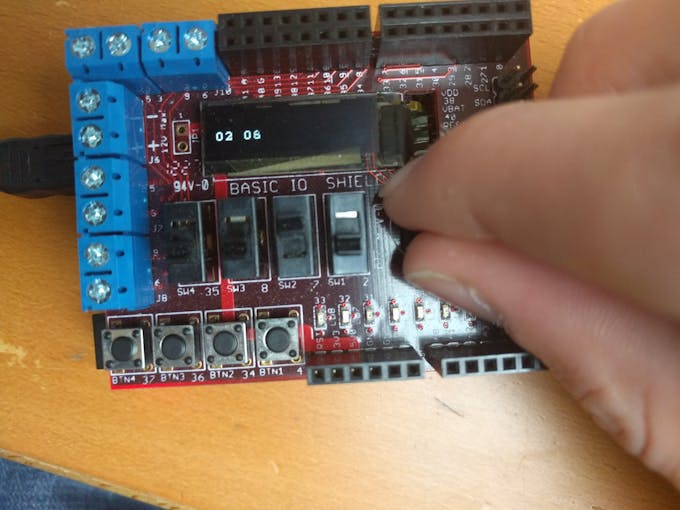

  while(String("0030") == getState()){//potentiometer
    z=analogRead(0);
    float tempf, tempc;
    tempc=z;
    //Im sorry for the random use of variables, need to change it maybe.
    //divide it into 4 digits
    tempC=tempc;
    dot_onesc = tempC%10;
    tempC = tempC/10;
    dot_tensc = tempC%10;
    tempC = tempC/10;
    onesc = tempC%10;
    tempC = tempC/10;
    tensc = tempC%10;

    //bad programming, but to change the number to a string, so you can print it on the oled display
    tensc = tensc+48;
    onesc = onesc+48;
    dot_tensc = dot_tensc+48;
    dot_onesc = dot_onesc+48;
    IOShieldOled.clearBuffer();
    IOShieldOled.setCursor(0, 2);
    IOShieldOled.putChar(tensc);
    IOShieldOled.setCursor(1, 2);
    IOShieldOled.putChar(onesc);
    IOShieldOled.setCursor(2, 2);
    IOShieldOled.putString("");
    IOShieldOled.setCursor(3, 2);
    IOShieldOled.putChar(dot_tensc);
    IOShieldOled.setCursor(4, 2);
    IOShieldOled.putChar(dot_onesc);
    IOShieldOled.setCursor(6, 2);
    IOShieldOled.putString(" ");
    delay(50);
  };
  while(String("1000") == getState()){//led with potentiometer
    z=analogRead(0);
    IOShieldOled.clearBuffer();
    IOShieldOled.setCursor(0, 0);

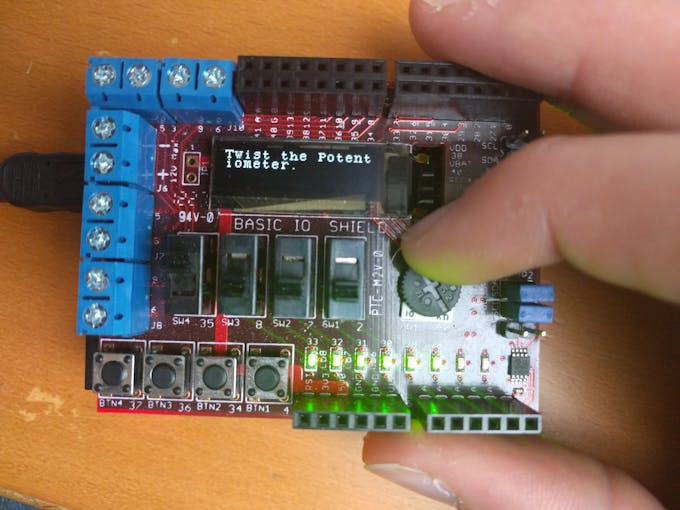

    IOShieldOled.putString("Twist the potentiometer.");
    //If the level is high enough, the lights go on
    //there is no break, and it should be in this order,
    // so if 8 leds should go on, it goes to case 8 and then goes through the other cases, because those leds should also light up
    switch(z/120){
    case 8:
      digitalWrite(26, HIGH);
    case 7:
      digitalWrite(27, HIGH);
    case 6:
      digitalWrite(28, HIGH);
    case 5:
      digitalWrite(29, HIGH);
    case 4:
      digitalWrite(30, HIGH);
    case 3:
      digitalWrite(31, HIGH);
    case 2:
      digitalWrite(32, HIGH);
    case 1:
      digitalWrite(33, HIGH);
      break;
    default: //Just to be sure, can't actually be more than 8, max = 8.5 =8, but for 0 this is used;
      break;
    }

    delay(100);//And then dim al the lights.
    //Not really good coding...
    digitalWrite(26,LOW );
    digitalWrite(27, LOW);
    digitalWrite(28, LOW);
    digitalWrite(29, LOW);
    digitalWrite(30, LOW);
    digitalWrite(31, LOW);
    digitalWrite(32, LOW);
    digitalWrite(33, LOW);

  };







  IOShieldOled.clearBuffer();
  if(getAmount()==0){    //If the amount of buttons up is 0, show the text:

    IOShieldOled.setCursor(0, 0);

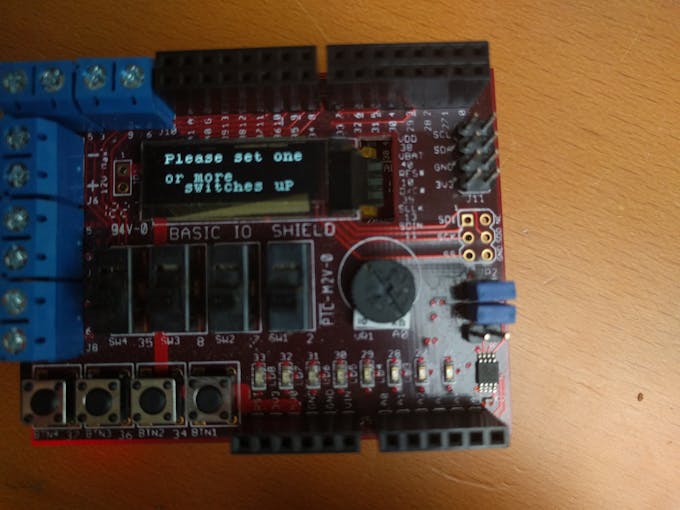

    IOShieldOled.putString(" Please set one");
    IOShieldOled.setCursor(0, 2);
    IOShieldOled.putString(" or more           switches up");
    while(getAmount()==0){
    };
  };

  if(getAmount()==2){  //amount ==1 can't be, because that is handeled by the functions before;
    IOShieldOled.clearBuffer();
    IOShieldOled.setCursor(0, 0);

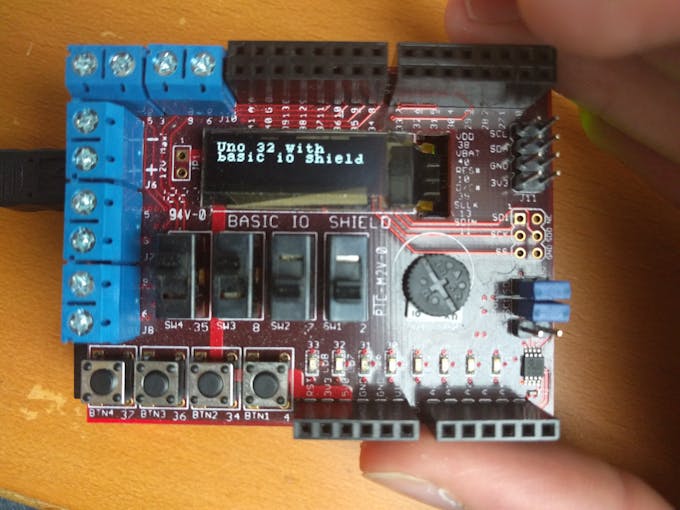

    IOShieldOled.putString("UC32 with     basic io shield");
    while(getAmount()==2){
    };
  };




  if(getAmount()==3){
    IOShieldOled.clearBuffer();
    IOShieldOled.setCursor(0, 0);
    IOShieldOled.putString("Hackster.io");
    while(getAmount()==3){
    };
  };



  if(getAmount()==4){
    IOShieldOled.clearBuffer();
    IOShieldOled.setCursor(0, 0);
    IOShieldOled.putString("Arend-Jan van   Hilten");
    IOShieldOled.setCursor(0, 2);
    IOShieldOled.putString("arend-jan.com");
    while(getAmount()==4){
    };
  };
}

Credits

Arend-Jan van Hilten

Labview, Arduino, Raspberry PI and other stuff for me!
