Attiny85/84 with Bluetooth

Attiny85/84 is very small and powerful chip from Atmel. In this tutorial we can add Bluetooth capabilities to this micro controller.

IntermediateProtip1 hour12,624
Attiny85/84 with Bluetooth

Things used in this project

Hardware components

Capacitor 10 µF
Capacitor 10 µF
×1
ATtiny85
Microchip ATtiny85
×1
Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
LED (generic)
LED (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×1

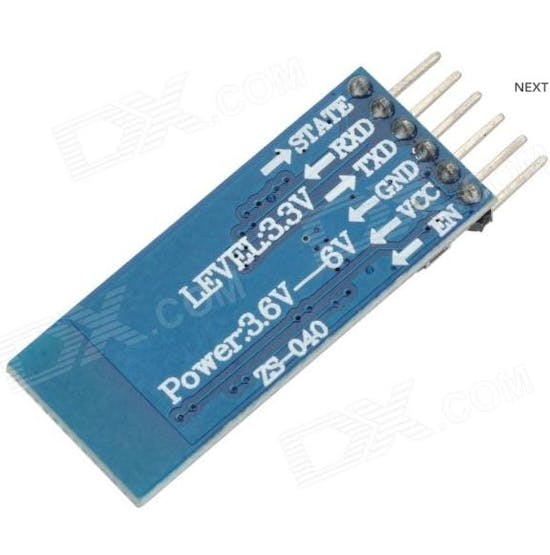

HC-05 Bluetooth Module
HC-05 Bluetooth Module
×1

Software apps and online services

Arduino IDE
Arduino IDE
MIT App Inventor 2
MIT App Inventor 2

Story

Read more

Custom parts and enclosures

Dime

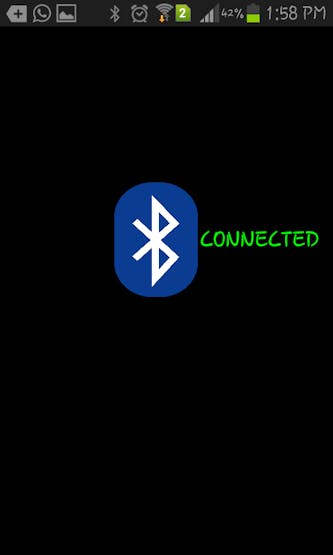

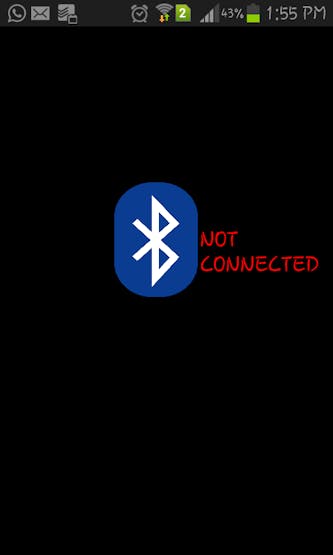

This is the apk file of the app featured in the tutorial.

Dime.aia

Schematics

ATtiny bluetooth connection

Programmer_for_ATtiny85_with_arduino (1).fzz

Dime

This the apk file of the app featured in the tutorial.

Code

Attiny Bluetooth program.

C/C++
#include <SoftwareSerial.h>  //Software Serial Port
#define RxD 1
#define TxD 2

#define DEBUG_ENABLED  1

SoftwareSerial blueToothSerial(RxD,TxD);

int led = 4;

void setup()
{
  pinMode(RxD, INPUT);
  pinMode(TxD, OUTPUT);
  setupBlueToothConnection();

  pinMode(led,OUTPUT);
  digitalWrite(led,HIGH);

}

void loop()
{ int count=0;
  char recvChar;
  while(1){
    //check if there's any data sent from the remote bluetooth shield
    if(blueToothSerial.available()){
      recvChar = blueToothSerial.read();
      count++ ;
        if(count%2==0)
          digitalWrite(led,HIGH);

        else
          digitalWrite(led,LOW);
    }
  }
}

void setupBlueToothConnection()
{
  blueToothSerial.begin(9600); //Set BluetoothBee BaudRate to default baud rate 38400
  blueToothSerial.print("\r\n+STWMOD=0\r\n"); //set the bluetooth work in slave mode
  blueToothSerial.print("\r\n+STNA=HC-05\r\n"); //set the bluetooth name as "HC-05"
  blueToothSerial.print("\r\n+STOAUT=1\r\n"); // Permit Paired device to connect me
  blueToothSerial.print("\r\n+STAUTO=0\r\n"); // Auto-connection should be forbidden here

  delay(2000); // This delay is required.
  //blueToothSerial.print("\r\n+INQ=1\r\n"); //make the slave bluetooth inquirable
  blueToothSerial.print("bluetooth connected!\n");

  delay(2000); // This delay is required.
  blueToothSerial.flush();
}
