Things used in this project

Hardware components:
A000066 iso both
Arduino UNO & Genuino UNO
×1
HC-06 Bluetooth Module
×1
1434509556 android phone color
Android phone
×1
VR Headset Google Cardboard
×1
11026 02
Jumper wires (generic)
×1
GY-521 MPU-6050 3 Axis Gyroscope + Accelerometer Module For Arduino
×1
Software apps and online services:
One cardboard
Google Developers Cardboard VR SDKs

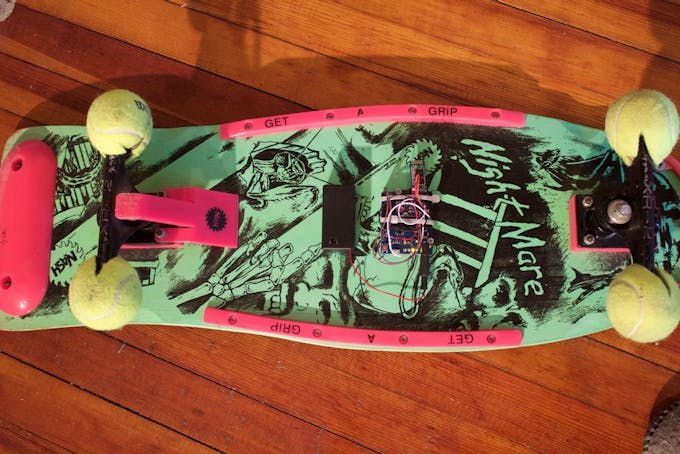

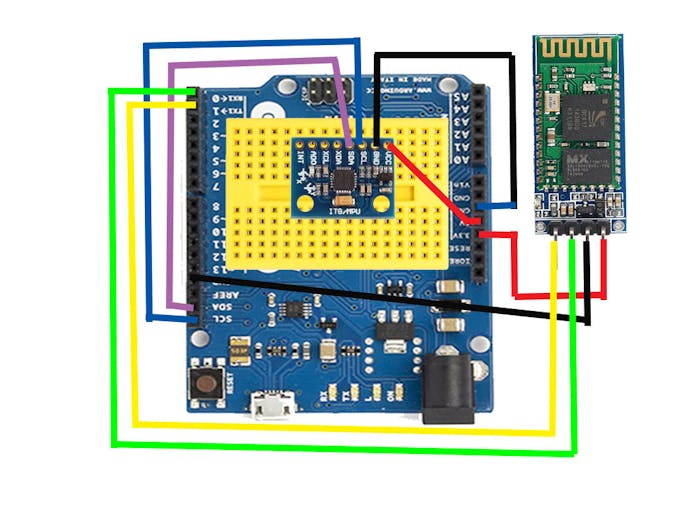

Schematics

Connections
Vrconnections

Code

Arduino CodeArduino
#include "I2Cdev.h"
#include "MPU6050_6Axis_MotionApps20.h"
#if I2CDEV_IMPLEMENTATION == I2CDEV_ARDUINO_WIRE
    #include "Wire.h"
#endif

MPU6050 mpu;


bool dmpReady = false;
uint8_t mpuIntStatus;
uint8_t devStatus;
uint16_t packetSize;
uint16_t fifoCount;
uint8_t fifoBuffer[64];


Quaternion q;
VectorInt16 aa;
VectorInt16 aaReal;
VectorInt16 aaWorld;
VectorFloat gravity;
float euler[3];
float ypr[3];
volatile bool mpuInterrupt = false;

void setup()
{
    #if I2CDEV_IMPLEMENTATION == I2CDEV_ARDUINO_WIRE
        Wire.begin();
        TWBR = 24;
    #elif I2CDEV_IMPLEMENTATION == I2CDEV_BUILTIN_FASTWIRE
        Fastwire::setup(400, true);
    #endif

    Serial.begin(9600);  //For use with Arduino Uno
    Serial1.begin(9600); //For use with Leonardo

    Serial.println(F("Initializing I2C devices..."));
    mpu.initialize();

    Serial.println(F("Testing device connections..."));
    Serial.println(mpu.testConnection() ? F("MPU6050 connection successful") : F("MPU6050 connection failed"));
    Serial.println(F("Initializing DMP..."));
    devStatus = mpu.dmpInitialize();

    mpu.setXGyroOffset(220);
    mpu.setYGyroOffset(76);
    mpu.setZGyroOffset(-85);
    mpu.setZAccelOffset(1788);
    if (devStatus == 0) {
        Serial.println(F("Enabling DMP..."));
        mpu.setDMPEnabled(true);
        Serial.println(F("Enabling interrupt detection (Arduino external interrupt 0)..."));
        attachInterrupt(0, dmpDataReady, RISING);
        mpuIntStatus = mpu.getIntStatus();
        Serial.println(F("DMP ready! Waiting for first interrupt..."));
        dmpReady = true;
        packetSize = mpu.dmpGetFIFOPacketSize();
    } else {
        Serial.print(F("DMP Initialization failed (code "));
        Serial.print(devStatus);
        Serial.println(F(")"));
    }

}

void sendData(int x, int y, int z)
{

    if(z < -10){
      //forward
      Serial1.write("f"); // Write to Leonardo
      Serial1.write(10);  //Stop Bit
      Serial.write("f");  // Write to Uno
      Serial.write(10);   //Stop bit
    } else if (z > 0){
      //backward
      Serial1.write("b");
      Serial1.write(10);
      Serial.write("b");
      Serial.write(10);
    } else if (y > 5){   //To make more sensitive change value to 4 or less
      //right
      Serial1.write("r");
      Serial1.write(10);
      Serial.write("r");
      Serial.write(10);
    } else if (y < -5){  //To make more sensitive change to -4 or greater
      //left
      Serial1.write("l");
      Serial1.write(10);
      Serial.write("l");
      Serial.write(10);
    } else
      //stop
      Serial1.write("s");
      Serial1.write(10);
      Serial.write("s");
      Serial.write(10);

}

void loop()
{

    if (!dmpReady) return;
    mpuInterrupt = false;
    mpuIntStatus = mpu.getIntStatus();
    fifoCount = mpu.getFIFOCount();
    if ((mpuIntStatus & 0x10) || fifoCount == 1024) {
        mpu.resetFIFO();
        Serial.println(F("FIFO Overflow"));

    } else if (mpuIntStatus & 0x02) {
        while (fifoCount < packetSize) {
          fifoCount = mpu.getFIFOCount();
        }
        mpu.getFIFOBytes(fifoBuffer, packetSize);
        fifoCount -= packetSize;
        mpu.dmpGetQuaternion(&q, fifoBuffer);
        mpu.dmpGetGravity(&gravity, &q);
        mpu.dmpGetYawPitchRoll(ypr, &q, &gravity);
        sendData(ypr[0] * 180/M_PI, ypr[1] * 180/M_PI, ypr[2] * 180/M_PI);
    }
}

void dmpDataReady()
{
    mpuInterrupt = true;
}
