Door Alarm

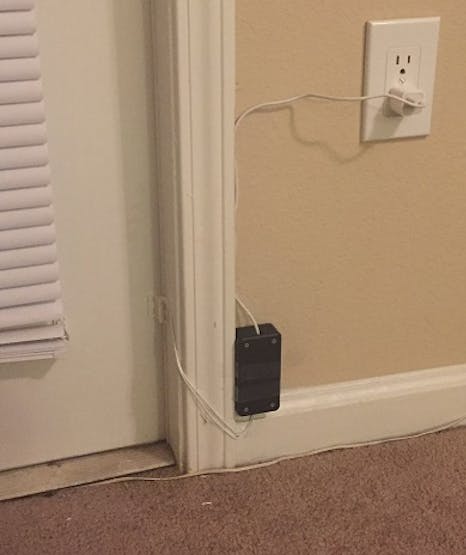

IOT System to monitor in real time the statues of a door

IntermediateShowcase (no instructions)12 hours206
Door Alarm

Things used in this project

Hardware components

Adafruit Magnetic Contact switch
×1

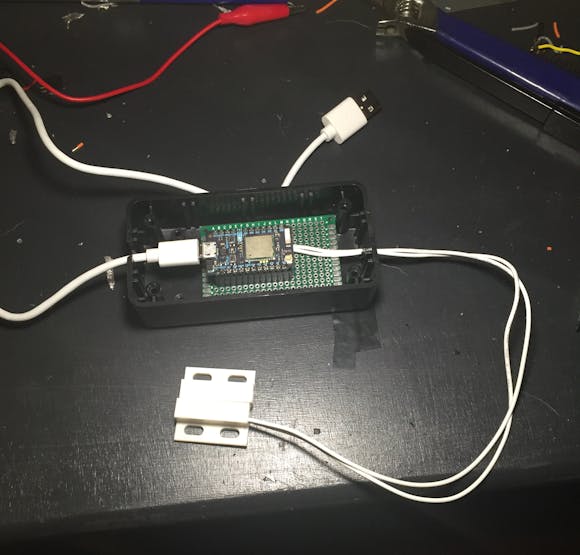

Photon
Particle Photon
×1
Amazon Web Services Prototype Board
×1
USB-A to Micro-USB Cable
USB-A to Micro-USB Cable
×1
Amazon Web Services Project Box
×1

Software apps and online services

Maker service

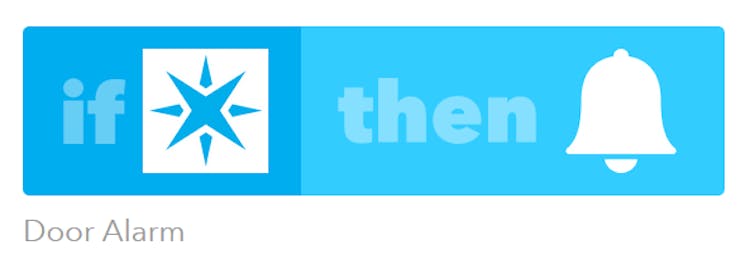

IFTTT Maker service

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

Circuit Diagram

Door%20alarm%202.2

Code

Door Alarm Code

Arduino
This was the code written in order to communicate the response of the magnetic sensor to the Particle Photon.
int DAP = D0;
int DAR = D1;
int boardLed = D7;

void setup() {

pinMode(DAP,OUTPUT);
pinMode(DAR,INPUT);

    digitalWrite(DAP,HIGH);

  digitalWrite(boardLed,HIGH);
  delay(100);
  digitalWrite(boardLed,LOW);
  delay(100);
  digitalWrite(boardLed,HIGH);
  delay(100);
  digitalWrite(boardLed,LOW);
  delay(100);
  digitalWrite(boardLed,HIGH);
  delay(100);
  digitalWrite(boardLed,LOW);

}

void loop() {

while (Particle.connected()){

if(digitalRead(DAR)==LOW){

Particle.publish("doorStatus","DOOR OPEN",60,PRIVATE);
delay(2000);
}
else{
    delay(400);
}
}
}
